AMD Ryzen™ 7-8845HS APU, Radeon780M , 2xHDMI, 2xUSB-C 4.0(DP), 2x2.5Gbit LAN, 24/7 permanent operation, incl. VESA
Description
Affordable AI-PC in Nano Format Powered by AMD Ryzen™ Zen 4 APUThe Shuttle XPC Barebone NA10H7, part of the XPC nano family, is powered by the AMD Ryzen™ 7-8845HS APU, featuring the cutting-edge Zen 4 microarchitecture. With 8 cores, 16 threads, and AMD Radeon™ 780M graphics, it delivers exceptional performance and is primed for AI-readiness.
The integrated Neural Processing Unit (NPU) achieves 16 TOPS of AI performance, while the combined NPU, CPU, and GPU offer a total of 39 TOPS, enabling demanding AI workloads. Supporting up to 64 GB of DDR5 memory, the NA10H7 also boasts a comprehensive array of I/O options, including four UHD graphics ports and two USB4 ports.
Designed as a cost-effective, high-performance solution for generative AI tasks, the NA10H7 excels in a variety of applications, such as content creation, gaming, entertainment, office work, commerce, and AIoT implementations. With its compact nano chassis and advanced connectivity features, it sets a new standard for affordable AI-PCs.
Specifications
| Processor |
|---|
| Thermal Design Power (TDP) |
45 W |
| L3 cache |
16 MB |
| Built-in processor |
Yes |
| Processor model |
8845HS |
| Processor boost frequency |
5.1 GHz |
| Processor threads |
16 |
| Processor frequency |
3.8 GHz |
| Processor cores |
8 |
| Processor family |
AMD Ryzen™ 7 |
| L2 cache |
8 MB |
| Processor manufacturer |
AMD |
| Processor generation |
AMD Ryzen 8000 Series |
| Memory |
|---|
| Memory voltage |
1.1 V |
| Memory slots type |
SO-DIMM |
| Number of memory slots |
2 |
| Memory channels |
Dual-channel |
| Supported memory types |
DDR5-SDRAM |
| Supported memory clock speeds |
5600 MHz |
| Maximum internal memory |
64 GB |
| Non-ECC |
Yes |
| Internal memory installed |
No |
| Video |
|---|
| On-board graphics card |
Yes |
| Graphics card family |
AMD |
| Storage |
|---|
| Supported storage drive types |
SSD |
| Storage drive sizes supported |
M.2 |
| Storage drive interface |
PCI Express |
| Compatible memory cards |
SD |
| Card reader integrated |
Yes |
| SSD form factor |
M.2 |
| NVMe |
Yes |
| Storage drives installed |
No |
| Graphics |
|---|
| Number of displays supported |
4 |
| On-board graphics card |
Yes |
| Graphics card family |
AMD |
| On-board graphics card model |
AMD Radeon 780M |
| Audio |
|---|
| Built-in speaker(s) |
No |
| Audio chip |
Realtek ALC269 |
| Network |
|---|
| Ethernet LAN |
Yes |
| Wi-Fi |
No |
| LAN controller |
Realtek RTL8125B |

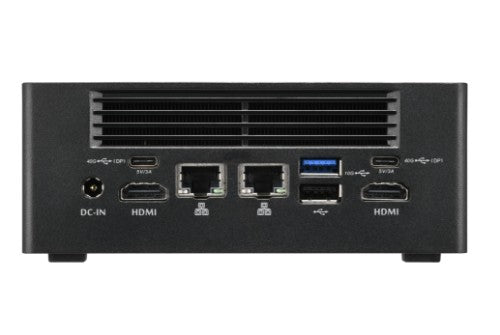

| Ports & interfaces |
|---|
| Combo headphone/mic port |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
5 |
| HDMI version |
2.0 |
| USB 2.0 ports quantity |
1 |
| HDMI ports quantity |
2 |
| Ethernet LAN (RJ-45) ports |
2 |
| USB4 Gen 2x2 ports quantity |
2 |
| Design |
|---|
| VESA mounting |
Yes |
| Product type |
Mini PC barebone |
| Housing material |
Plastic |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Panel mounting interface |
75 x 75,100 x 100 mm |
| LED indicators |
Power |
| Cooling type |
Active |
| Product colour |
Black |
| Chassis type |
1L sized PC |
| Performance |
|---|
| Windows operating systems supported |
Windows 11 x64 |
| Linux operating systems supported |
Yes |
| BIOS type |
UEFI AMI |
| Number of displays supported |
4 |
| Trusted Platform Module (TPM) version |
2.0 |
| Trusted Platform Module (TPM) |
Yes |
| Audio chip |
Realtek ALC269 |
| Harmonized System (HS) code |
84714900 |
| Colour |
|---|
| Product colour |
Black |
| Technical details |
|---|
| BIOS type |
UEFI AMI |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Panel mounting interface |
75 x 75,100 x 100 mm |
| Trusted Platform Module (TPM) version |
2.0 |
| Trusted Platform Module (TPM) |
Yes |
| Quick start guide |
Yes |
| Processor cores |
8 |
| Cooling type |
Active |
| Chassis type |
1L sized PC |
| Sustainability certificates |
ENERGY STAR, ErP |
| Compliance certificates |
BSMI, CB, CE, Federal Communications Commission (FCC), RoHS, cTUVus |
| Packaging data |
|---|
| Power cord included |
Yes |
| AC adapter included |
Yes |
| Package weight |
3.75 lbs (1.7 kg) |
| Indication |
|---|
| LED indicators |
Power |
| Software |
|---|
| Windows operating systems supported |
Windows 11 x64 |
| Linux operating systems supported |
Yes |
| Features |
|---|
| Number of displays supported |
4 |
| Logistics data |
|---|
| Harmonized System (HS) code |
84714900 |
| Sustainability |
|---|
| Sustainability certificates |
ENERGY STAR, ErP |
| Power |
|---|
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| AC adapter output voltage |
19 V |
| AC adapter output current |
6.32 A |
| Power supply type |
External AC adapter |
| Power supply |
120 W |
| Number of power supply units |
1 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
|---|
| Width |
5.2" (132 mm) |
| Depth |
5.63" (143 mm) |
| Height |
2.17" (55 mm) |
| Package weight |
3.75 lbs (1.7 kg) |
| Weight |
28.2 oz (800 g) |
| Packaging content |
|---|
| Power cord included |
Yes |
| AC adapter included |
Yes |
| Quick start guide |
Yes |
| Other features |
|---|
| Chassis type |
1L sized PC |
