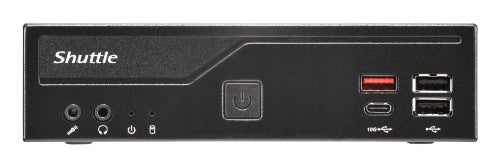

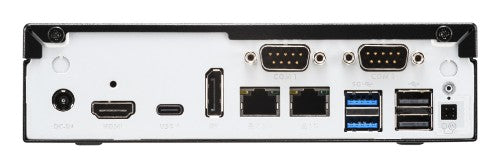

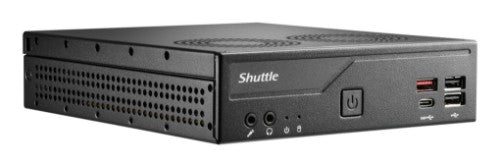

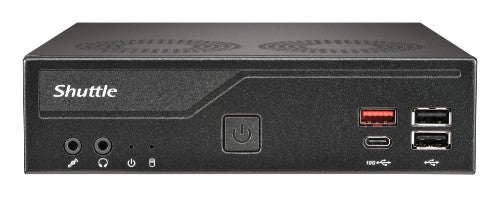

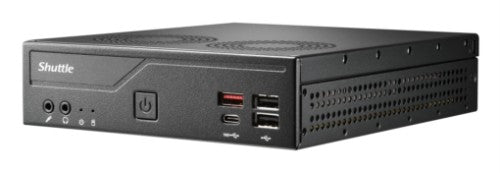

Slim PC DH810 , S1851, 1x HDMI (2.1), 1x DP, 1x USB-C (DP), 1x 2.5", 2x M.2, 2x LAN (Intel 1G + 2.5G), 2x COM, 24/7 permanent operation, incl. VESA
Key Features
- Socket LGA1851 supports Intel Core Ultra 200 series i9 / i7 / i5 processors
- Intel Arc graphics (4K/8K), supports 3 displays
- Supports 24/7 Nonstop Operation
- Up to 96GB DDR5 RAM
- 2x LAN , 8x USB
Description

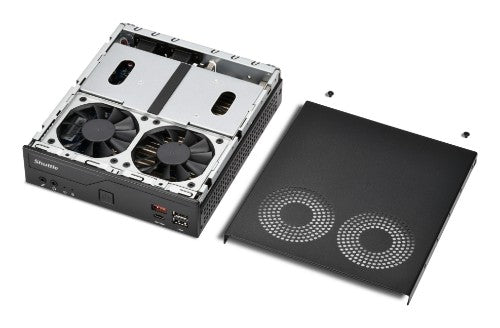

The Shuttle XPC slim Barebone DH810 is a robust 1.3-litre PC designed for powerful Intel Core Ultra 200 desktop processors (LGA1851 socket, “Arrow Lake-S”) with an integrated AI accelerator (NPU). Three independent display outputs – HDMI 2.1 supporting up to 8K/60 Hz, DisplayPort 1.4a, and USB-C with DisplayPort/USB4 – deliver stunning visuals for digital signage, entertainment, or office environments. Dual Intel LAN (2.5G + 1G), eight USB ports, two COM ports, and versatile storage options (M.2 PCIe 4.0 x4/SATA and 2.5" bay) provide maximum flexibility. Its slim metal chassis with VESA mount ensures reliable 24/7 operation at ambient temperatures up to 50 °C, making it ideal for demanding applications such as AI workloads, digital signage, POS/POI, gaming, healthcare, industry, and office.
Specifications
| Motherboard |
|---|
| Processor socket |
LGA 1851 (Socket V1) |
| Number of processors supported |
1 |
| Processor |
|---|
| Built-in processor |
No |
| Processor socket |
LGA 1851 (Socket V1) |
| Number of processors supported |
1 |
| Memory |
|---|
| Memory voltage |
1.1 V |
| Memory slots type |
SO-DIMM |
| Number of memory slots |
2 |
| Memory channels |
Dual-channel |
| ECC |
No |
| Supported memory types |
DDR5-SDRAM |
| Supported memory clock speeds |
5600 MHz |
| Maximum internal memory |
96 GB |
| Non-ECC |
Yes |
| Video |
|---|
| On-board graphics card |
Yes |
| Storage |
|---|
| Supported storage drive types |
HDD & SSD |
| Storage drive sizes supported |
2.5" |
| Storage drive interface |
M.2, PCI Express, Serial ATA |
| Number of storage drives supported |
2 |
| SSD form factor |
M.2 |
| NVMe |
Yes |
| Graphics |
|---|
| On-board graphics card |
Yes |
| Audio |
|---|
| Audio output channels |
2.0 channels |
| Built-in speaker(s) |
No |
| Audio chip |
Realtek ALC888S |
| Network |
|---|
| Ethernet LAN |
Yes |
| Wi-Fi |
No |
| LAN controller |
Intel® I219, Intel I226 |
| Ports & interfaces |
|---|
| DisplayPort version |
1.4a |
| DC-in jack |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| HDMI version |
2.1 |
| DisplayPorts quantity |
1 |
| VGA (D-Sub) ports quantity |
0 |
| USB 2.0 ports quantity |
4 |
| Serial ports quantity |
2 |
| Microphone in |
Yes |
| Headphone outputs |
1 |
| HDMI ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
2 |
| USB4 Gen 2x2 ports quantity |
1 |
| Design |
|---|
| VESA mounting |
Yes |
| Product type |
Mini PC barebone |
| Housing material |
Metal |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| LED indicators |
HDD, Power |
| Cooling type |
Active |
| Product colour |
Black |
| Chassis type |
1.35L sized PC |
| Performance |
|---|
| Windows operating systems supported |
Windows 11 |
| Linux operating systems supported |
Yes |
| BIOS type |
EFI AMI |
| Trusted Platform Module (TPM) version |
2.0 |
| Trusted Platform Module (TPM) |
Yes |
| Processor socket |
LGA 1851 (Socket V1) |
| Number of processors supported |
1 |
| Audio output channels |
2.0 channels |
| Audio chip |
Realtek ALC888S |
| Harmonized System (HS) code |
84733080 |
| Colour |
|---|
| Product colour |
Black |
| Technical details |
|---|
| BIOS type |
EFI AMI |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Trusted Platform Module (TPM) version |
2.0 |
| Trusted Platform Module (TPM) |
Yes |
| Quick start guide |
Yes |
| Cooling type |
Active |
| Chassis type |
1.35L sized PC |
| Sustainability certificates |
ENERGY STAR, ErP |
| Compliance certificates |
BSMI, CB, CE, ETL, Federal Communications Commission (FCC), RCM, RoHS, VCCI |
| Packaging data |
|---|
| Power cord included |
Yes |
| Drivers included |
Yes |
| AC adapter included |
Yes |
| Package weight |
4.63 lbs (2.1 kg) |
| Indication |
|---|
| LED indicators |
HDD, Power |
| Software |
|---|
| Windows operating systems supported |
Windows 11 |
| Linux operating systems supported |
Yes |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733080 |
| Sustainability |
|---|
| Sustainability certificates |
ENERGY STAR, ErP |
| Power |
|---|
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| AC adapter output voltage |
19 V |
| AC adapter output current |
6.32 A |
| Power supply type |
External AC adapter |
| Power supply |
120 W |
| Number of power supply units |
1 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 50 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
|---|
| Width |
6.5" (165 mm) |
| Depth |
7.48" (190 mm) |
| Height |
1.69" (43 mm) |
| Package weight |
4.63 lbs (2.1 kg) |
| Weight |
2.87 lbs (1.3 kg) |
| Packaging content |
|---|
| Power cord included |
Yes |
| Drivers included |
Yes |
| AC adapter included |
Yes |
| Quick start guide |
Yes |
| Other features |
|---|
| Chassis type |
1.35L sized PC |
