Intel Core Ultra 5 Processor 125H, 2 x SO-DIMM DDR5-5600 max. 64GB, M.2-2280M, Intel Arc graphics, 2 x 2.5G Ethernet LAN, 120W
Description

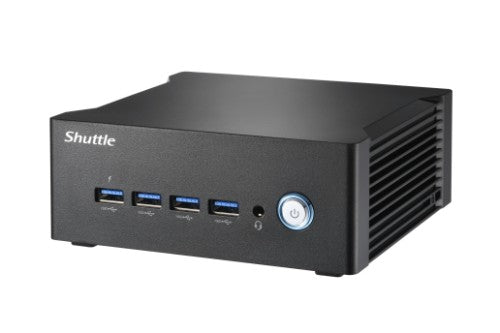

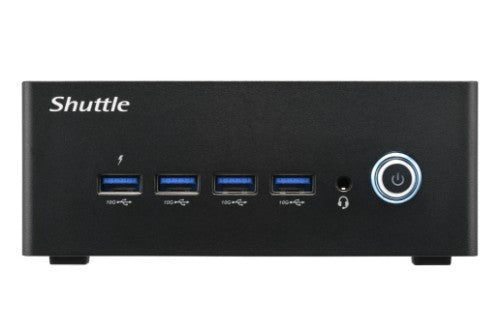

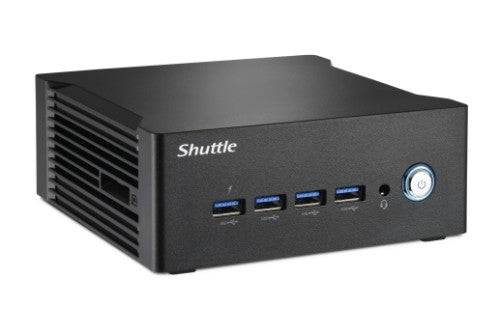

The Shuttle nano Barebone NT10H Series is designed as a compact, 1-litre nano-style mini-PC with enhanced features and efficiency for multitasking and AI workloads. Equipped with Intel® Core™ Ultra processors with integrated Intel® Arc™ graphics and AI Boost NPU, it effortlessly handles demanding graphics processing. It supports output to four 4K/UHD displays and offering comprehensive connectivity including dual USB4, dual 2.5G Intel® LAN, and PCIe 4.0 SSD slot. This powerhouse is ideal for gaming, AI inference, image processing, and multimedia content creation tasks, delivering powerful performance at an affordable price point, empowering both everyday tasks and professional projects with outstanding results.
Specifications
| Motherboard |
|---|
| Motherboard chipset |
Intel SoC |
| Processor |
|---|
| Built-in processor |
Yes |
| Processor model |
125H |
| Processor boost frequency |
4.5 GHz |
| Processor threads |
18 |
| Processor cores |
14 |
| Processor family |
Intel Core Ultra 5 |
| Motherboard chipset |
Intel SoC |
| Processor manufacturer |
Intel |
| Processor cache |
18 MB |
| Performance cores |
4 |
| Efficient cores |
8 |
| Performance-core Max Turbo Frequency |
4.5 GHz |
| Efficient-core Max Turbo Frequency |
3.6 GHz |
| Performance-core base frequency |
1.2 GHz |
| Efficient-core base frequency |
0.7 GHz |
| Low Power Efficient-core Max Turbo Frequency |
2.5 GHz |
| Low Power Efficient-core Base Frequency |
700 MHz |
| Processor generation |
Intel® Core™ Ultra (Series 1) |
| Memory |
|---|
| Memory voltage |
1.1 V |
| Memory slots type |
SO-DIMM |
| Number of memory slots |
2 |
| Memory channels |
Dual-channel |
| ECC |
No |
| Supported memory types |
DDR5-SDRAM |
| Supported memory clock speeds |
5600 MHz |
| Maximum internal memory |
64 GB |
| Non-ECC |
Yes |
| Internal memory installed |
No |
| Video |
|---|
| On-board graphics card |
Yes |
| Graphics card family |
Intel |
| Storage |
|---|
| Supported storage drive types |
SSD |
| Storage drive sizes supported |
M.2 |
| Storage drive interface |
PCI Express |
| Compatible memory cards |
SD |
| Card reader integrated |
Yes |
| SSD form factor |
M.2 |
| NVMe |
Yes |
| Storage drives installed |
No |
| Graphics |
|---|
| Maximum resolution |
3840 x 2160 pixels |
| Number of displays supported |
4 |
| On-board graphics card |
Yes |
| Graphics card family |
Intel |
| On-board graphics card model |
Intel Arc Graphics |
| Audio |
|---|
| Built-in speaker(s) |
No |
| Audio chip |
Realtek ALC269 |
| Network |
|---|
| Ethernet LAN |
Yes |
| Wi-Fi |
No |
| LAN controller |
Intel I226-V |

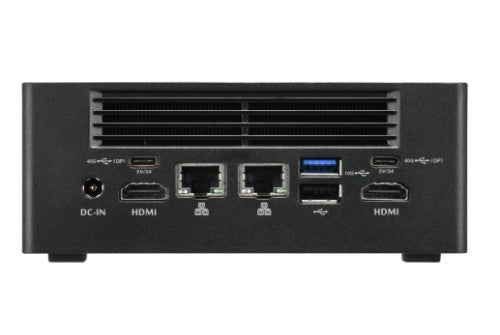

| Ports & interfaces |
|---|
| Combo headphone/mic port |
Yes |
| DC-in jack |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
5 |
| HDMI version |
2.0 |
| VGA (D-Sub) ports quantity |
0 |
| USB 2.0 ports quantity |
1 |
| HDMI ports quantity |
2 |
| Ethernet LAN (RJ-45) ports |
2 |
| USB4 Gen 2x2 ports quantity |
2 |
| Design |
|---|
| VESA mounting |
Yes |
| Product type |
Mini PC barebone |
| Housing material |
Plastic |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| On/off switch |
Yes |
| Panel mounting interface |
75 x 75,100 x 100 mm |
| Cooling type |
Active |
| Product colour |
Black |
| Chassis type |
1L sized PC |
| Performance |
|---|
| Maximum resolution |
3840 x 2160 pixels |
| Windows operating systems supported |
Windows 11 x64 |
| Linux operating systems supported |
Yes |
| BIOS type |
UEFI AMI |
| Number of displays supported |
4 |
| Trusted Platform Module (TPM) version |
2.0 |
| Trusted Platform Module (TPM) |
Yes |
| Motherboard chipset |
Intel SoC |
| Audio chip |
Realtek ALC269 |
| Harmonized System (HS) code |
84733080 |
| Processor special features |
|---|
| Low Power Efficient-core Max Turbo Frequency |
2.5 GHz |
| Low Power Efficient-core Base Frequency |
700 MHz |
| Colour |
|---|
| Product colour |
Black |
| Technical details |
|---|
| BIOS type |
UEFI AMI |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Panel mounting interface |
75 x 75,100 x 100 mm |
| Trusted Platform Module (TPM) version |
2.0 |
| Trusted Platform Module (TPM) |
Yes |
| Quick start guide |
Yes |
| Processor cores |
14 |
| Cooling type |
Active |
| Chassis type |
1L sized PC |
| Sustainability certificates |
ENERGY STAR, ErP |
| Compliance certificates |
BSMI, CE, Federal Communications Commission (FCC), RoHS, cTUVus |
| Packaging data |
|---|
| Power cord included |
Yes |
| AC adapter included |
Yes |
| Package weight |
3.75 lbs (1.7 kg) |
| Software |
|---|
| Windows operating systems supported |
Windows 11 x64 |
| Linux operating systems supported |
Yes |
| Management features |
|---|
| On/off switch |
Yes |
| Features |
|---|
| Number of displays supported |
4 |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733080 |
| Sustainability |
|---|
| Sustainability certificates |
ENERGY STAR, ErP |
| Power |
|---|
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| AC adapter output voltage |
19 V |
| AC adapter output current |
6.32 A |
| Power supply type |
External AC adapter |
| Power supply |
120 W |
| Number of power supply units |
1 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
|---|
| Width |
5.2" (132 mm) |
| Depth |
5.63" (143 mm) |
| Height |
2.17" (55 mm) |
| Package weight |
3.75 lbs (1.7 kg) |
| Weight |
28.2 oz (800 g) |
| Packaging content |
|---|
| Power cord included |
Yes |
| AC adapter included |
Yes |
| Quick start guide |
Yes |
| Other features |
|---|
| Chassis type |
1L sized PC |
