Intel Processor N100, 1 x SO-DIMM DDR4-3200 1.2V max. 16 GB, M.2-2280, M.2-2230, Gigabit LAN, 65W
Key Features
- Compact - 135 x 115 x 39 mm
- Intel N 100 processor
- Fanless
- 24/7 continuous operation
Description

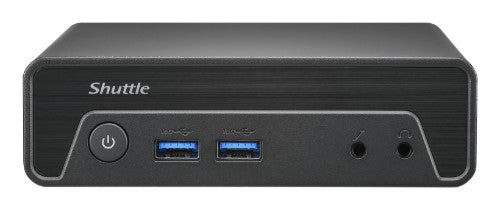

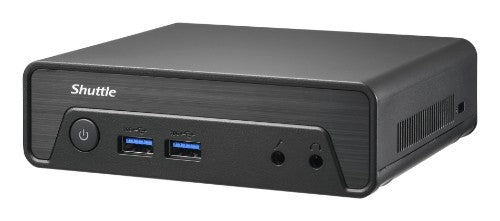

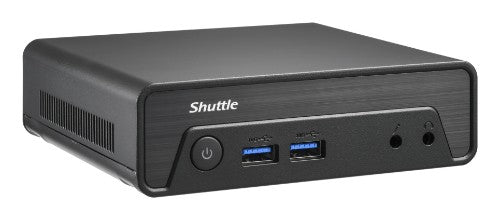

The fanless Shuttle XPC nano Barebone NE10N comes with powerful and efficient 12th generation Intel N100 processor, codenamed "Alder Lake-N". Despite the nano format with only 600 ml volume, it offers enormous connection variety and expansion options. Thus, up to two UHD displays (4K/60Hz) and up to six USB devices can be connected, and one M.2-2280 NVMe SSD card and one DDR4 module can be installed. The NE10N is ideal for Digital Signage, POS, control, office or even multimedia.
Specifications
| Motherboard |
|---|
| Number of processors supported |
1 |
| Motherboard chipset |
Intel SoC |
| Processor |
|---|
| Built-in processor |
Yes |
| Processor model |
N100 |
| Processor boost frequency |
3.4 GHz |
| Processor threads |
4 |
| Processor cores |
4 |
| Number of processors supported |
1 |
| Motherboard chipset |
Intel SoC |
| Processor manufacturer |
Intel |
| Processor cache |
6 MB |

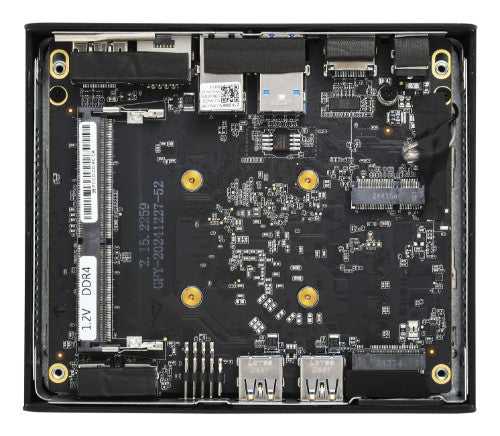

| Memory |
|---|
| Memory voltage |
1.2 V |
| Memory slots type |
SO-DIMM |
| Number of memory slots |
1 |
| Memory channels |
Single-channel |
| ECC |
No |
| Supported memory types |
DDR4-SDRAM |
| Supported memory clock speeds |
3200 MHz |
| Maximum internal memory |
16 GB |
| Non-ECC |
Yes |
| Video |
|---|
| On-board graphics card |
Yes |
| Graphics card family |
Intel |
| Storage |
|---|
| Supported storage drive types |
SSD |
| Storage drive sizes supported |
M.2 |
| Storage drive interface |
PCI Express, Serial ATA |
| Card reader integrated |
No |
| SSD form factor |
M.2 |
| Graphics |
|---|
| On-board graphics card |
Yes |
| Graphics card family |
Intel |
| On-board graphics card model |
Intel® UHD Graphics |
| Audio |
|---|
| Built-in speaker(s) |
No |
| Audio chip |
Senary SN6141 |
| Network |
|---|
| Ethernet LAN |
Yes |
| Wi-Fi |
No |

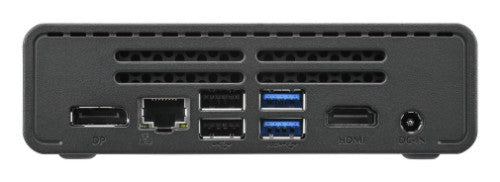

| Ports & interfaces |
|---|
| DisplayPort version |
1.4 |
| DC-in jack |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
4 |
| HDMI version |
2.0 |
| DisplayPorts quantity |
1 |
| VGA (D-Sub) ports quantity |
0 |
| USB 2.0 ports quantity |
2 |
| Microphone in |
Yes |
| Headphone outputs |
1 |
| HDMI ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| Design |
|---|
| VESA mounting |
Yes |
| Product type |
Mini PC barebone |
| Housing material |
Plastic |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Panel mounting interface |
75 x 75,100 x 100 mm |
| LED indicators |
Yes |
| Cooling type |
Passive |
| Product colour |
Black |
| Chassis type |
0.6L sized PC |
| Performance |
|---|
| Windows operating systems supported |
Windows 11 |
| Linux operating systems supported |
Yes |
| BIOS type |
EFI AMI |
| Trusted Platform Module (TPM) version |
2.0 |
| Trusted Platform Module (TPM) |
Yes |
| Number of processors supported |
1 |
| Motherboard chipset |
Intel SoC |
| Audio chip |
Senary SN6141 |
| Harmonized System (HS) code |
84733080 |
| Colour |
|---|
| Product colour |
Black |
| Technical details |
|---|
| BIOS type |
EFI AMI |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Panel mounting interface |
75 x 75,100 x 100 mm |
| Trusted Platform Module (TPM) version |
2.0 |
| Trusted Platform Module (TPM) |
Yes |
| Quick start guide |
Yes |
| Processor cores |
4 |
| Cooling type |
Passive |
| Chassis type |
0.6L sized PC |
| Sustainability certificates |
ENERGY STAR, ErP |
| Compliance certificates |
BSMI, CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA, VCCI |
| Packaging data |
|---|
| Power cord included |
Yes |
| Drivers included |
Yes |
| AC adapter included |
Yes |
| Package weight |
3.31 lbs (1.5 kg) |
| Indication |
|---|
| LED indicators |
Yes |
| Software |
|---|
| Windows operating systems supported |
Windows 11 |
| Linux operating systems supported |
Yes |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733080 |
| Sustainability |
|---|
| Sustainability certificates |
ENERGY STAR, ErP |
| Power |
|---|
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| AC adapter output voltage |
19 V |
| AC adapter output current |
3.42 A |
| Power supply type |
External AC adapter |
| Power supply |
65 W |
| Number of power supply units |
1 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
|---|
| Width |
5.31" (135 mm) |
| Depth |
4.53" (115 mm) |
| Height |
1.54" (39 mm) |
| Package weight |
3.31 lbs (1.5 kg) |
| Weight |
21.2 oz (600 g) |
| Packaging content |
|---|
| Power cord included |
Yes |
| Drivers included |
Yes |
| AC adapter included |
Yes |
| Quick start guide |
Yes |
| Other features |
|---|
| Chassis type |
0.6L sized PC |
