86", DLED 3840 x 2160, 500nits, 60 Hz, WI-FI 2.4/5.0GHz, Bluetooth 5.1, IP5X, 1926.6 x 1095.5 x 64.2mm, 38.2 kg
Description
Hisense Digital Signage is designed to serve multiple business applications: public spaces, transportation systems, museums, stadiums, retail stores, hotels, restaurants and corporate buildings. With DM series, it delivers powerful engagement from any devices, boost business with real-time updates, data-driven insights and visually appealing content, manage and control devices at anytime from anywhere, and simplify the cable management by conecting a series of displays to a single video output.
Smart PowerA built-in ambient light sensor automatically adjusts the screen brightness according to current light conditions. This display is Energy Star certified to help you protect the environment and save costs.
Wireless Screen SharingEverthing you need for screen sharing solutions. ScreenShare is a in house built-in screen sharing application that enables the screen sharing wirelessly and seemlessly from anywhere and from any devices.
Mobile Device ManagementVisionInfo is a cloud-based device managemet software that offers end-to-end device management and control through all devices. It is a powerful, effective and easy to use tool to control your devices at anytime from anywhere.
Conformal CoatingElectronic components are completely protected from the environmental factors like moisture, dust, salt, chemicals, temperature changes and mechanical abrasion.
Clean Cable SolutionThe integrated cable holder hides cables and keeps the back of the display tidy and uncluttered. This reduces visual distractions that can get in the way of your viewing experience.
Anti-glare CoatingAll displays offer higher haze panels that help reduce reflections without adversley affecting the image quality. Anti-glare coatings can also improve the perceived contrast of the display.
Narrow BezelWith a narrow bezel and symmetrical design, the display can be easily integrated into any environment. All terminals face outwards, ensuring the display hangs flush against the wall which saves space and facilitates installation.
Android 11Android 11 works to keep your data safe and secure. With Android 11, you have more control over what information apps can and can’t access. Devices that work better together, enhance your messaging, audio and multitasking experiences.
Specifications
| Display |
|---|
| LED backlight |
Yes |
| Display number of colours |
1.073 billion colors |
| LED backlighting type |
Direct-LED |
| Display diagonal |
86" |
| Display resolution |
3840 x 2160 pixels |
| Display brightness |
500 cd/m² |
| HD type |
Full HD |
| Response time |
8 ms |
| Contrast ratio (typical) |
1200:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Display diagonal (metric) |
43" (109.2 cm) |
| Panel life |
50000 h |
| Native aspect ratio |
16:9 |
| Number of displays |
1 |
| Native refresh rate |
60 Hz |
| Haze rate |
25% |
| RGB colour space |
NTSC |
| Ports & interfaces |
|---|
| USB connector type |
USB Type-A |
| DisplayPort version |
1.2 |
| USB port |
Yes |
| DisplayPorts in |
1 |
| HDMI version |
2.0 |
| Number of speaker outputs |
1 |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi |
Yes |
| DisplayPorts quantity |
1 |
| Ethernet LAN |
Yes |
| HDMI ports quantity |
3 |
| Ethernet LAN (RJ-45) ports |
1 |
| RS-232 interface |
Yes |
| USB version |
2.0/3.2 Gen 1 (3.1 Gen 1) |
| USB ports quantity |
2 |
| HDMI input ports quantity |
2 |
| HDMI output ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| Audio |
|---|
| Number of built-in speakers |
2 |
| RMS rated power |
20 W |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Product design |
Digital A-board |
| Placement supported |
Indoor/outdoor |
| Orientation |
Horizontal/Vertical |
| Product colour |
Black |
| Panel mounting interface |
600 x 400 mm |
| VESA mounting |
Yes |
| Mounting type |
Wall |
| Screen shape |
Flat |
| Wall mountable |
Yes |
| Performance |
|---|
| Purpose |
Commercial |
| Operating hours (hours/days) |
24/7 |
| International Protection (IP) code |
IPX5 |
| Automatic brightness control |
Yes |
| Wi-Fi Direct |
Yes |
| Browsing |
Yes |
| Wi-Fi |
Yes |
| Panel life |
50000 h |
| Power |
|---|
| Power consumption (max) |
325 W |
| Power consumption (typical) |
200 W |
| Power consumption (standby) |
0.3 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Energy efficiency class (SDR) |
G |
| Energy efficiency class (HDR) |
G |
| Computer system |
|---|
| Computer system |
Yes |
| Processor family |
ARM Cortex |
| Processor model |
A55 |
| Operating system installed |
Android 11 |
| Internal storage capacity |
32 GB |
| Processor manufacturer |
ARM |
| Processor architecture |
ARM Cortex-A55 |

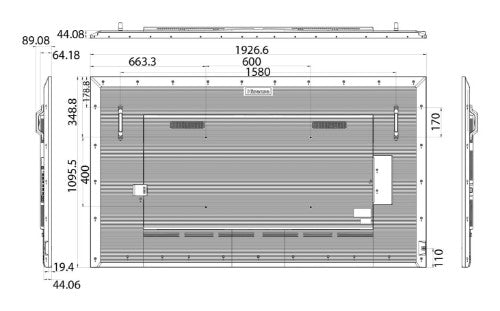

| Weight & dimensions |
|---|
| Display width |
75.9" (1926.6 mm) |
| Display depth |
2.53" (64.2 mm) |
| Display height |
43.1" (1095.5 mm) |
| Display weight |
84.2 lbs (38.2 kg) |
| Packaging data |
|---|
| Package width |
83.3" (2117 mm) |
| Package depth |
10.6" (269 mm) |
| Package height |
51.1" (1298 mm) |
| Package weight |
131.2 lbs (59.5 kg) |
| Quick start guide |
Yes |
| Batteries included |
Yes |
| Remote control included |
Yes |
| Manual |
Yes |
| Cables included |
AC |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Batteries included |
Yes |
| Remote control included |
Yes |
| Manual |
Yes |
| Cables included |
AC |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 80% |
| Technical details |
|---|
| VESA mounting |
Yes |
| USB connector type |
USB Type-A |
| Power supply type |
Internal |
| DisplayPort version |
1.2 |
| DisplayPorts in |
1 |
| LED backlighting type |
Direct-LED |
| Compliance certificates |
CCC, CE, Federal Communications Commission (FCC), UKCA, cTUVus |
| Network |
|---|
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi |
Yes |
| Ethernet LAN |
Yes |
| Thin Client |
|---|
| Processor family |
ARM Cortex |
| Processor model |
A55 |
| Operating system installed |
Android 11 |
| Internal storage capacity |
32 GB |
| Features |
|---|
| Suitable for indoor use |
Yes |
| Suitable for outdoor use |
Yes |
| Wall mountable |
Yes |
| Other features |
|---|
| USB connector type |
USB Type-A |
| Power supply type |
Internal |
| DisplayPort version |
1.2 |
| DisplayPorts in |
1 |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi |
Yes |
| Quick start guide |
Yes |
| Power consumption (max) |
325 W |
| Bluetooth |
Yes |
| Manual |
Yes |
