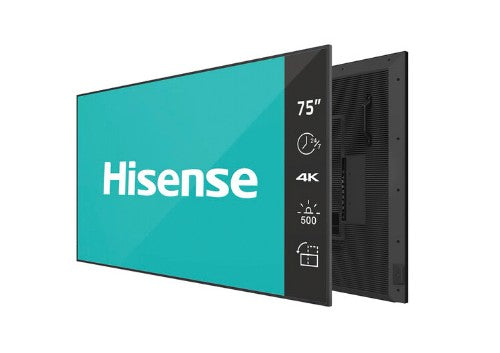

75” 4K UHD Digital Signage Display - 24/7 Operation
Description
Hisense Digital Signage is designed to serve multiple business applications: public spaces, transportation systems, museums, stadiums, retail stores, hotels, restaurants and corporate buildings. With DM series, it delivers powerful engagement from any devices, boost business with real-time updates, data-driven insights and visually appealing content, manage and control devices at anytime from anywhere, and simplify the cable management by conecting a series of displays to a single video output.
Smart PowerA built-in ambient light sensor automatically adjusts the screen brightness according to current light conditions. This display is Energy Star certified to help you protect the environment and save costs.
Wireless Screen SharingEverthing you need for screen sharing solutions. ScreenShare is a in house built-in screen sharing application that enables the screen sharing wirelessly and seemlessly from anywhere and from any devices.
Mobile Device ManagementVisionInfo is a cloud-based device managemet software that offers end-to-end device management and control through all devices. It is a powerful, effective and easy to use tool to control your devices at anytime from anywhere.
Conformal CoatingElectronic components are completely protected from the environmental factors like moisture, dust, salt, chemicals, temperature changes and mechanical abrasion.
Clean Cable SolutionThe integrated cable holder hides cables and keeps the back of the display tidy and uncluttered. This reduces visual distractions that can get in the way of your viewing experience.
Anti-glare CoatingAll displays offer higher haze panels that help reduce reflections without adversley affecting the image quality. Anti-glare coatings can also improve the perceived contrast of the display.
Narrow BezelWith a narrow bezel and symmetrical design, the display can be easily integrated into any environment. All terminals face outwards, ensuring the display hangs flush against the wall which saves space and facilitates installation.
Android 11Android 11 works to keep your data safe and secure. With Android 11, you have more control over what information apps can and can’t access. Devices that work better together, enhance your messaging, audio and multitasking experiences.
Quick Installation and Easy MaintenanceFull front installation, maintenance, save the installation space. Also supporting multiple installations, wall-mounting, hanging, which can meet the demands of various environments.
Specifications
| Display |
|---|
| Panel type |
ADS |
| LED backlighting type |
Direct-LED |
| Display technology |
LED |
| Display diagonal |
75" |
| Display resolution |
3840 x 2160 pixels |
| Display brightness |
500 cd/m² |
| HD type |
4K Ultra HD |
| Response time |
8 ms |
| Contrast ratio (typical) |
1200:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Display diagonal (metric) |
74.4" (189 cm) |
| Native aspect ratio |
16:9 |
| Rated lifetime |
50000 h |
| Native refresh rate |
60 Hz |
| Haze rate |
25% |
| Ports & interfaces |
|---|
| USB connector type |
USB Type-A |
| USB port |
Yes |
| DisplayPorts in |
1 |
| HDMI version |
2.0 |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi |
Yes |
| DisplayPorts quantity |
1 |
| Ethernet LAN |
Yes |
| HDMI ports quantity |
3 |
| Ethernet LAN (RJ-45) ports |
1 |
| RS-232 interface |
Yes |
| USB version |
2.0/3.2 Gen 1 (3.1 Gen 1) |
| USB ports quantity |
2 |
| HDMI input ports quantity |
2 |
| HDMI output ports quantity |
1 |
| USB 2.0 Type-B ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| Audio |
|---|
| Number of built-in speakers |
2 |
| RMS rated power |
20 W |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Orientation |
Horizontal/Vertical |
| Product colour |
Black |
| Panel mounting interface |
600 x 400 mm |
| Certification |
CCC/CB/CE/FCC/cTUVus/UKCA/CEC/ERP |
| VESA mounting |
Yes |
| Screen shape |
Flat |
| Performance |
|---|
| Purpose |
Commercial |
| Operating hours (hours/days) |
24/7 |
| International Protection (IP) code |
IP5X |
| On Screen Display (OSD) languages |
Arabic, Simplified Chinese, German, English, Spanish, French, Indonesian, Italian, Norwegian, Polish, Russian, Swedish, Thai |
| Wi-Fi |
Yes |
| Power |
|---|
| Power consumption (max) |
265 W |
| Power consumption (typical) |
175 W |
| Power consumption (standby) |
0.2 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Energy efficiency scale |
A to G |
| Energy efficiency class (SDR) |
G |
| Energy efficiency class (HDR) |
G |
| Energy consumption (SDR) per 1000 hours |
254 kWh |
| Energy consumption (HDR) per 1000 hours |
254 kWh |
| Computer system |
|---|
| Processor cores |
4 |
| Processor family |
ARM Cortex |
| Operating system installed |
Android 11 |
| Internal memory |
3 GB |
| Internal storage capacity |
32 GB |
| Processor manufacturer |
ARM |
| Built-in processor |
Yes |
| On-board graphics card model |
ARM Mali-G52 |
| Processor architecture |
ARM Cortex-A55 |
| Weight & dimensions |
|---|
| Display width |
66" (1675.3 mm) |
| Display depth |
2.51" (63.7 mm) |
| Display height |
37.6" (955.1 mm) |
| Display weight |
63.9 lbs (29 kg) |
| Packaging data |
|---|
| Package width |
72.8" (1850 mm) |
| Package depth |
8.31" (211 mm) |
| Package height |
45.3" (1150 mm) |
| Package weight |
91.7 lbs (41.6 kg) |
| Batteries included |
Yes |
| Remote control included |
Yes |
| Cables included |
RS-232 |
| Packaging content |
|---|
| Batteries included |
Yes |
| Remote control included |
Yes |
| Cables included |
RS-232 |
| Power adapter included |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 80% |
| Certificates |
|---|
| Certification |
CCC/CB/CE/FCC/cTUVus/UKCA/CEC/ERP |
| Technical details |
|---|
| VESA mounting |
Yes |
| USB connector type |
USB Type-A |
| Power supply type |
Internal |
| Panel type |
ADS |
| DisplayPorts in |
1 |
| LED backlighting type |
Direct-LED |
| Sustainability certificates |
ENERGY STAR |
| Network |
|---|
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi |
Yes |
| Ethernet LAN |
Yes |
| Thin Client |
|---|
| Processor family |
ARM Cortex |
| Operating system installed |
Android 11 |
| Internal memory |
3 GB |
| Internal storage capacity |
32 GB |
| Other features |
|---|
| USB connector type |
USB Type-A |
| Power supply type |
Internal |
| Panel type |
ADS |
| DisplayPorts in |
1 |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi |
Yes |
| Power consumption (max) |
265 W |
| Display technology |
LED |
| Energy efficiency scale |
A to G |
