55", 3840 x 2160 (UHD), 500nit, 8m (G to G), 16:9, 60Hz, 1,200:1 (Typ), BT709 95%, 10bit(D), 1.07Billion colors, 24/7, HDMI/RS232C/IR IN/Audio Out/RJ45/USB, 1240.1 x 711.9 x 29.7mm, 14.3 kg
Description
UHD Signage Display with LG webOS Platform and Advanced SecuritySuperb Picture Quality with Ultra HD ResolutionWith the resolution of UHD, it makes the colors and details of the content vivid and realistic. In addition, the wide viewing angle provides clear content.
Even & Slim Bezel DesignThe UH5Q series features perfectly balanced horizontal and vertical slim bezels, creating a visually harmonious display solution. Its specialized design simplifies installation in retail environments while delivering a truly immersive viewing experience.
Convenient webOS PlatformThe UH5Q is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, and includes webOS partner apps to create an SI-friendly environment.
* SoC : System On Chip
** SI : System Integrator

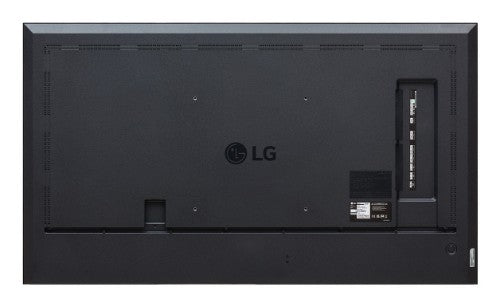

Design for Space UtilizationDesigned with thin bezels and simple cable management, the UH5Q saves space. With specialized hidden power inlets, it can be installed close to the wall, leaving only about 13.5 mm of space with the slim bracket.
* The product image will differ slightly from the actual appearance of the product due to the variance caused by each inch option.
Durability that Provides ReliabilityOptimized for business environments, the UH5Q is protected against salt, dust, iron powder and humidity thanks to conformal partial coating on power board, allowing for stable operation. Also, its customer-centric features, such as IP5x and Shock Monitoring*, provide both reliability and satisfaction.
* When a physical impact occurs on the product, an alert is provided to the administrator through the media controller.
Comprehensive SecuritywebOS Signage goes beyond security measures at the operating system (OS) level. LG Shield employs a five-tiered defense system, encompassing server, application, operating system, system, and hardware. Each layer operates independently, providing comprehensive protection against various threats. Also webOS platform support ETSI EN 303 645.
SuperSign SolutionsSuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.
* SuperSign must be purchased separately.
Specifications
| Display |
|---|
| LED backlight |
Yes |
| Display number of colours |
1.07 billion colors |
| Panel type |
ADS |
| LED backlighting type |
Edge-LED |
| Touchscreen |
No |
| Display technology |
LCD |
| Colour gamut |
95% |
| Display diagonal |
55" |
| Display resolution |
3840 x 2160 pixels |
| Display brightness |
500 cd/m² |
| HD type |
4K Ultra HD |
| Response time |
8 ms |
| Contrast ratio (typical) |
1200:1 |
| Contrast ratio (dynamic) |
1000000:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Panel life |
50000 h |
| Native aspect ratio |
16:9 |
| Colour depth |
10 bit |
| Native refresh rate |
60 Hz |
| Ports & interfaces |
|---|
| USB connector type |
USB Type-A |
| Remote (IR) input |
1 |
| USB port |
Yes |
| DisplayPorts in |
1 |
| RS-232C |
Yes |
| Wi-Fi |
Yes |
| PC Audio out |
Yes |
| DisplayPorts quantity |
1 |
| Ethernet LAN |
Yes |
| HDMI ports quantity |
3 |
| DVI port |
No |
| Ethernet LAN (RJ-45) ports |
1 |
| USB version |
2.0 |
| USB ports quantity |
2 |
| HDMI input ports quantity |
3 |
| Audio |
|---|
| Number of built-in speakers |
2 |
| RMS rated power |
20 W |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Product design |
Digital signage flat panel |
| Placement supported |
Indoor |
| Orientation |
Horizontal/Vertical |
| Product colour |
Black |
| Panel mounting interface |
300 x 300 mm |
| Certification |
CB / NRTL / FCC Class "B" / CE / KC |
| VESA mounting |
Yes |
| Bezel colour |
Black |
| Performance |
|---|
| Purpose |
Universal |
| Operating hours (hours/days) |
24/7 |
| International Protection (IP) code |
IP5X |
| Picture-in-Picture |
Yes |
| Smart modes |
Energy saving |
| On Screen Display (OSD) |
Yes |
| Number of OSD languages |
21 |
| HDCP |
Yes |
| Automatic brightness control |
Yes |
| Plug and Play |
Yes |
| HDCP version |
1.4/2.2 |
| Security algorithms |
SNMP |
| Wi-Fi |
Yes |
| Panel life |
50000 h |
| Power |
|---|
| Heat dissipation |
351 BTU/h |
| Power consumption (off) |
0.5 W |
| Power consumption (max) |
154 W |
| Power consumption (typical) |
130 W |
| Power consumption (standby) |
0.5 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Energy efficiency class (SDR) |
G |
| Energy efficiency class (HDR) |
Not available |
| Computer system |
|---|
| Computer system |
Yes |
| Computer system type |
System on Chip (SoC) |
| Operating system installed |
WebOS |
| Internal memory |
16 GB |
| Operating system version |
webOS 8.0 |
| Weight & dimensions |
|---|
| Display width |
48.8" (1240.1 mm) |
| Display depth |
1.17" (29.7 mm) |
| Display height |
28" (711.9 mm) |
| Display weight |
31.5 lbs (14.3 kg) |
| Packaging data |
|---|
| Package width |
53.5" (1360 mm) |
| Package depth |
5.98" (152 mm) |
| Package height |
31.9" (810 mm) |
| Package weight |
39.9 lbs (18.1 kg) |
| Batteries included |
Yes |
| Remote control included |
Yes |
| Cables included |
AC |
| Packaging content |
|---|
| Batteries included |
Yes |
| Remote control included |
Yes |
| Cables included |
AC |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 80% |
| Certificates |
|---|
| Certification |
CB / NRTL / FCC Class "B" / CE / KC |
| Technical details |
|---|
| VESA mounting |
Yes |
| USB connector type |
USB Type-A |
| Power supply type |
Internal |
| Bezel width |
0.449" (1.14 cm) |
| Panel type |
ADS |
| Built-in brightness sensor |
Yes |
| DisplayPorts in |
1 |
| LED backlighting type |
Edge-LED |
| Surface treatment |
25% |
| Real Time Clock (RTC) |
Yes |
| Sustainability certificates |
ENERGY STAR, ErP |
| Network |
|---|
| Wi-Fi |
Yes |
| Ethernet LAN |
Yes |
| Security algorithms |
SNMP |
| Thin Client |
|---|
| Operating system installed |
WebOS |
| Internal memory |
16 GB |
| Features |
|---|
| Heat dissipation (max) |
525 BTU/h |
| Other features |
|---|
| USB connector type |
USB Type-A |
| Power supply type |
Internal |
| Bezel width |
0.449" (1.14 cm) |
| Panel type |
ADS |
| Built-in brightness sensor |
Yes |
| DisplayPorts in |
1 |
| Wi-Fi |
Yes |
| Power consumption (PowerSave) |
72 W |
| Power consumption (max) |
154 W |
| PC Audio out |
Yes |
| Display technology |
LCD |
| Plug and Play |
Yes |
