StarTech.com Secure 4-Port KVM Switch, HDMI or DP, 4K 60Hz, NIAP 4.0, Made in the USA
Key Features
-
Secure KVM Switch: Control up to four HDMI or DisplayPort desktops, workstations, or servers from one mouse, keyboard, and a 4K 60Hz monitor; Features status LEDs for user console ports, Common Access Card (CAC) port, and port selection indicators
-
NIAP PSD 4.0 Certified: Prevents data transfer or leakage, isolates systems completely, and has no internal memory or storage that retains or shares information; Ensures secure operation in high-security environments managing sensitive or classified data
-
Dedicated and Configurable Common Access Card Port: Passes CAC signals through the KVM to connected systems, enabling secure smart card login and allowing IT professionals to manage secure access without attaching readers directly to each machine
-
Tamper Protection System: Anti-Tamper switches protect the KVM by detecting physical intrusion attempts, which disable all functionality and trigger visual and audible alerts; A tamper-evident seal offers visual indication if the KVM was previously opened
-
The IT Pro's Choice: Our Secure KVM switches are NIAP approved, built in the USA, and designed for enterprise-grade security and reliability; Trusted by leading IT, government, and military security teams
Description
Control multiple computers with a single set of peripherals while isolating data paths between systems and ensuring no data is ever stored
Operate multiple secure systems from a single workstation with the NIAP certified KVM switch, delivering uncompromising security, enterprise-grade performance, and seamless control over up to four computers with a 4K 60Hz display.
NIAP Certified Multi-System Control

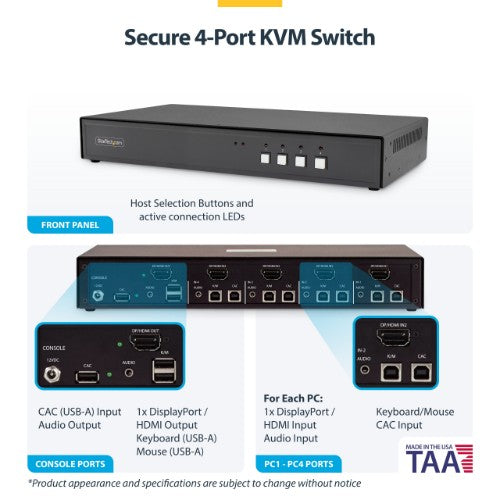

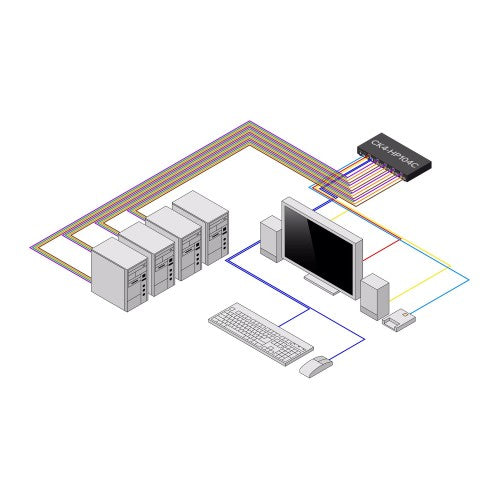

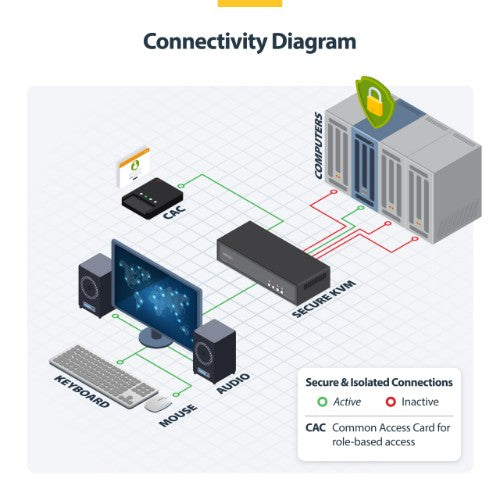

Manage up to four HDMI or DisplayPort-enabled desktops, workstations, or servers from one mouse, keyboard, and a 4K 60Hz monitor. Status LEDs on the console ports, CAC port, and port selection indicators provide instant visual feedback, while NIAP certification ensures complete system isolation to prevent any data transfer or leakage between connected systems. Integrated anti-tamper switches provide protection from the moment the unit leaves the factory, so any intrusion attempt, whether in storage, transit, or operation, will permanently disable the KVM and trigger clear visual and audible alerts. This makes it ideal for safeguarding operations across security domains or ensuring compliance with strict regulatory requirements.
This secure KVM complies with the following protection profiles and modules:
• Protection Profile for Peripheral Sharing Device (PSD), Version 4.0
• PP-Module for Analog Audio Output Devices, Version 1.0
• PP-Module for User Authentication Devices, Version 1.0
• PP-Module for Keyboard/Mouse Devices, Version 1.0
• PP-Module for Video/Display Devices, Version 1.0
Built-In CAC Access and Tamper Protection

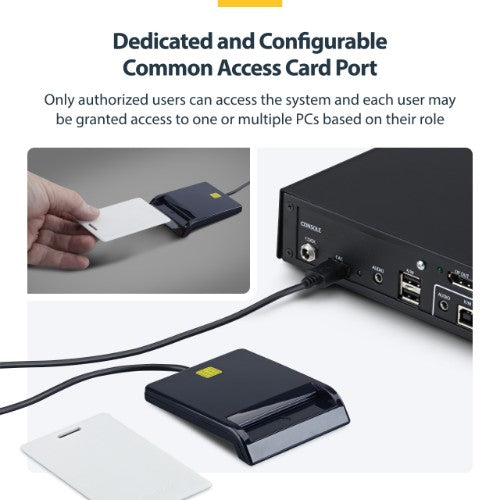

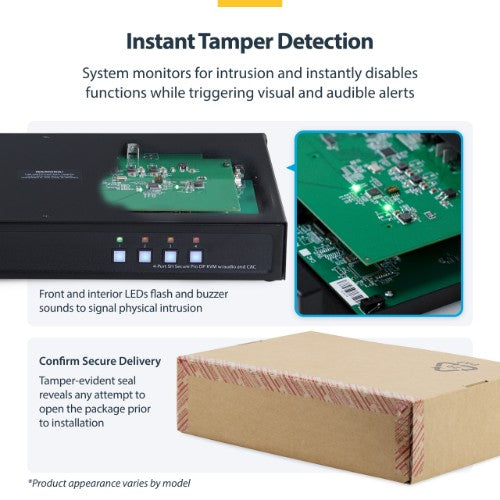

A dedicated and configurable Common Access Card port enables secure smart card logins across all connected systems without the need to attach readers to each machine. The advanced Tamper Protection System uses anti-tamper switches to detect physical intrusion attempts, immediately disabling all functionality and triggering visual and audible alerts, while a tamper-evident seal provides clear indication of unauthorized physical access.
Enterprise-Grade Security and Reliability
Engineered for IT professionals, our secure KVM switches are built in the USA, NIAP certified, rigorously tested in our Innovation Lab, and trusted by government, military, and enterprise security teams worldwide. Built for environments handling sensitive or classified data, they combine high-assurance security with the dependable performance required for mission-critical operations.
Specifications
| Ports & interfaces |
|---|
| Console USB ports quantity |
3 |
| Console ports |
3.5mm headphone, DisplayPort, HDMI, USB A |
| Number of microphone inputs |
4 |
| DisplayPorts quantity |
4 |
| Number of computers controlled |
4 |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Video port type |
HDMI/DisplayPort |
| Audio connections |
Yes |
| Headphone outputs |
1 |
| HDMI ports quantity |
4 |
| DC-in jack |
Yes |
| USB 2.0 Type-B ports quantity |
8 |
| Console DisplayPorts ports quantity |
1 |
| Console HDMI ports quantity |
1 |
| Performance |
|---|
| Daisy chain |
No |
| HD type |
4K Ultra HD |
| Maximum resolution |
3840 x 2160 pixels |
| Audio channels |
2.0 |
| Number of displays supported |
1 |
| Maximum refresh rate |
60 Hz |
| Maximum cable length |
236.2" (6 m) |
| Technical details |
|---|
| Product colour |
Black |
| Rack mounting |
No |
| Push button |
Yes |
| On Screen Display (OSD) |
No |
| LED indicators |
Yes |
| Hot keys |
No |
| IP control |
No |
| Design |
|---|
| Maximum cable length |
236.2" (6 m) |
| Product colour |
Black |
| Rack mounting |
No |
| Push button |
Yes |
| LED indicators |
Yes |
| Hot keys |
No |
| Housing material |
Metal |
| Display |
|---|
| Built-in display |
No |
| On Screen Display (OSD) |
No |
| Power |
|---|
| Power source |
DC |
| Video |
|---|
| HD type |
4K Ultra HD |
| Maximum resolution |
3840 x 2160 pixels |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Weight & dimensions |
|---|
| Width |
6.69" (170 mm) |
| Depth |
12.6" (320 mm) |
| Height |
1.73" (44 mm) |
| Weight |
4.19 lbs (1.9 kg) |
| Package width |
3.5" (89 mm) |
| Package depth |
0.638" (16.2 mm) |
| Package height |
8.5" (216 mm) |
| Packaging data |
|---|
| Package width |
3.5" (89 mm) |
| Package depth |
0.638" (16.2 mm) |
| Package height |
8.5" (216 mm) |
| Other features |
|---|
| IP control |
No |
| Push button |
Yes |
| Hot keys |
No |
| Logistics data |
|---|
| Master (outer) case width |
10.1" (257 mm) |
| Master (outer) case length |
21.7" (551 mm) |
| Master (outer) case height |
17.2" (436 mm) |
| Products per master (outer) case |
6 pc(s) |
