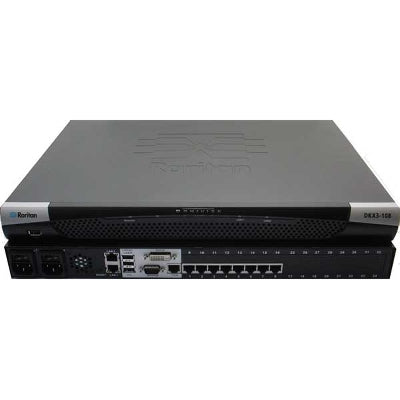

Raritan Dominion KX III KVM switch Rack mounting Black

8-port KVM-over-IP switch, 1 remote user, 1 local user

Description

High Performance KVM-over-IP Solution

From Computer Rooms, Test Labs, Studios, and Branch Offices to the Largest Enterprise Deployments, Offices to the Largest Enterprise Deployments, it's KVM-over-IP for the high performance remote access you need.

The Dominion KX III is an enterprise-class, secure, KVM-over-IP switch that provides 1, 2, 4 or 8 users with remote BIOS-level control of 8 to 64 servers. With higher performance and enhanced reliability, the Dominion KX III outperforms the competition. KX III comes with standard features such as DVI/HDMI/DisplayPort digital and analog video, audio, virtual media, smart card/CAC, blade server support, and mobile access. Deploy individually, or with Raritan’s CommandCenter Secure Gateway (CC-SG).

IT, Data Centers and Labs
The Dominion KX III includes the features needed to eliminate trips to the data center. Raritan’s Universal Virtual Media lets administrators remotely perform tasks such as installing software, transferring files and backing up data. Customers can control and manage servers on-the-go via their Apple iPhones and iPads, through Raritan’s CommandCenter Secure Gateway.

Broadcast and Entertainment
Dominion KX III provides high performance KVM-over-IP access for broadcast, entertainment and other dynamic applications requiring high speed video quality and response anytime/anywhere.

The KX III’s next generation video processing engine supports a broad range of applications, from traditional computer applications to the most dynamic broadcast applications that require 1920x1080 resolution, 24 bit color, digital audio, dual monitors and DVI, HDMI, DisplayPort and VGA video. View streaming 1080p video at 30 frames per second over your LAN!

Specifications

Ports & interfaces
Number of computers controlled	8
Keyboard port type	USB
Mouse port type	USB
Video port type	DVI-D
USB 2.0 ports quantity	4
DC-in jack	Yes
Ethernet LAN (RJ-45) ports	1
Network
Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Security algorithms	HTTPS, SNMP
Ethernet LAN (RJ-45) ports	1
Performance
Maximum resolution	1920 x 1080 pixels
Number of users	1 user(s)
Security algorithms	HTTPS, SNMP
Technical details
Product colour	Black
Rack mounting	Yes
Number of users	1 user(s)
Design
Product colour	Black
Rack mounting	Yes
Display
Built-in display	No
Power
AC input frequency	50 - 60 Hz
Power consumption (typical)	60 W
Input voltage	110-240 V
System requirements
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Video
Maximum resolution	1920 x 1080 pixels
Security
Security algorithms	HTTPS, SNMP
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	0 - 85%
Weight & dimensions
Width	17.3" (440 mm)
Depth	13.1" (334 mm)
Height	1.73" (44 mm)
Weight	8.6 lbs (3.9 kg)
Logistics data
Harmonized System (HS) code	85176200
