Mid Tower, SPCC/Tempered Glass, 3x 120 mm ARGB, 2.5”/3.5", 7 PCe, USB, 456 x 230 x 454 mm, Black
Description

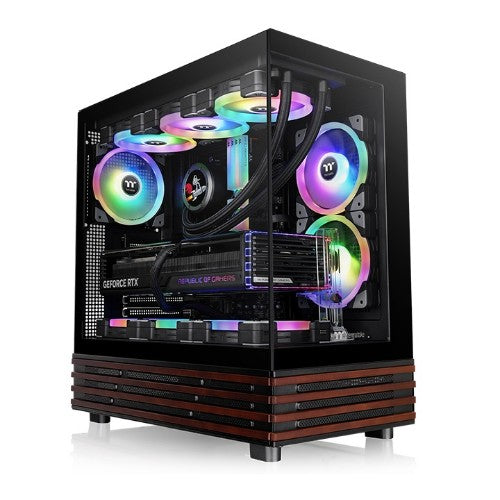

Built for amazing views, the View 270 Plus WS ARGB Mid Tower Chassis is an ATX case that features tempered glass front and left panels, accented with a stylish wood, and comes pre-installed with two 120mm ARGB Lite Reverse Fans on the motherboard side and one 120mm ARGB Lite Fan at the rear.
View 270 Plus WS ARGB Mid Tower ChassisThe View 270 Plus WS ARGB Mid Tower Chassis is an ATX case that features tempered glass front and left panels, accented with a stylish wood, and comes pre-installed with two 120mm ARGB Lite Reverse Fans on the motherboard side and one 120mm ARGB Lite Fan at the rear. Its RGB lighting can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock. Moreover, up to nine 120mm fans can be installed in the chassis, and up to a 360mm radiator can be placed on the top of the View 270 Plus WS ARGB Mid Snow Tower Chassis.
Tempered Glass Front and Left PanelsThe View 270 Plus WS ARGB Mid Tower Chassis is designed for better visibility, featuring tempered glass front and left panels framed with elegant wood, allowing users to enjoy their system with a stylish touch.
Supports up to a 360mm Radiator on the TopProviding good cooling support, users can choose to place a 360mm radiator on the top of The View 270 Plus WS ARGB.

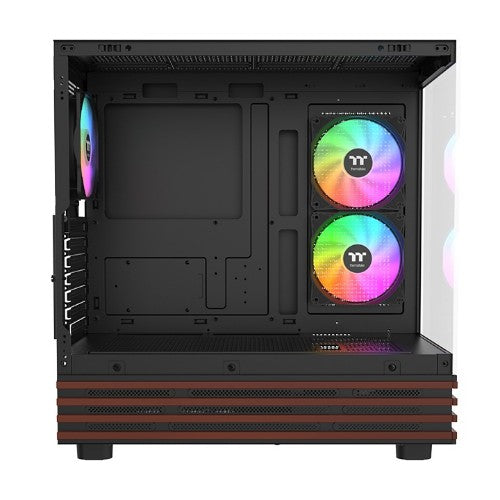

Three Hydraulic Bearing 120mm ARGB Lite Fans Pre-installedThe View 270 Plus WS ARGB Mid Tower Chassis features elegant wood and comes pre-installed with two 120mm ARGB Lite Reverse Fans on the motherboard side and one 120mm ARGB Lite Fan at the rear. Its captivating lighting effects can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock.
Built-in PSU CoverThe View 270 Plus WS ARGB Mid Tower Chassis features a full length power supply cover providing plenty of space to tuck away cables, while keeping airflow clear for your hard drives and PSU.
Opportunities For High-End ExpansionThe View 270 Plus WS ARGB Mid Tower Chassis offers good expandability. It can support a CPU cooler with a maximum height of 180mm, VGA placement up to 420mm in length, a power supply up to 220mm in length. Optimized for excellent cooling performance, the case comes pre-installed with two 120mm ARGB Lite Reverse Fans on the motherboard side and one 120mm ARGB Lite Fan at the rear. For radiator compatibility, it can support up to 360mm on top, giving more options for high-end expansion!
How Much Storage Is Totally Up To YouFor storage compatibility, The View 270 Plus WS ARGB Mid Tower Chassis gives maximum support of up to two 2.5‘’ SSDs or two 3.5‘’ HDDs in total.

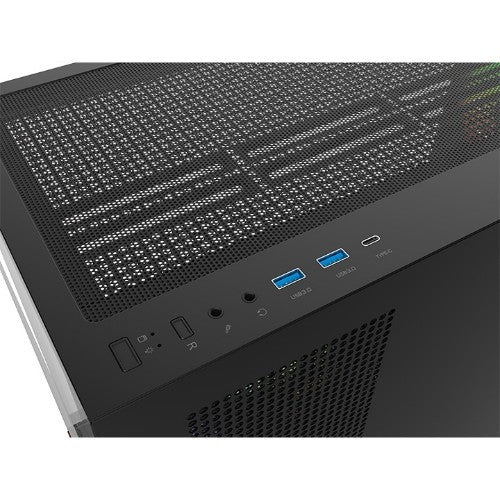

Handy I/O PortsTwo USB 3.0, one USB 3.2 Gen 2 Type-C and HD Audio ports are placed on the top panel to grant direct access when needed.
Specifications
| Technical details |
|---|
| Number of 5.25" bays |
0 |
| Number of 3.5" bays |
2 |
| Number of 2.5" bays |
2 |
| Number of internal 3.5" bays |
2 |
| Supported motherboard form factors |
ATX, EATX, micro ATX, Mini-ITX |
| Supported HDD sizes |
2.5,3.5" |
| Suitable for |
Gaming |
| Side window |
Yes |
| Reset button |
Yes |
| Product colour |
Black |
| Number of expansion slots |
7 |
| Maximum CPU cooler height |
7.09" (18 cm) |
| Maximum graphics card length |
16.5" (42 cm) |
| Maximum PSU length |
11" (28 cm) |
| Type |
PC |
| Form factor |
Midi Tower |
| Material |
|---|
| Material |
SPCC, Tempered glass |
| Indication |
|---|
| LED indicators |
Yes |
| Illumination location |
Case fans |
| Illumination colour |
Multi |
| Illumination |
Yes |
| Ergonomics |
|---|
| Reset button |
Yes |
| LED indicators |
Yes |
| On/off button |
Yes |
| Design |
|---|
| Material |
SPCC, Tempered glass |
| Number of 5.25" bays |
0 |
| Number of 3.5" bays |
2 |
| Number of 2.5" bays |
2 |
| Number of internal 3.5" bays |
2 |
| Supported motherboard form factors |
ATX, EATX, micro ATX, Mini-ITX |
| Suitable for |
Gaming |
| Side window |
Yes |
| Reset button |
Yes |
| LED indicators |
Yes |
| Illumination location |
Case fans |
| Illumination colour |
Multi |
| Illumination |
Yes |
| Product colour |
Black |
| Number of expansion slots |
7 |
| Maximum CPU cooler height |
7.09" (18 cm) |
| Maximum graphics card length |
16.5" (42 cm) |
| Maximum PSU length |
11" (28 cm) |
| Type |
PC |
| Form factor |
Midi Tower |
| On/off button |
Yes |
| Tempered glass panel(s) |
Yes |
| Power supply |
|---|
| Supported power supply form factors |
PS2 |
| Power supply included |
No |
| Power supply location |
Bottom |
| Ports & interfaces |
|---|
| USB 3.2 Gen 2x2 Type-C ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Audio input |
Yes |
| Audio output |
Yes |
| USB 2.0 ports quantity |
0 |
| Cooling |
|---|
| Rear radiator sizes supported |
120 mm |
| Top radiator sizes supported |
120,240,360 mm |
| Side fans installed |
2x 120 mm |
| Number of side fans supported (max) |
2 |
| Side fans diameters supported |
120 mm |
| Rear fans installed |
1x 120 mm |
| Number of rear fans supported (max) |
1 |
| Rear fans diameters supported |
120,140 mm |
| Number of top fans supported (max) |
3 |
| Top fans diameters supported |
120,140 mm |
| Number of bottom fans supported (max) |
3 |
| Bottom fans diameters supported |
120 mm |
| Liquid cooling capability |
Yes |
| Storage |
|---|
| Supported HDD sizes |
2.5,3.5" |
| Packaging content |
|---|
| Manual |
Yes |
| Weight & dimensions |
|---|
| Width |
9.06" (230 mm) |
| Depth |
17.9" (454 mm) |
| Height |
18" (456 mm) |
| Packaging data |
|---|
| Manual |
Yes |
| Other features |
|---|
| Manual |
Yes |
