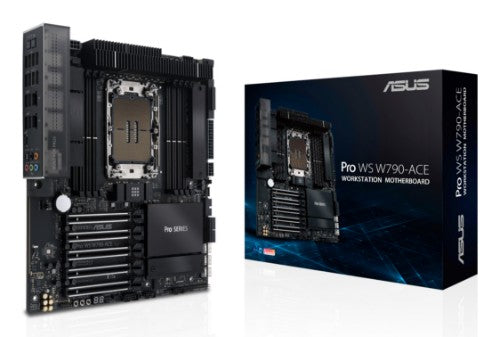

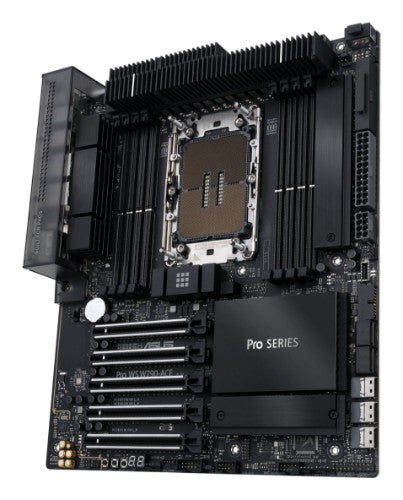

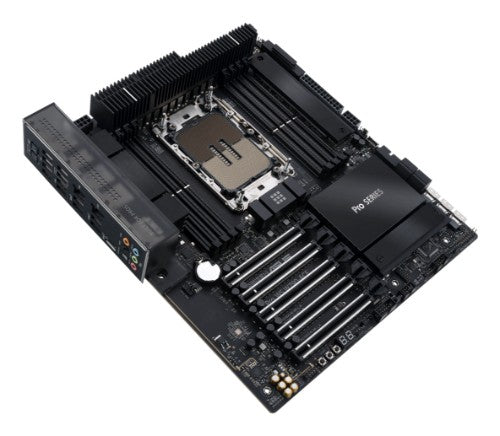

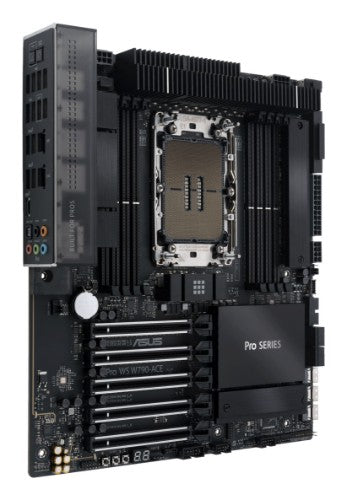

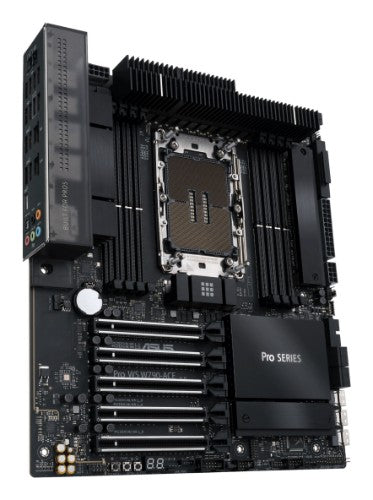

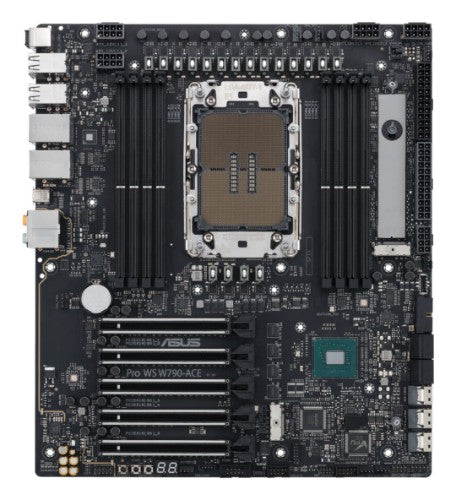

ASUS PRO WS W790-ACE, Intel, LGA 4677 (Socket E), Intel Xeon W, W-3400, W-2400, DDR5-SDRAM, 2.05 TB
Description
ASUS PRO WS W790-ACE. Processor manufacturer: Intel, Processor socket: LGA 4677 (Socket E), Compatible processor series: Intel Xeon W. Supported memory types: DDR5-SDRAM, Maximum internal memory: 2.05 TB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet. Component for: Workstation, Motherboard form factor: SSI CEB, Motherboard chipset family: Intel
Specifications
| Internal I/O |
|---|
| Number of M.2 (M) slots |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
1 |
| 12V power connector |
Yes |
| Supported storage drive interfaces |
M.2, SATA III |
| USB 2.0 connectors |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
| mSATA ports quantity |
0 |
| TPM connector |
Yes |
| Number of SATA connectors |
0 |
| Number of SATA III connectors |
4 |
| Number of SATA II connectors |
0 |
| Number of COM connectors |
1 |
| Number of chassis fan connectors |
5 |
| Front panel audio connector |
Yes |
| EPS power connector (8-pin) |
Yes |
| CPU fan connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| Technical details |
|---|
| Motherboard chipset family |
Intel |
| Motherboard chipset |
Intel W790 |
| On-board graphics card |
No |
| Motherboard form factor |
SSI CEB |
| Component for |
Workstation |
| Audio |
|---|
| Audio output channels |
7.1 channels |
| Performance |
|---|
| Number of HDDs supported |
4 |
| Supported storage drive types |
HDD & SSD |
| Motherboard chipset family |
Intel |
| Motherboard chipset |
Intel W790 |
| RAID levels |
0, 1, 5, 10 |
| Windows operating systems supported |
Windows 10 x64, Windows 11 |
| Audio output channels |
7.1 channels |
| Motherboard form factor |
SSI CEB |
| Component for |
Workstation |
| Processor |
|---|
| Processor manufacturer |
Intel |
| Compatible processor series |
Intel Xeon W |
| Intel Xeon series |
W-3400, W-2400 |
| Processor socket |
LGA 4677 (Socket E) |
| Memory |
|---|
| Number of memory slots |
8 |
| Memory slots type |
DIMM |
| Supported memory types |
DDR5-SDRAM |
| Memory channels |
Quad-channel |
| Supported memory clock speeds |
4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800 MHz |
| Maximum internal memory |
2.05 TB |
| ECC сompatibility |
ECC |
| Storage controllers |
|---|
| Number of HDDs supported |
4 |
| Supported storage drive types |
HDD & SSD |
| Supported storage drive interfaces |
M.2, SATA III |
| RAID levels |
0, 1, 5, 10 |
| Number of storage drives supported |
6 |
| RAID support |
Yes |
| Graphics |
|---|
| On-board graphics card |
No |

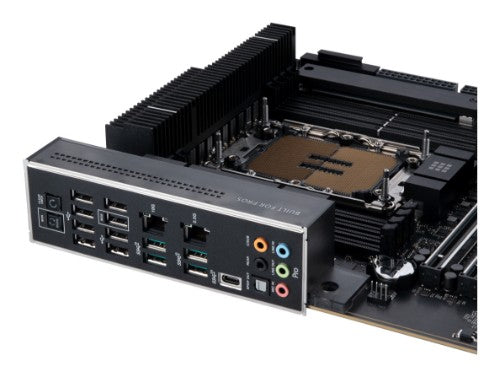

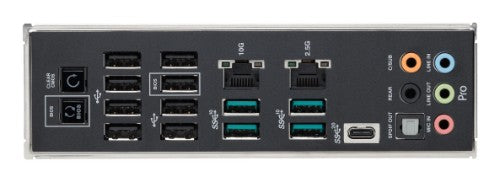

| Rear panel I/O ports |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
0 |
| USB 2.0 ports quantity |
8 |
| VGA (D-Sub) ports quantity |
0 |
| S/PDIF out port |
Yes |
| Microphone in |
Yes |
| Headphone outputs |
1 |
| HDMI ports quantity |
0 |
| Ethernet LAN (RJ-45) ports |
2 |
| DVI-D ports quantity |
0 |
| USB 3.2 Gen 2x2 Type-C ports quantity |
1 |
| Network |
|---|
| Ethernet LAN |
Yes |
| Wi-Fi |
No |
| Ethernet interface type |
2.5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Features |
|---|
| Motherboard chipset family |
Intel |
| Motherboard chipset |
Intel W790 |
| Windows operating systems supported |
Windows 10 x64, Windows 11 |
| Audio output channels |
7.1 channels |
| Motherboard form factor |
SSI CEB |
| Component for |
Workstation |
| Audio chip |
Realtek S1220A |
| Product colour |
Black |
| Expansion slots |
|---|
| Number of M.2 (M) slots |
2 |
| PCI Express x16 (Gen 5.x) slots |
5 |
| BIOS |
|---|
| BIOS type |
UEFI AMI |
| BIOS memory size |
512 Mbit |
| Clear CMOS button |
Yes |
| Packaging data |
|---|
| Package width |
14.6" (370 mm) |
| Package depth |
12.3" (312 mm) |
| Package height |
4.25" (108 mm) |
| Package weight |
7.76 lbs (3.52 kg) |
| Software |
|---|
| Windows operating systems supported |
Windows 10 x64, Windows 11 |
| Weight & dimensions |
|---|
| Height |
1.97" (50 mm) |
| Package width |
14.6" (370 mm) |
| Package depth |
12.3" (312 mm) |
| Package height |
4.25" (108 mm) |
| Package weight |
7.76 lbs (3.52 kg) |
| Weight |
3.99 lbs (1.81 kg) |
| Width |
12" (305 mm) |
| Depth |
10.9" (277 mm) |
| Other features |
|---|
| Height |
1.97" (50 mm) |
| Package width |
14.6" (370 mm) |
| Package depth |
12.3" (312 mm) |
| Package height |
4.25" (108 mm) |
| Package weight |
7.76 lbs (3.52 kg) |
| mSATA ports quantity |
0 |
| Weight |
3.99 lbs (1.81 kg) |
| Intel Xeon series |
W-3400, W-2400 |
