StarTech.com Triple-Monitor USB-C Docking Station, 140W Laptop Charging Dock for MacBook Pro and Windows, 4K 60Hz, TAA
Key Features
-
Universal 140W USB-C Dock: Supports triple 4K 60Hz displays and delivers up to 140W power over USB-C for high-performance laptops; USB-A adapter offers legacy host compatibility with dual-display support, ensuring flexibility across deployments
-
Cross Platform Support: Streamline deployment across diverse environments with DisplayLink-based HDMI and DisplayPort outputs; USB-C video output utilizes the laptops GPU for higher video performance; Multi-monitor support for macOS, Windows, and ChromeOS
-
2.5G Ethernet for High-Speed Networking: Transfer large files or work directly from the cloud with a reliable 2.5GbE connection; Supports Jumbo Frames for lower CPU overhead and improved throughput, plus PXE Boot and Wake-on-LAN for IT-managed deployments
-

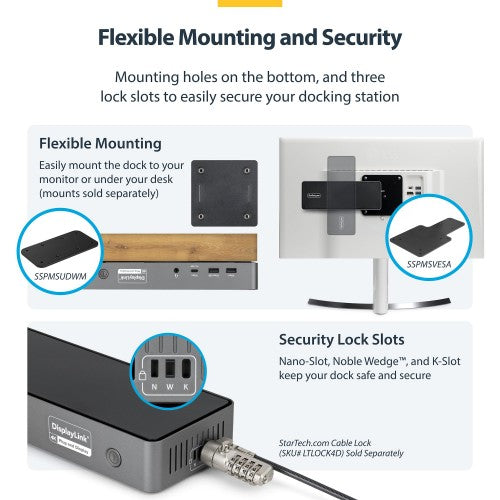

Mounting and Security: Universal dock features built-in lock slots for physical security; Supports surface or VESA mounting to keep the dock secured and out of the way (mounting accessories sold separately: SSPMSUDWM, DOCK-NUC-VESA-MOUNT, SSPMSVESA)
-
The IT Pro's Choice: Our docking stations are rigorously tested in our Innovation Lab to ensure enterprise-grade reliability and cross-platform compatibility; Built to support large-scale deployments, Windows 11 upgrades, and the shift to AI-enabled PCs
Description
Universal triple-monitor dock compatible with macOS, Windows, and ChromeOS
This universal docking station offers high-resolution display support and broad OS compatibility to simplify device management and user experience, making it ideal for modern professional workspaces including hot desks and mixed-device environments.

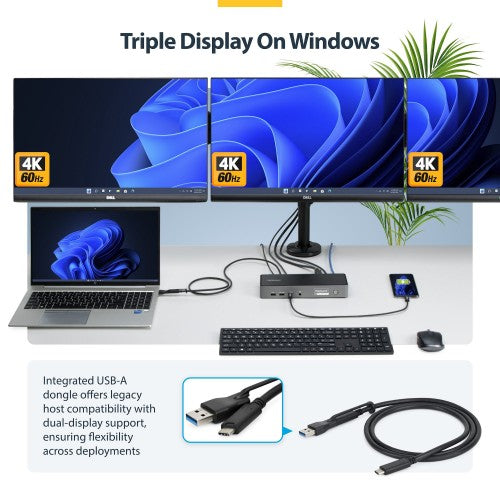

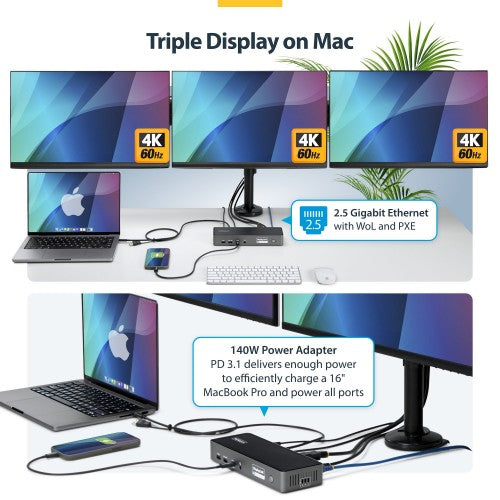

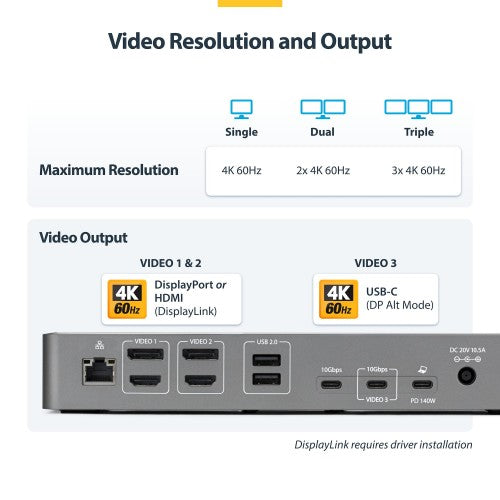

Triple 4K Display Support & 140W USB-C Charging
Support up to three 4K 60Hz monitors via USB-C while delivering up to 140W of power to high-performance laptops. A USB-A adapter extends compatibility to legacy systems, enabling flexible dual-display setups in shared workstations and hybrid IT environments.
GPU Agnostic for Cross-Platform IT Deployments
DisplayLink-based HDMI and DisplayPort outputs enable multi-monitor setups on macOS, Windows, and ChromeOS. The USB-C video output port leverages the laptop's built-in GPU to deliver high-performance video output. A unified driver experience simplifies hot desk provisioning, reduces IT support overhead, and ensures consistent performance across transient and mobile workstations.
Enterprise-Grade Networking & Physical Security
The integrated 2.5GbE port ensures high-speed data transfers and supports PXE Boot, Jumbo Frames, and Wake-on-LAN. Built-in lock slots and optional mounting solutions (SSPMSUDWM, DOCK-NUC-VESA-MOUNT, SSPMSVESA) enhance the physical security of the docking station.

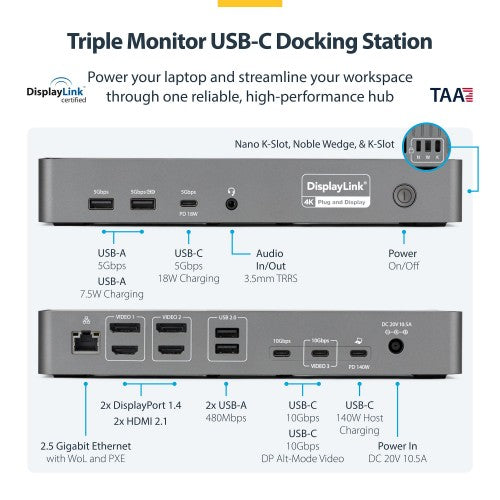

Specifications
| Ports & interfaces |
|---|
| Combo headphone/mic port |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
2 |
| Headphone connectivity |
3.5 mm |
| Host interface |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 2.0 ports quantity |
2 |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI ports quantity |
2 |
| HDMI version |
2.1 |
| DisplayPorts quantity |
2 |
| Headphone outputs |
1 |
| DC-in jack |
Yes |
| Connectivity technology |
Wired |
| DisplayPort version |
1.4 |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Network |
|---|
| Full duplex |
Yes |
| Wake-on-LAN ready |
Yes |
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,100,1000,2500 Mbit/s |
| Ethernet LAN (RJ-45) ports |
1 |
| Performance |
|---|
| UASP support |
Yes |
| Maximum digital resolution |
3840 x 2160 pixels |
| Full duplex |
Yes |
| Number of displays supported |
3 |
| On/off switch |
Yes |
| Product colour |
Gray |
| Card reader integrated |
No |
| Cable lock slot |
Yes |
| LED indicators |
Yes |
| Data transfer rate |
10 Gbit/s |
| Cable lock slot type |
Kensington, Nano, Wedge |
| HD type |
4K Ultra HD |
| Technical details |
|---|
| Product colour |
Gray |
| Cable lock slot |
Yes |
| Data transfer rate |
10 Gbit/s |
| Compliance certificates |
Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA) |
| User guide |
Yes |
| Products per master (outer) case |
6 pc(s) |
| Master (outer) case width |
12.4" (315 mm) |
| Master (outer) case length |
15.6" (395 mm) |
| Master (outer) case height |
11.8" (300 mm) |
| Storage |
|---|
| Card reader integrated |
No |
| Power |
|---|
| Power source type |
DC |
| Input current |
2.5 A |
| Power plug type |
Type M |
| Power consumption (max) |
210 W |
| AC input voltage |
100 - 240 V |
| Output voltage |
20 V |
| Output current |
10.5 A |
| Software |
|---|
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
| Mac operating systems supported |
Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia |
| Linux operating systems supported |
Yes |
| Other operating systems supported |
ChromeOS |
| Indication |
|---|
| LED indicators |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating relative humidity (H-H) |
0 - 90% |
| Weight & dimensions |
|---|
| Weight |
14.1 oz (400 g) |
| Width |
3.31" (84 mm) |
| Depth |
9.15" (232.5 mm) |
| Height |
1.46" (37 mm) |
| Package weight |
2.65 lbs (1.2 kg) |
| Package width |
6.65" (169 mm) |
| Package depth |
9.88" (251 mm) |
| Package height |
3.54" (90 mm) |
| Design |
|---|
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
| Mac operating systems supported |
Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia |
| Product colour |
Gray |
| Cable lock slot |
Yes |
| LED indicators |
Yes |
| Cable lock slot type |
Kensington, Nano, Wedge |
| Packaging data |
|---|
| Package weight |
2.65 lbs (1.2 kg) |
| Package width |
6.65" (169 mm) |
| Package depth |
9.88" (251 mm) |
| Package height |
3.54" (90 mm) |

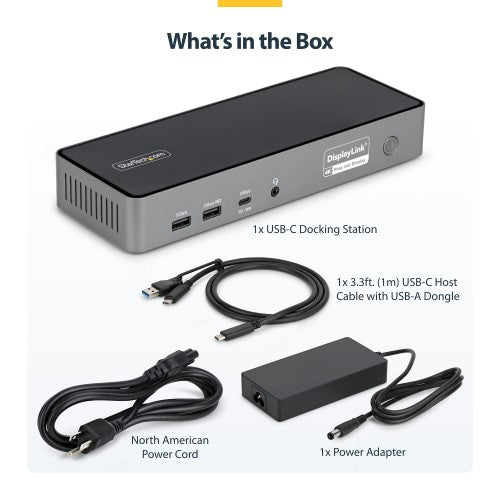

| Packaging content |
|---|
| User guide |
Yes |
| Cables included |
AC, USB Type-C |
| AC adapter included |
Yes |
| Logistics data |
|---|
| Products per master (outer) case |
6 pc(s) |
| Master (outer) case width |
12.4" (315 mm) |
| Master (outer) case length |
15.6" (395 mm) |
| Master (outer) case height |
11.8" (300 mm) |
| Other features |
|---|
| Chipset |
DisplayLink - DL6950, Genesys Logic - GL5911, Genesys Logic - GL5910, Genesys Logic - GL3590, Realtek - RTL8156B |
