Intel LGA 1700/ 1200/ 20xx/ 1151/ 115x AMD AM5/ AM4/ AMx/ FMx, Pump Speed4200 RPM, DC 12V, 0.34A (0.45A MAX), 3 PCS fan, 23.87 - 60.1 CFM, 0.36 - 2.27 mm / H2O, 1.4 Kg
Description

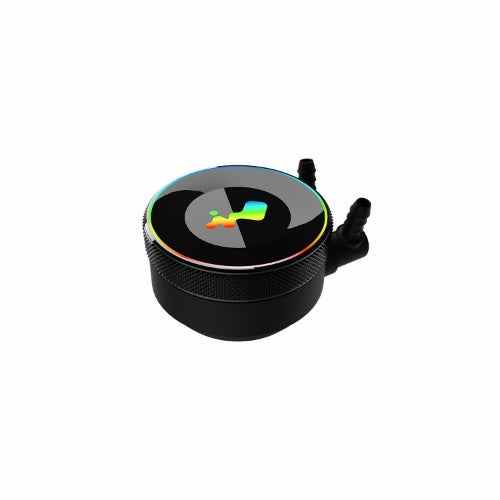

Rotatable CPU BlockheadThe MR Series features an aluminium rotatable CPU blockhead that’s accented with an alluring ARGB ring. The blockhead can rotate a full 360 degrees to match your build.

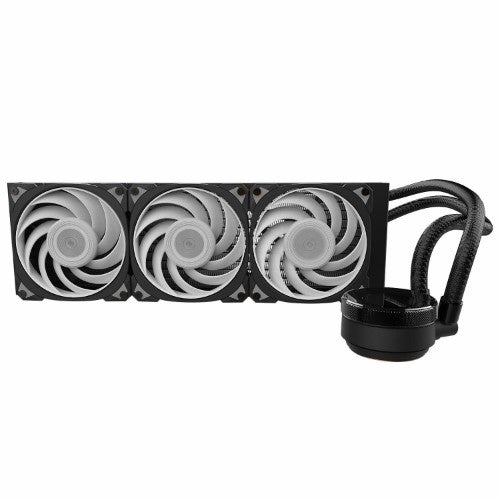

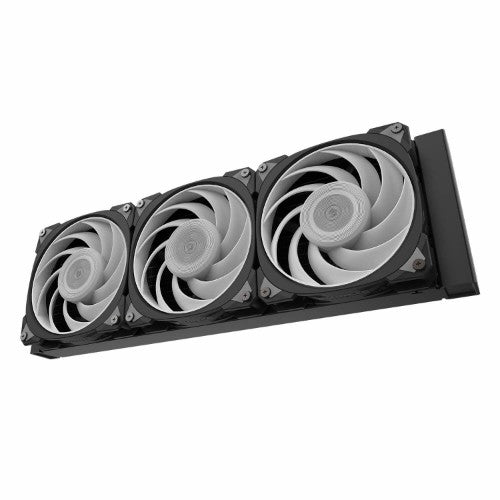

Silent Static Pressure Neptune AN120 FansThe MR Series is armed with the Neptune AN120 fans. These fans offer excellent cooling performance without sacrificing your peaceful area.

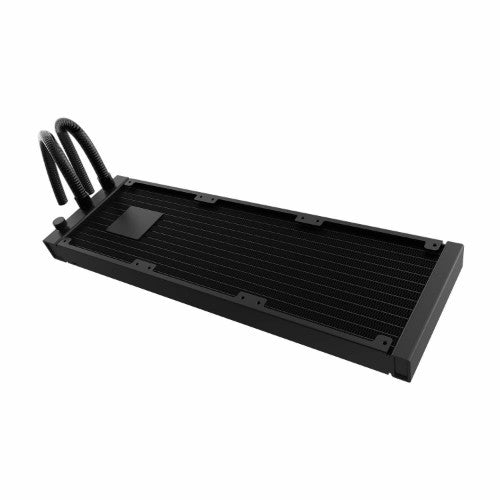

FIN-Tastic Heat DissipationThe high-density microchannel fins and a large radiator heat dissipation area enhances heat conducting efficiency.
Radiator Mounted Pump DesignThe pump is mounted into the radiator to suppress noise pollution and reduce vibrations. The high-speed pump quickly returns the liquid back into the cooling loop.
Supports Latest CPU SocketsThe modular, tool-free mounting brackets are designed for simple installation on all the latest CPU sockets, and includes LGA 1700 and AM5.
Specifications
| Performance |
|---|
| Suitable location |
Processor |
| Fan connector |
3-pin + 4-pin |
| Rotational speed (min) |
900 RPM |
| Rotational speed (max) |
2200 RPM |
| Type |
Liquid cooling kit |
| Fan diameter |
4.72" (12 cm) |
| Supported processor sockets |
Socket AM4, LGA 1151 (Socket H4), Socket AM5, LGA 1200 (Socket H5), LGA 1700 |
| Maximum airflow |
60.1 cfm |
| Minimum air pressure |
0.36 mmH2O |
| Maximum air pressure |
2.27 mmH2O |
| Number of fans |
3 fan(s) |
| Pump motor speed (max) |
4200 RPM |
| Design |
|---|
| Fan connector |
3-pin + 4-pin |
| Number of fans |
3 fan(s) |
| Material |
Aluminum, Nylon, Rubber |
| Product colour |
Black |
| Technical details |
|---|
| Type |
Liquid cooling kit |
| Fan diameter |
4.72" (12 cm) |
| Supported processor sockets |
Socket AM4, LGA 1151 (Socket H4), Socket AM5, LGA 1200 (Socket H5), LGA 1700 |
| Maximum airflow |
60.1 cfm |
| Minimum air pressure |
0.36 mmH2O |
| Maximum air pressure |
2.27 mmH2O |
| Number of fans |
3 fan(s) |
| Material |
Aluminum, Nylon, Rubber |
| Fan connector |
3-pin + 4-pin |
| Ports & interfaces |
|---|
| Fan connector |
3-pin + 4-pin |
| Power |
|---|
| Voltage |
12 V |
| Rated current |
0.34 A |
| Maximum current |
0.45 A |
| Colour |
|---|
| Product colour |
Black |
| Weight & dimensions |
|---|
| Package depth |
17.6" (448 mm) |
| Package width |
5.39" (137 mm) |
| Package height |
8.07" (205 mm) |
| Package weight |
5.29 lbs (2.4 kg) |
| Weight |
3.75 lbs (1.7 kg) |
| Radiator width |
4.72" (12 cm) |
| Radiator depth |
15.6" (39.7 cm) |
| Radiator height |
1.06" (2.7 cm) |
| Tube length |
17.7" (45 cm) |
| Waterblock width |
2.68" (6.8 cm) |
| Waterblock depth |
3.19" (8.1 cm) |
| Waterblock height |
1.54" (3.9 cm) |
| Pump width |
4.72" (12 cm) |
| Pump depth |
4.72" (12 cm) |
| Pump height |
0.984" (2.5 cm) |
| Packaging data |
|---|
| Package depth |
17.6" (448 mm) |
| Package width |
5.39" (137 mm) |
| Package height |
8.07" (205 mm) |
| Package weight |
5.29 lbs (2.4 kg) |
| Package type |
Box |
| Packaging content |
|---|
| Screws included |
Yes |
| Package type |
Box |
| Mounting kit |
Yes |
| CPU socket spacer(s) |
Yes |
| CPU bracket(s) |
Yes |
