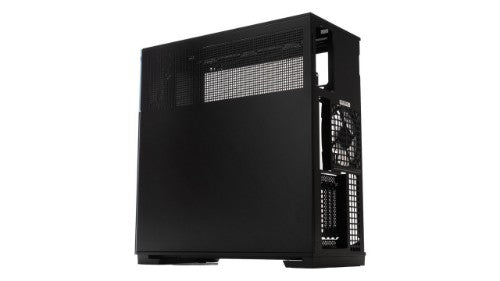

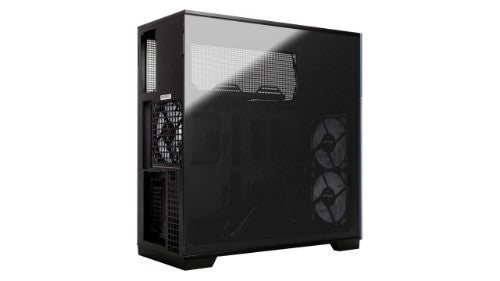

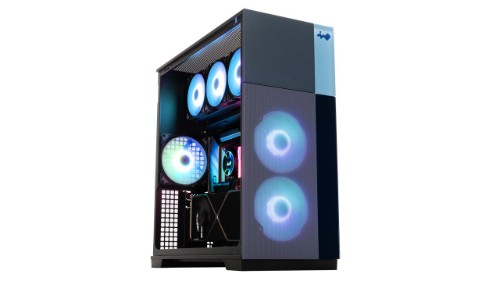

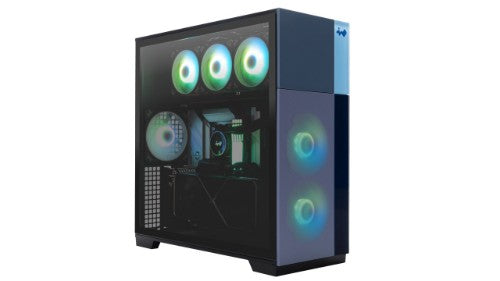

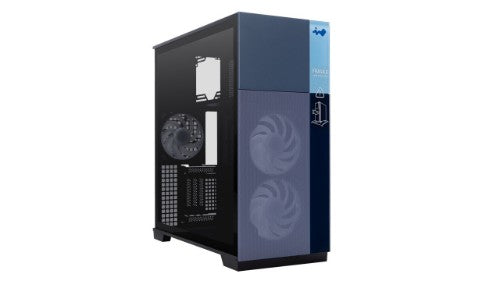

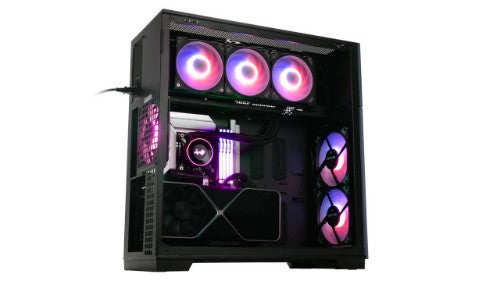

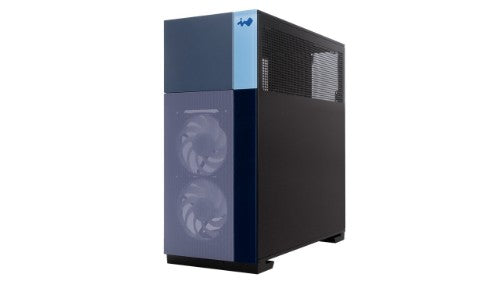

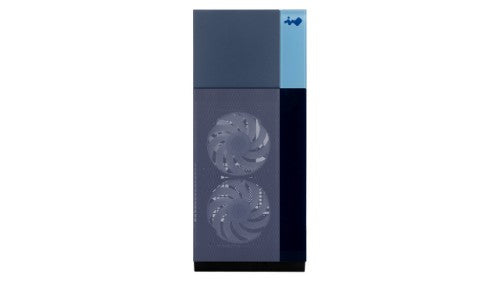

F5 Full Tower
Description
Shift and Shuffle Your Front PanelThe F5’s front panel features detachable panels, providing the freedom to swap for various PC appearances. Make it your personal PC now!
Select Your VibeElegant Maple Wood and Modern Tinted Glass offer different materials on a PC that blends into your home or office setting.
Versatile GPU SupportInWin has innovated a magnetic GPU holder and a modular PCI-E slot for dual GPU orientation to ensure GPU stability and displays the card horizontally or vertically.
Highly ExpandableThe F5 supports Back-Connector motherboards, compatible with GPUs up to 435 mm, and possesses multiple 2.5”/3.5” storage drive trays.
Versatile Cooling OptionsThe F5 provides versatile cooling configurations, supporting up to 9 fans and accommodating radiator sizes of 240, 280, 360, and 420 mm. F5 comes with three complementary Neptune AN140/AN140P fans.
Specifications
| Technical details |
|---|
| Number of 5.25" bays |
0 |
| Number of 3.5" bays |
2 |
| Number of 2.5" bays |
2 |
| Supported motherboard form factors |
ATX, EATX, micro ATX, Mini-ITX |
| Supported HDD sizes |
2.5,3.5" |
| Side window |
Yes |
| Product colour |
Black |
| Maximum CPU cooler height |
7.09" (18 cm) |
| Maximum graphics card length |
17.1" (43.5 cm) |
| Maximum PSU length |
9.06" (23 cm) |
| Type |
PC |
| Form factor |
Tower |
| Material |
|---|
| Material |
SECC, Tempered glass |
| Design |
|---|
| Anti-dust filter |
Yes |
| Material |
SECC, Tempered glass |
| Number of 5.25" bays |
0 |
| Number of 3.5" bays |
2 |
| Number of 2.5" bays |
2 |
| Supported motherboard form factors |
ATX, EATX, micro ATX, Mini-ITX |
| Side window |
Yes |
| Product colour |
Black |
| Maximum CPU cooler height |
7.09" (18 cm) |
| Maximum graphics card length |
17.1" (43.5 cm) |
| Maximum PSU length |
9.06" (23 cm) |
| Type |
PC |
| Form factor |
Tower |
| Power supply |
|---|
| Power supply included |
No |
| Power supply location |
Top |
| Ports & interfaces |
|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 2.0 ports quantity |
0 |
| Cooling |
|---|
| Front radiator sizes supported |
240,280 mm |
| Top radiator sizes supported |
360,420 mm |
| Number of front fans supported (max) |
2 |
| Front fans diameters supported |
120,140 mm |
| Number of rear fans supported (max) |
1 |
| Rear fans diameters supported |
120 mm |
| Number of top fans supported (max) |
3 |
| Top fans diameters supported |
120,140 mm |
| Bottom fans installed |
3x 140 mm |
| Number of bottom fans supported (max) |
3 |
| Bottom fans diameters supported |
120,140 mm |
| Bottom radiator sizes supported |
360,420 mm |
| Storage |
|---|
| Supported HDD sizes |
2.5,3.5" |
| Weight & dimensions |
|---|
| Width |
9.25" (235 mm) |
| Depth |
20.1" (510 mm) |
| Height |
21.4" (543 mm) |
| Weight |
23.6 lbs (10.7 kg) |
| Packaging data |
|---|
| Package width |
23.6" (600 mm) |
| Package height |
14" (355 mm) |
| Package depth |
25.7" (653 mm) |
| Package weight |
28.4 lbs (12.9 kg) |
