ATX12V V3.0, 100-240Vac, 15-8A, 50-60Hz, 80 PLUS Platinum, < 25 dB(A), 150 x 150 x 86 mm
Description
The PII Series ATX 3.1 fully meets the newest generation of Intel s PSDG (power supply design guide). This avoids potential system instability or power failure, provides better output stability, and allows users to game or work with peace of mind. Key Highlights: 1300 Watts 80+ Platinum PSU, Ultra-Quiet, Smart Fan Control, Highly Reliable Japanese Aluminium Electrolytic Capacitors, Multi-Protection Safeguards (OCP, OVP, UVP, SCP, OTP, OPP), Fully Modular Cables for Quick and Easy Installation.
Specifications
| Cooling |
|---|
| Fan diameter |
5.31" (13.5 cm) |
| Number of fans |
1 fan(s) |
| Fan location |
Top |
| Cooling type |
Active |
| Performance |
|---|
| On/off switch |
Yes |
| Power supply unit (PSU) form factor |
ATX |
| 80 PLUS certification |
80 PLUS Platinum |
| Purpose |
PC |
| ATX version |
3.0 |
| Noise level |
25 dB |
| Mean time between failures (MTBF) |
100000 h |
| Bearing technology |
FDB |
| Design |
|---|
| 80 PLUS certification |
80 PLUS Platinum |
| Product colour |
Black |
| Fan diameter |
5.31" (13.5 cm) |
| On/off switch |
Yes |
| Number of fans |
1 fan(s) |
| Fan location |
Top |
| Cooling type |
Active |
| Power |
|---|
| Total power |
1300 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Input current |
15-8 A |
| Power Factor Correction (PFC) type |
Active |
| Combined power (+3.3V) |
120 W |
| Combined power (+12V) |
1300 W |
| Combined power (+5V) |
120 W |
| Combined power (-12V) |
6 W |
| Combined power (+5Vsb) |
15 W |
| Max output current (+3.3V) |
24 A |
| Max output current (+12V) |
0.5 A |
| Max output current (+5V) |
24 A |
| Max output current (-12V) |
0.5 A |
| Max output current (+5Vsb) |
3 A |
| Power protection features |
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Efficiency |
92% |
| Ports & interfaces |
|---|

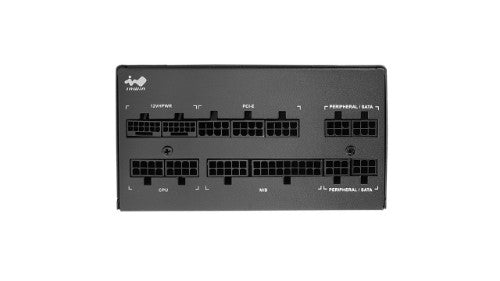

| Motherboard power connector |
24-pin ATX |
| Number of SATA power connectors |
9 |
| Peripheral (Molex) power connectors (4-pin) |
3 |
| PCI Express power connectors (6+2 pin) |
6 |
| CPU power connector (4+4 pin) |
Yes |
| Floppy drive power connector |
1 |
| Cabling type |
Fully-Modular |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
|---|
| Compliance certificates |
BSMI, CB, CE, Federal Communications Commission (FCC), cTUVus, UKCA |
| 80 PLUS certification |
80 PLUS Platinum |
| Weight & dimensions |
|---|
| Width |
5.91" (150 mm) |
| Depth |
5.91" (150 mm) |
| Height |
3.39" (86 mm) |
| Weight |
6.17 lbs (2.8 kg) |
| Packaging data |
|---|
| Package depth |
8.27" (210 mm) |
| Package width |
14" (355 mm) |
| Package height |
4.13" (105 mm) |
| Package weight |
7.5 lbs (3.4 kg) |
| Technical details |
|---|
| Sustainability compliance |
Yes |
| Compliance certificates |
BSMI, CB, CE, Federal Communications Commission (FCC), cTUVus, UKCA |
