View 600 TG Future Dusk Full Tower Chassis
Description
The View 600 TG Full Tower Chassis is an E-ATX case with four tempered glass panels, rotational PCI-E slots, a built-in GPU bracket, and supports up to ten 120/140mm fans and 360mm/420mm radiators. An optional 6" LCD Panel Kit is available for enhanced visuals.

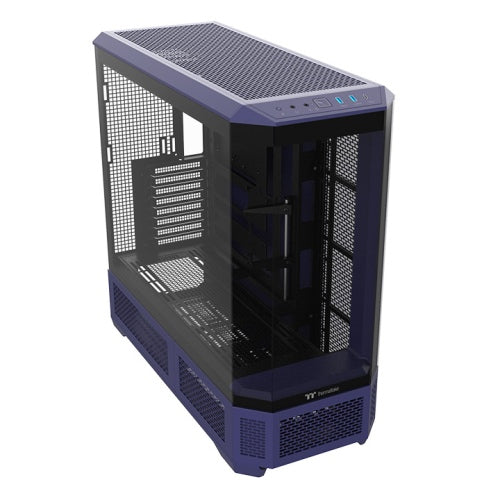

Four Tempered Glass Panels for Maximum VisibilityThe View 600 TG Full Tower Chassis features a distinctive shape and enhanced visibility with four 4mm tempered glass panels on the front and left, allowing users to showcase their system.
Compatible with Hidden-Connector MotherboardsDesigned for next-gen builds, the View 600 TG Full Tower Chassis supports E-ATX motherboards, including standard and hidden-connector ATX/Micro-ATX models from ASUS, MSI, and GIGABYTE.
Optimized Radiator SupportThe View 600 TG offers excellent cooling flexibility, supporting up to 420mm or 360mm radiators on both the top and motherboard side.
Exceptional Fan SupportDesigned for high-performance cooling, the View 600 TG Full Tower Chassis supports up to ten 120mm or 140mm fans, giving users maximum airflow customization to their system.

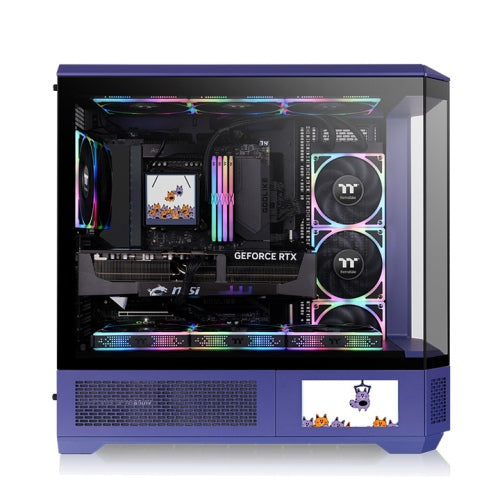

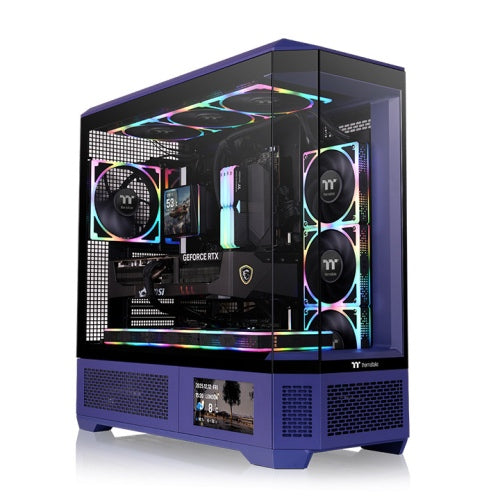

Visually Pleasing, Totally InteractiveMaximize your View 600 TG’s visual effects by upgrading it with our LCD Panel Kit.
The 6” LCD Display allows you to monitor real-time information and upload any images or GIFs to add extra flair using the TT RGB Plus software.
Personalize Your LCD DisplayThrough the latest TT RGB Plus, the 6‘’ LCD display presents real-time information and plays JPG and GIF files with at a 1480*720 resolution. It comes with six default background styles, and users can upload up to 20 custom images. Additionally, the display can show time and weather information, enhancing both visual appeal and customization options for your build.
Air Intake and ExhaustThanks to its spacious interior, the View 600 TG Full Tower Chassis still has well-designed cold air intakes and hot air exhausts to keep the internal temperature low at all times.
We've Tested Everything, So You Don’t Have ToAt Thermaltake, we always stress test our products under harsh conditions to ensure product quality. The View 600 TG products were tested at 100% full load for 30 minutes, with the most high-end CPU, GPU, and motherboard at the time of test, while paring with a consumer-style setup, allowing us to test how the chassis performs under real-world situations.
Massive Airflow & Incredible PerformanceThermal images taken during thermal testing. We can see that View 600 TG guarantees good cooling performance and a low internal temperature while using the highest quality components.
Storage SupportThe drive plate and cage support flexible storage configurations, allowing installation of up to three 3.5'' HDDs and one 2.5'' SSD, or one 3.5'' HDD and three 2.5'' SSDs.
Specifications
| Technical details |
|---|
| Number of 5.25" bays |
0 |
| Number of 3.5" bays |
3 |
| Number of 2.5" bays |
3 |
| Supported motherboard form factors |
ATX, EATX, micro ATX, Mini-ITX |
| Supported HDD sizes |
3.5" |
| Side window |
Yes |
| Reset button |
Yes |
| Product colour |
Blue |
| Number of expansion slots |
8 |
| Maximum CPU cooler height |
6.89" (17.5 cm) |
| Maximum graphics card length |
18.9" (48 cm) |
| Maximum PSU length |
8.66" (22 cm) |
| Type |
PC |
| Form factor |
Full Tower |
| Material |
|---|
| Material |
SPCC, Tempered glass |
| Indication |
|---|
| Illumination colour |
Multi |
| Illumination |
Yes |
| Ergonomics |
|---|
| Reset button |
Yes |
| On/off button |
Yes |
| Design |
|---|
| Material |
SPCC, Tempered glass |
| Number of 5.25" bays |
0 |
| Number of 3.5" bays |
3 |
| Number of 2.5" bays |
3 |
| Supported motherboard form factors |
ATX, EATX, micro ATX, Mini-ITX |
| Side window |
Yes |
| Reset button |
Yes |
| Illumination colour |
Multi |
| Illumination |
Yes |
| Product colour |
Blue |
| Number of expansion slots |
8 |
| Maximum CPU cooler height |
6.89" (17.5 cm) |
| Maximum graphics card length |
18.9" (48 cm) |
| Maximum PSU length |
8.66" (22 cm) |
| Type |
PC |
| Form factor |
Full Tower |
| On/off button |
Yes |
| Power supply |
|---|
| Supported power supply form factors |
PS2 |
| Ports & interfaces |
|---|
| USB 3.2 Gen 2x2 Type-C ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 2.0 ports quantity |
0 |
| Cooling |
|---|
| Rear radiator sizes supported |
120,140 mm |
| Top radiator sizes supported |
120,140,240,280,360,420 mm |
| Number of side fans supported (max) |
3 |
| Side fans diameters supported |
120,140 mm |
| Number of rear fans supported (max) |
1 |
| Rear fans diameters supported |
120,140 mm |
| Number of top fans supported (max) |
3 |
| Top fans diameters supported |
120,140 mm |
| Side radiator sizes supported |
120,140,240,280,360,420 mm |
| Storage |
|---|
| Supported HDD sizes |
3.5" |
| SSD form factor |
2.5" |
| Weight & dimensions |
|---|
| Width |
9.8" (249 mm) |
| Depth |
23" (584 mm) |
| Height |
22" (560 mm) |
