CyberPower PR2200LCDSL uninterruptible power supply (UPS) Line-Interactive 2.07 kVA 1980 W 7 AC outlet(s)

2070VA, 1980W, Line Interactive, NEMA 5-20P, NEMA L5-20R, NEMA 5-20R x 6, Mini-Tower

Description

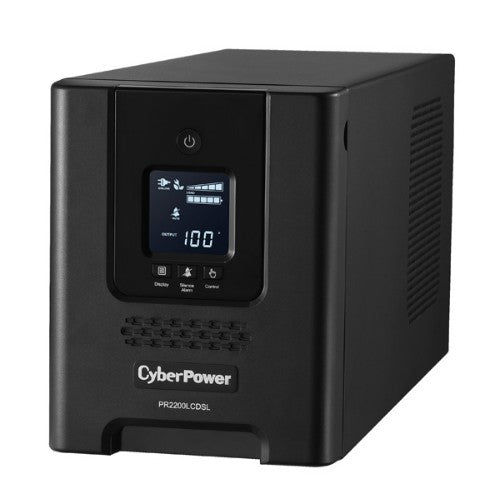

The CyberPower Smart App Sinewave PR2200LCDSL mini-tower uninterruptible power supply (UPS) with Multifunction LCD and pure sine wave output is Active PFC compatible for safeguarding mission-critical servers, telecom equipment, VoIP and internetworking hardware that require seamless pure sine wave power. Its full Automatic Voltage Regulation (AVR) boost/buck technology delivers a consistent and clean AC power, protecting connected equipment and preventing costly business interruptions. This UPS system is ENERGY STAR® qualified with patented GreenPower UPS™ Bypass circuitry to save on energy costs by reducing energy consumption and heat buildup.

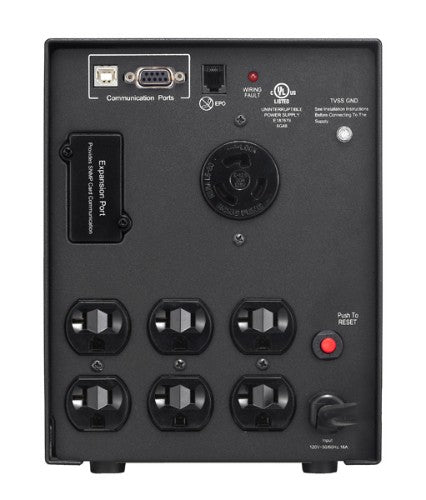

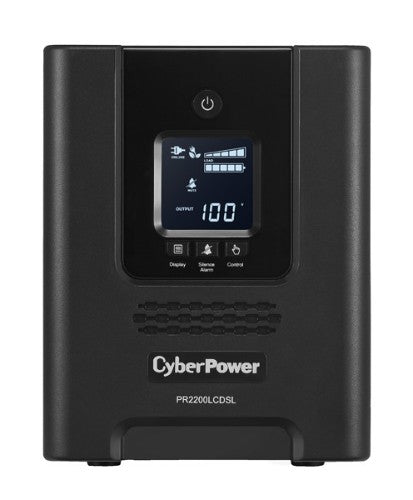

The PR2200LCDSL unit has a capacity of 2070VA/1980Watts, seven total outlets (6) NEMA 5-20R & (1) L5-20R receptacles, a NEMA 5-20P plug, and four (4) maintenance-free, user-replaceable 12V/9.0Ah batteries. The intelligent multifunction LCD panel displays real-time UPS vitals for ease of control. This unit offers connectivity via one (1) HID USB, one (1) DB9 serial and one (1) emergency power off (EPO) port. EMI/RFI filters increase the immunity of the load to noise disturbances.

This UPS unit incorporates microprocessor-based fully digital control and includes PowerPanel® Business Edition providing the user unsurpassed flexibility and control. An optional SNMP / HTTP Remote Management adapter (RMCARD202 – RMCARD203) supports remote management and control of the PR2200LCDSL through a standard web browser. A Three-Year Warranty ensures that this UPS has passed our highest quality standards in design, assembly, material and workmanship, further protection is offered by a $375,000 Connected Equipment Guarantee.

Specifications

Power
Output frequency	60 Hz
Output power	1980 W
Input operation voltage (min)	75 V
Input operation voltage (max)	154 V
Output operation voltage (max)	120 V
Surge energy rating	1030 J
Emergency Power Off (EPO)	Yes
Power factor	0.95
Output power capacity	2.07 kVA
Input frequency	57/63 Hz
Ports & interfaces
Cable length	118.1" (3 m)
AC outlets quantity	7 AC outlet(s)
AC outlet types	NEMA 5–20R, NEMA L5-20R
Power plug	NEMA 5-20P
USB 2.0 ports quantity	1
Serial ports quantity	1
Performance
UPS topology	Line-Interactive
Waveform	Sine
Automatic Voltage Regulation (AVR)	Yes
LED indicators	Yes
Power protection features	Overload
Audible alarm(s)	Yes
Features
Output frequency	60 Hz
UPS topology	Line-Interactive
Waveform	Sine
Automatic Voltage Regulation (AVR)	Yes
Output power	1980 W
Input operation voltage (min)	75 V
Input operation voltage (max)	154 V
Output operation voltage (max)	120 V
Surge energy rating	1030 J
Emergency Power Off (EPO)	Yes
Power protection features	Overload
Power factor	0.95
Audible alarm(s)	Yes
Output power capacity	2.07 kVA
Input frequency	57/63 Hz
Battery
Number of batteries supported	4
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	8 h
Typical backup time at half load	10 min
Typical backup time at full load	3 min
Hot-swap battery	Yes
Design
Form factor	Mini Tower
LED indicators	Yes
Product colour	Black
Safety	UL1778 4th, cUL CSA C22.2 No 107.3-05, FCC/DOC Class A
Cable length	118.1" (3 m)
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	0 - 90%
Technical details
Output voltage	120 V
Output frequency	60 Hz
Sustainability certificates	ENERGY STAR
Compliance certificates	RoHS
Certificates
Compliance certificates	RoHS
Safety	UL1778 4th, cUL CSA C22.2 No 107.3-05, FCC/DOC Class A
Sustainability
Sustainability certificates	ENERGY STAR
Safety regulation & standards
Safety	UL1778 4th, cUL CSA C22.2 No 107.3-05, FCC/DOC Class A
Weight & dimensions
Weight	51.8 lbs (23.5 kg)
Width	6.7" (170.2 mm)
Height	8.7" (221 mm)
Depth	17" (431.8 mm)
Other features
Output voltage	120 V
