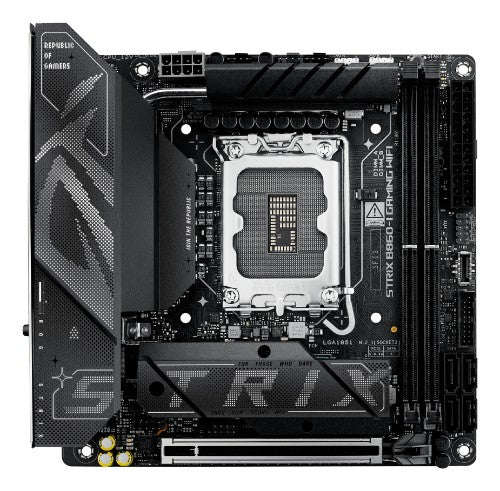

Intel B860, 2 x DIMM slots, max. 128GB, DDR5, M.2/SATA III, 2.5Gb Ethernet, Wi-Fi 7 (802.11be), 256Mb Flash ROM, UEFI AMI BIOS, Mini-ITX
Description
ROG STRIX B860-I gaming wifiThe ROG Strix B860-I Gaming WiFi is designed to dominate with Intel® Core™ Ultra Processors(Series 2). Its advanced power design and AI solutions drive top-tier performance, while Thunderbolt™ 4, WiFi 7 and high-speed DDR5 slots offer cutting-edge connectivity. This motherboard delivers the power and speed needed for elite gaming and demanding AI applications.
Specifications
| Internal I/O |
|---|
| Number of M.2 (M) slots |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
1 |
| 12V power connector |
Yes |
| Supported storage drive interfaces |
M.2, SATA III |
| USB 2.0 connectors |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
| mSATA ports quantity |
0 |
| Number of SATA connectors |
0 |
| Number of SATA III connectors |
4 |
| Number of SATA II connectors |
0 |
| Number of chassis fan connectors |
1 |
| Front panel audio connector |
Yes |
| EPS power connector (8-pin) |
Yes |
| CPU fan connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| Number of CPU fan connectors |
1 |
| Technical details |
|---|
| Motherboard chipset family |
Intel |
| Motherboard chipset |
Intel B860 |
| Parallel processing technology support |
Not supported |
| On-board graphics card |
No |
| Motherboard form factor |
mini ITX |
| Component for |
PC |
| Audio |
|---|
| Audio output channels |
7.1 channels |
| Performance |
|---|
| Number of HDDs supported |
4 |
| Supported storage drive types |
HDD & SSD |
| Motherboard chipset family |
Intel |
| Motherboard chipset |
Intel B860 |
| RAID levels |
0, 1, 5, 10 |
| Windows operating systems supported |
Windows 11 |
| Audio output channels |
7.1 channels |
| Motherboard form factor |
mini ITX |
| Component for |
PC |
| Processor |
|---|
| Processor manufacturer |
Intel |
| Compatible processor series |
Intel Core Ultra (Series 2) |
| Processor socket |
LGA 1851 (Socket V1) |
| Memory |
|---|
| Number of memory slots |
2 |
| Memory slots type |
DIMM |
| Supported memory types |
DDR5-SDRAM |
| Memory channels |
Dual-channel |
| Maximum internal memory |
128 GB |
| Unbuffered memory |
Yes |
| Supported memory clock speed (max) |
9066 MHz |
| ECC сompatibility |
Non-ECC |
| Storage controllers |
|---|
| Number of HDDs supported |
4 |
| Supported storage drive types |
HDD & SSD |
| Supported storage drive interfaces |
M.2, SATA III |
| RAID levels |
0, 1, 5, 10 |
| Number of storage drives supported |
6 |
| RAID support |
Yes |
| Graphics |
|---|
| Parallel processing technology support |
Not supported |
| On-board graphics card |
No |

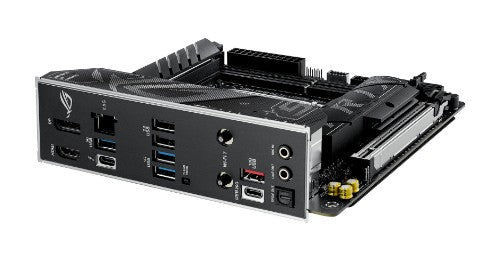

| Rear panel I/O ports |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
1 |
| USB 2.0 ports quantity |
2 |
| VGA (D-Sub) ports quantity |
0 |
| Thunderbolt ports quantity |
1 |
| S/PDIF out port |
Yes |
| Microphone in |
Yes |
| HDMI ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| DVI-D ports quantity |
0 |
| DisplayPorts quantity |
1 |
| USB 3.2 Gen 2x2 Type-C ports quantity |
1 |
| Network |
|---|
| Ethernet LAN |
Yes |
| Wi-Fi |
Yes |
| Ethernet interface type |
2.5 Gigabit Ethernet |
| Bluetooth |
Yes |
| Bluetooth version |
5.4 |
| Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
| Features |
|---|
| Motherboard chipset family |
Intel |
| Motherboard chipset |
Intel B860 |
| Windows operating systems supported |
Windows 11 |
| Audio output channels |
7.1 channels |
| Motherboard form factor |
mini ITX |
| Component for |
PC |
| Audio chip |
Realtek ALC1220P |
| Product colour |
Multicolor |
| Expansion slots |
|---|
| Number of M.2 (M) slots |
2 |
| PCI Express x16 (Gen 5.x) slots |
1 |
| BIOS |
|---|
| BIOS type |
UEFI AMI |
| BIOS memory size |
256 Mbit |
| Clear CMOS button |
Yes |
| Packaging data |
|---|
| Package width |
8.98" (228 mm) |
| Package depth |
7.36" (187 mm) |
| Package height |
3.78" (96 mm) |
| Package weight |
3.24 lbs (1.47 kg) |
| Software |
|---|
| Windows operating systems supported |
Windows 11 |
| Weight & dimensions |
|---|
| Package width |
8.98" (228 mm) |
| Package depth |
7.36" (187 mm) |
| Package height |
3.78" (96 mm) |
| Package weight |
3.24 lbs (1.47 kg) |
| Weight |
28.7 oz (812.6 g) |
| Width |
6.69" (170 mm) |
| Depth |
6.69" (170 mm) |
| Other features |
|---|
| Package width |
8.98" (228 mm) |
| Package depth |
7.36" (187 mm) |
| Package height |
3.78" (96 mm) |
| Package weight |
3.24 lbs (1.47 kg) |
| mSATA ports quantity |
0 |
| Weight |
28.7 oz (812.6 g) |
