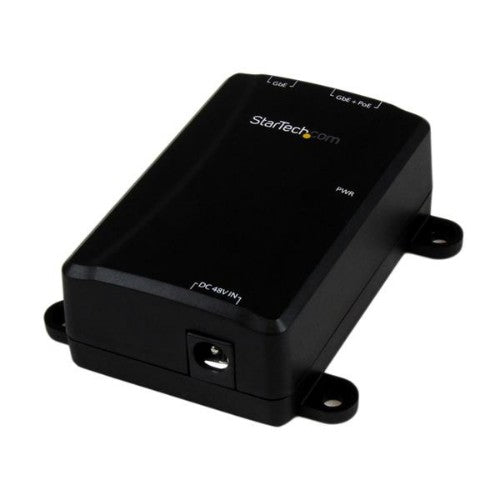

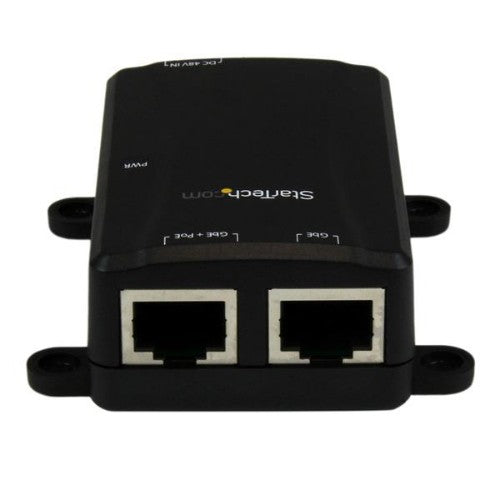

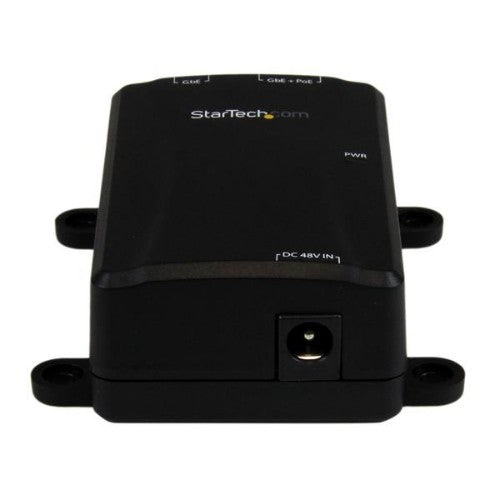

StarTech.com POEINJ1G PoE adapter Fast Ethernet, Gigabit Ethernet 48 V

StarTech.com 1 Port Gigabit Midspan - PoE+ Injector - 802.3at and 802.3af - Wall-Mountable Power over Ethernet Injector Adapter

Description

This Gigabit Power over Ethernet (PoE+) injector supplies power and data connectivity to a Gigabit PoE-compliant device using standard Ethernet cable, at distances of up to 100 m (330 ft.).

The PoE midspan is a cost-effective alternative to upgrading your existing network switch to a PoE-capable model.

Convenience and cost savings
This versatile PoE injector lets you connect a PoE-powered device (PD) to a non-PoE network switch, so you can avoid the expense and aggravation of replacing your existing switch with a PoE-enabled model. It supplies up to 30 watts of power, so you can easily power and access a high-power PoE-compliant device, such as an IP camera or a wireless access point (WAP), using traditional copper (RJ45) Ethernet cable. The midspan injector makes it easy to extend data and power connectivity to your PoE+ device across long distances, even in a remote location where a typical power outlet isn’t available.

Easy to set up in mixed environments
You can integrate this compact injector discreetly into a variety of environments. It features a surface-mountable housing that’s perfect for installing on walls or under a desk, but it’s also palm-sized, for use on desktop surfaces.

Plus, with plug-and-play operation, you can enjoy fast and hassle-free setup without disrupting your workflow.

Intelligent power allocation
Not sure which class your PoE device is? The Gigabit PoE+ injector automatically detects the power requirements of your connected PoE PD, and delivers the appropriate level of power without damaging your device.

The POEINJ1G is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Specifications

Network
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Duplex system	Full
Power over Ethernet (PoE)	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Cabling technology	10Base-T, 100Base-TX, 1000Base-T
Cable types supported	Cat5
Power over Ethernet (PoE) voltage	48 V
Features
Plug and Play	Yes
Maximum operating distance	3937" (100 m)
Product colour	Black
LED indicators	Power
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Certification	RoHS, CE, FCC
Ports & interfaces
DC-in jack	Yes
Ethernet LAN (RJ-45) ports	2
Power
Output power	30 W
Output current	0.64 A
Power over Ethernet (PoE) voltage	48 V
Input voltage	100 - 240 V
Input current	0.75 A
Certificates
Certification	RoHS, CE, FCC
Operational conditions
Storage temperature (T-T)	-40 - 85 °C
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Weight	1.83 oz (52 g)
Dimensions (WxDxH)	2.48 x 2.76 x 0.984" (63 x 70 x 25 mm)
Package weight	35.1 oz (995 g)
Package width	9.06" (230 mm)
Package height	2.99" (76 mm)
Packaging content
Power cord included	Yes
Manual	Yes
Packaging data
Package weight	35.1 oz (995 g)
Package width	9.06" (230 mm)
Package height	2.99" (76 mm)
Technical details
Package width	9.06" (230 mm)
Package height	2.99" (76 mm)
Power over Ethernet (PoE)	Yes
Input voltage	100 - 240 V
Input current	0.75 A
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Harmonized System (HS) code	85044095
Indication
LED indicators	Power
Logistics data
Harmonized System (HS) code	85044095
