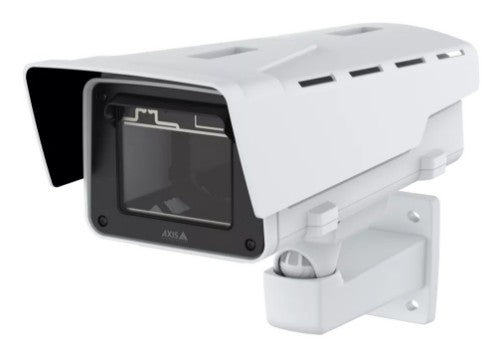

Axis TQ1819-E, Housing & mount, Universal, Black, White, Axis, P1385, P1385-B, P1387, P1387-B, P1388, P1388-B, Q1656, Q1656-B, Q1715, Q1728, IEEE 802.3at
Description
Axis TQ1819-E. Type: Housing & mount, Placement supported: Universal, Product color: Black, White. Input voltage: 10 - 28 V, Power consumption (typical): 2 W, Power consumption (max): 25.5 W. Width: 7.01" (178 mm), Depth: 17.4" (441 mm), Height: 11.9" (303 mm). Quantity per pack: 1 pc(s)
Specifications
| Features |
|---|
| Protection features |
Impact resistant, Weather resistant, Wind resistant |
| Brand compatibility |
Axis |
| Compatibility |
P1385, P1385-B, P1387, P1387-B, P1388, P1388-B, Q1656, Q1656-B, Q1715, Q1728 |
| Type |
Housing & mount |
| Placement supported |
Universal |
| Product colour |
Black, White |
| Certification |
CSA, CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A, EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, RCM AS/NZS CISPR 32 Class A, ICES(A)/NMB(A), VCCI Class A, FCC Teil 15 Abschnitt B Klasse A, IEC 62236-4 |
| International Protection (IP) code |
IP66, IP67 |
| Networking standards |
IEEE 802.3at |
| IK code |
IK10 |
| Power |
|---|
| Input voltage |
10 - 28 V |
| Power consumption (typical) |
2 W |
| Power consumption (max) |
25.5 W |
| Power source type |
PoE |
| Technical details |
|---|
| Compatibility |
P1385, P1385-B, P1387, P1387-B, P1388, P1388-B, Q1656, Q1656-B, Q1715, Q1728 |
| Type |
Housing & mount |
| Placement supported |
Universal |
| International Protection (IP) code |
IP66, IP67 |
| Doesn't contain |
BFR, CFR, PVC |
| Compliance certificates |
CE, RCM, REACH, RoHS, Trade Agreements Act (TAA), UKCA, UL, VCCI, cUL |
| Weight & dimensions |
|---|
| Width |
7.01" (178 mm) |
| Weight |
9.04 lbs (4.1 kg) |
| Height |
11.9" (303 mm) |
| Depth |
17.4" (441 mm) |
| Colour |
|---|
| Product colour |
Black, White |
| Packaging data |
|---|
| Quantity per pack |
1 pc(s) |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
10 - 100% |
| Storage temperature (T-T) |
-40 - 60 °C |
| Operating temperature (T-T) |
-40 - 60 °C |
| Certificates |
|---|
| Certification |
CSA, CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A, EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, RCM AS/NZS CISPR 32 Class A, ICES(A)/NMB(A), VCCI Class A, FCC Teil 15 Abschnitt B Klasse A, IEC 62236-4 |
