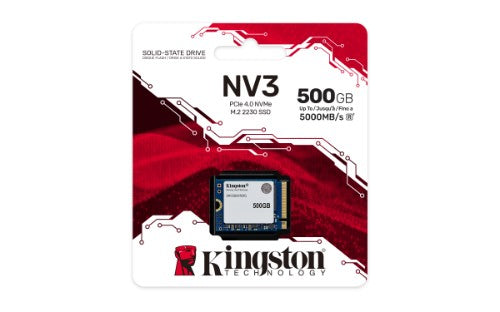

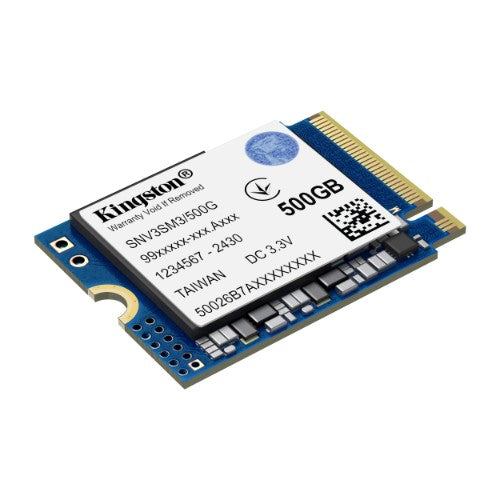

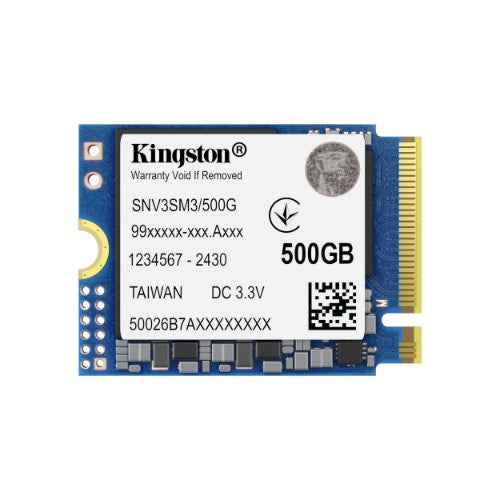

500G NV3 M.2 2230 NVMe SSD
Key Features
- Gen 4x4 NVMe PCIe performance
- Ideal for high-speed, low-power storage
- Capacities up to 4TB**
Description
For high-speed, low-power storage needsKingston’s NV3 PCIe 4.0 NVMe SSDs are next-gen storage solutions powered by a Gen 4x4 NVMe controller, delivering read/write speeds of up to 6,000/5,000MB/s*. They come in both compact, single-sided M.2 2280 (22x80mm) and 2230 (22x30mm) sizes to expand storage in small-form-factor systems like laptops and handheld gaming consoles*****. They offer lower power consumption and reduced heat, optimising your system's performance without compromising value. Available in capacities from 500GB– 4TB** to give you all the space you need for applications, documents, photos, videos, games and more.
Gen 4x4 NVMe PCIe performanceUpgrade your system with read/write speeds up to 6,000/5,000MB/s*.
Small size, big performanceNV3 2280 and 2230 easily integrate into thin laptops and ultra-small PCs with M.2 connectors and limited space.
Increased storage spaceAvailable in a variety of high capacities up to 4TB**, providing ample space to store files, videos, documents, and games with room to spare.
Store more, play moreWith NV3 2230 upgrade compatible handheld gaming systems to get in the game faster*****.
Specifications
| Hard drive |
|---|
| PCI Express interface data lanes |
x4 |
| SSD capacity |
500 GB |
| Memory type |
3D NAND |
| Data transmission |
|---|
| Read speed |
5000 MB/s |
| Write speed |
3000 MB/s |
| Endurance |
|---|
| Mean time between failures (MTBF) |
200000 h |
| Features |
|---|
| Interface |
PCI Express 4.0 |
| Component for |
Notebook/Game console |
| NVMe |
Yes |
| TBW rating |
160 |
| PCI Express interface data lanes |
x4 |
| SSD capacity |
500 GB |
| Read speed |
5000 MB/s |
| Write speed |
3000 MB/s |
| Memory type |
3D NAND |
| Mean time between failures (MTBF) |
200000 h |
| SSD form factor |
M.2 |
| M.2 SSD size |
2230 (22 x 30 mm) |
| Performance |
|---|
| Interface |
PCI Express 4.0 |
| Component for |
Notebook/Game console |
| NVMe |
Yes |
| TBW rating |
160 |
| PCI Express interface data lanes |
x4 |
| SSD capacity |
500 GB |
| Read speed |
5000 MB/s |
| Write speed |
3000 MB/s |
| Memory type |
3D NAND |
| Mean time between failures (MTBF) |
200000 h |
| Design |
|---|
| Component for |
Notebook/Game console |
| SSD form factor |
M.2 |
| Weight & dimensions |
|---|
| Width |
1.18" (30 mm) |
| Weight |
0.0917 oz (2.6 g) |
| Height |
0.0906" (2.3 mm) |
| Depth |
0.866" (22 mm) |
| Package width |
4" (101.6 mm) |
| Package depth |
0.32" (8.13 mm) |
| Package height |
4.5" (114.3 mm) |
| Package weight |
0.421 oz (11.9 g) |
| Packaging data |
|---|
| Package width |
4" (101.6 mm) |
| Package depth |
0.32" (8.13 mm) |
| Package height |
4.5" (114.3 mm) |
| Package weight |
0.421 oz (11.9 g) |
| Master (outer) case width |
4.75" (120.7 mm) |
| Master (outer) case length |
6.75" (171.4 mm) |
| Master (outer) case height |
4.5" (114.3 mm) |
| Master (outer) case gross weight |
13.6 oz (384.1 g) |
| Products per master (outer) case |
25 pc(s) |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Non-operating vibration |
20 G |
| Technical details |
|---|
| Interface |
PCI Express 4.0 |
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Non-operating vibration |
20 G |
| Country of origin |
China, Taiwan |
| SSD form factor |
M.2 |
| Logistics data |
|---|
| Master (outer) case width |
4.75" (120.7 mm) |
| Master (outer) case length |
6.75" (171.4 mm) |
| Master (outer) case height |
4.5" (114.3 mm) |
| Master (outer) case gross weight |
13.6 oz (384.1 g) |
| Products per master (outer) case |
25 pc(s) |
| Country of origin |
China, Taiwan |
| Other features |
|---|
| Country of origin |
China, Taiwan |
