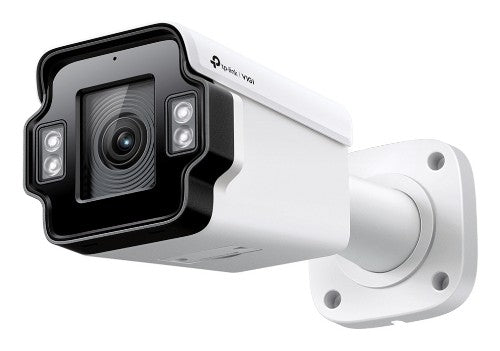

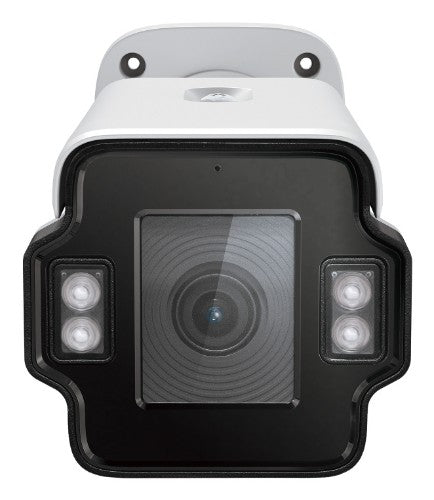

TP-Link VIGI InSight S345ZI Bullet IP security camera Outdoor 2688 x 1520 pixels Wall

InSight S345ZI VIGI 4MP Outdoor IR Motorized Varifocal Bullet Network Camera

Key Features

• 5X Optical Zoom for Easy Installation and Monitoring
• 4MP Super-High Definition and IR Range Up to 60m (197ft)
• Human & Vehicle Classification
• Smart Detection
• Smart Video Enhancement Technology
• Audio and Alarm Interface Available
• IP67 Weatherproof and IK10 Vandal Proof
• H.265+ Compression Technology

Description

See Every Detail Up Close

4MP Outdoor IR Motorized Varifocal Bullet Network Camera

Motorized Varifocal

By adjusting the field of view (FOV), this feature assists you in concentrating on areas of interest, minimizing invalid detection zones, and enhancing target clarity.

Greater Clarity While Zooming

Human & Vehicle Classification

Distinguish humans and vehicles from other objects and receive more accurate event notifications.

Smart Video Enhancement Technology

- True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.
- Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.
- 3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.
- White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.

Efficient H.265+ Compression Technology

H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.**

Specifications

Performance
Infrared (IR) cut-off filter	Yes
Remote viewing	Yes
Type	IP security camera
Connectivity technology	Wired
Placement supported	Outdoor
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Dynamic range	120 dB
Design
Weatherproof	Yes
Form factor	Bullet
Product colour	White
Mounting type	Wall
Protection features	Waterproof
International Protection (IP) code	IP67
Housing material	Metal
Camera
Minimum illumination	0 lx
Tilt angle range	0 - 90°
Pan range	0 - 360°
Angle of rotation	360°
Camera shutter speed	1/3 to 1/10000
Lens viewing angle, horizontal	29.6–102
Lens viewing angle, vertical	16.8–53.8
Lens viewing angle, diagonal	34.1–122.8
Progressive scan	Yes
Image sensor
Sensor type	CMOS
Progressive scan	Yes
Optical sensor size	1/2.9"
Lens system
Number of lenses	1
Maximum aperture number	1.6
Recognize distance (wide)	511.8" (13 m)
Recognize distance (tele)	1614.2" (41 m)
Observe distance (wide)	1102.4" (28 m)
Observe distance (tele)	3385.8" (86 m)
Identify distance (wide)	275.6" (7 m)
Identify distance (tele)	826.8" (21 m)
Detect distance (wide)	2598.4" (66 m)
Detect distance (tele)	8149.6" (207 m)
Focus	Motorized
Zoom capability	Yes
Optical zoom	5x
Focal length range	2.7 - 13.5 mm
Night vision
Night vision	Yes
Night vision distance	10 m
LED type	IR
Number of illumination LEDs	4
Infra-red wavelength	850 nm
Video
Noise reduction	Yes
Image quality adjustment	Brightness, Contrast, Mirror, Saturation, Sharpness
Smart IR	Yes
Region of Interest (ROI) encoding	Yes
Highlight Compensation (HLC)	Yes
Digital Wide Dynamic Range (DWDR)	Yes
Bit rate control	Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate	Main Stream: 256 Kbps to 6 Mbps, Sub-Stream: 512 Kbps to 1024 Kbps
Back Light Compensation (BLC)	Yes
Noise reduction technology	3D noise reduction
Video compression formats	H.264, H.264+, H.265, H.265+
Maximum resolution	2688 x 1520 pixels
Supported graphics resolutions	1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440, 2688 x 1520
Video streaming	Yes
Total megapixels	4 MP
Video recording	Yes
Audio
Audio input channels	1.0 channels
Audio output channels	1.0 channels
Sample rate	8 kHz
Signal-to-Noise Ratio (SNR)	52 dB
Built-in microphone	Yes
Audio system	2-way
Audio formats supported	G.711 A-law
Audio detection	Yes
Bit rate range	0 - 64 Kbit/s
Number of microphones	1
Network
Bluetooth	No
Networking standards	IEEE 802.3af, IEEE 802.3at
Ethernet LAN	Yes
Wi-Fi	No
Supported network protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
Number of simultaneous live view channels	6 channels
Live view	Yes
Storage
Maximum memory card size	512 GB
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes
Connectivity technology	Wired
Technical details
Focus	Motorized
Video compression formats	H.264, H.264+, H.265, H.265+
Type	IP security camera
Form factor	Bullet
Placement supported	Outdoor
Product colour	White
Mounting type	Wall
Protection features	Waterproof
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Reset button	Yes
Progressive scan	Yes
Security
Alert notification type	Push notification
Motion sensor	Yes
Video motion detection	Yes
IP address filtering	Yes
HTTPS encryption	Yes
Password protection	Yes
Mirror	Yes
Built-in siren	Yes
Human and vehicle targets classification	Yes
Digest authentication	Yes
Alarm input channels	1
Alarm output channels	1
Material
Housing material	Metal
Management features
Web browser	Yes
Web-based management	Yes
Reset button	Yes
Cloud-managed	Yes
Power
Power source type	DC, PoE
Power consumption (max)	10.8 W
Power consumption (Power over Ethernet (PoE))	12 W
DC-in jack	Yes
DC output voltage	12
Certificates
International Protection (IP) code	IP67
Operational conditions
Operating temperature (T-T)	-30 - 60 °C
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Weight & dimensions
Package type	Box
Length	10.1" (256 mm)
Width	3.94" (100 mm)
Height	3.98" (101 mm)
Weight	2.29 lbs (1.04 kg)
Packaging data
Package type	Box
Packaging content
Number of cameras	1
Package type	Box
Other features
Focus	Motorized
Video compression formats	H.264, H.264+, H.265, H.265+
