150 W, 47 Hz - 19 kHz, 90 dB, 9.1 kg
Key Features
- Consistent 120° broadband pattern control for exceptional coverage
- Coaxial design featuring: Kevlar-reinforced 165 mm (6.5 in) woofer 25 mm (1 in) compression driver
- Extraordinary clarity for speech and vocals with extended frequency response for music
- 150 Watts Power Handling
- Advanced high-slope crossover network for constant coverage and smooth, natural midrange
- Integrated back can with clean, contemporary grille
Description
The JBL Professional Control 226C/T is a premium in-ceiling professional loudspeaker designed for applications requiring superior quality sound in ceilingmount applications. Delivering exceptional next-generation performance in a medium format coaxial point source design, the Control 226C/T incorporates breakthrough performance features such as best-in-class pattern control to provide a consistent sound throughout the listening area. Especially wide coverage allows fewer speakers to cover the space, reducing both the material and labor cost for the installation.

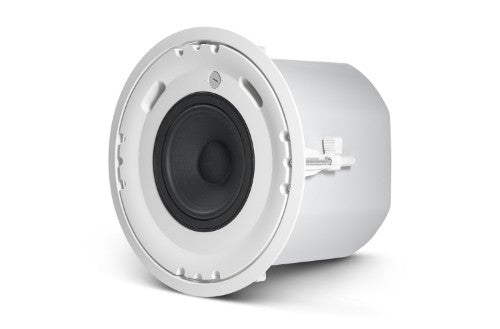

The Control 226C/T features a 165 mm (6.5 in) Kevlar-reinforced low frequency driver coupled with a 25 mm (1 in) exit titanium compression driver for outstanding reliability and performance. The system is complete with a pre-attached back can and is designed for years of maintenance free use.

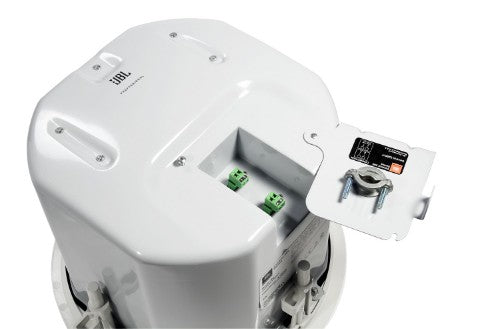

Easy to install, the Control 226C/T features JBL Professional’s proven C-Ring with Tile Rail suspension system. Installation can be accomplished from beneath the ceiling structure for instances when access above the ceiling tile is not possible. Additionally, the removable multi-pin locking connector, with secure screw-down terminals, allows for prewiring the input wires for easy clip-on convenience during installation.
A top quality, low saturation 68 Watt multi-tap transformer comes pre-attached on the Control 226C/T enabling the system to be used on 70V or 100V distributed speaker lines. The system can be used in either 8 ohm (low impedance) or transformer mode by selecting the desired function via the baffle mounted impedance switch.

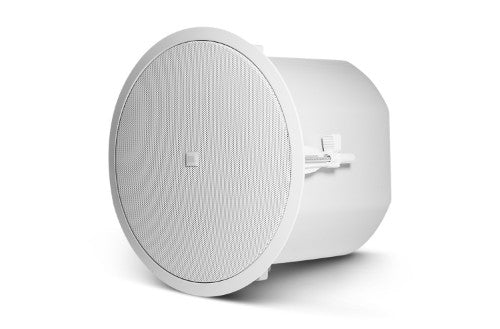

The clean, contemporary look of the Control 226C/T’s grille is designed to suit a variety of settings, offering a simple, elegant appearance that fits into a wide variety of décors.
Specifications
| Loudspeakers |
|---|
| Speaker placement |
In-wall/in-ceiling |
| Number of drivers |
1 |
| Tweeter |
Yes |
| Woofer |
Yes |
| Tweeter diameter (imperial) |
1" |
| Woofer diameter (imperial) |
6.5" |
| Tweeter diameter |
0.984" (2.5 cm) |
| Driver diaphragm material |
Kevlar |
| Woofer diameter |
6.5" (16.5 cm) |
| Audio |
|---|
| Frequency range |
47 - 19000 Hz |
| Impedance |
8 Ω |
| Sensitivity |
90 dB |
| Crossover frequency |
2.2 Hz |
| RMS rated power |
150 W |
| Performance |
|---|
| Product colour |
White |
| Ports & interfaces |
|---|
| Connectivity technology |
Wired |
| Binding post |
Yes |
| Weight & dimensions |
|---|
| Width |
13" (330 mm) |
| Depth |
13" (330 mm) |
| Diameter |
13" (33 cm) |
| Weight |
20.1 lbs (9.1 kg) |
| Packaging data |
|---|
| Package weight |
52.7 lbs (23.9 kg) |
