Prime Radeon RX 9060 XT OC Edition 8GB GDDR6
Description
Primed for PowerExperience Primal performance with the Prime Radeon™ RX 9060 XT graphics card featuring a compact 2.5-slot design for expansive compatibility, enhanced by a triple-fan setup for supreme cooling.
Cooling
2.5-slot DesignThe Prime Radeon™ RX 9060 XT features a 2.5 slot design with a carefully arranged layout for the shroud, heatsink and heat pipes to let the three Axial-tech fans leverage chassis side-panel ventilation and deliver optimal thermal performance.
Axial-tech UpgradesThree tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure for lower temperatures, less noise and higher performance.
0dB TechnologyAll three fans come to a standstill when GPU temperatures are below 55°C, letting you play less demanding games or perform light tasks in relative silence. Fans start up again when temperatures are over 60°C, establishing a speed curve that balances performance and acoustics for work or play.
Dual Ball Fan BearingsDifferent bearing types have unique pros and cons. Dual-ball bearings excel at durability and can last up to twice as long as sleeve bearing designs.

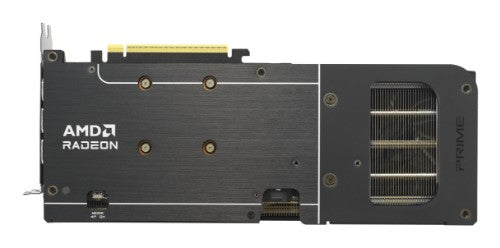

Vented BackplateLarge backplate vents significantly enhance heat dissipation, helping to keep the GPU cooler during intense tasks. This additional airflow helps ensure optimal temperatures, boosting performance, longevity and stability by defending against overheating and thermal throttling.
MaxContact DesignMaxContact is a special ASUS manufacturing process that effectively expands the surface area of the heat spreader that sits atop the GPU by 5%, compared to traditional designs. This improves temperatures by up to 2°C, in concert with an extensive heatsink array and powerful Axial-tech fans.
Specifications
| Processor |
|---|
| Graphics processor family |
AMD |
| Processor boost clock speed |
3310 MHz |
| Stream processors |
2048 |
| Parallel processing technology support |
Not supported |
| Maximum displays per videocard |
3 |
| CUDA |
No |
| Maximum resolution |
7680 x 4320 pixels |
| Graphics processor |
Radeon RX 9060 XT |
| Memory |
|---|
| Discrete graphics card memory |
8 GB |
| Data transfer rate |
20 Gbit/s |
| Memory bus |
128 bit |
| Graphics card memory type |
GDDR6 |

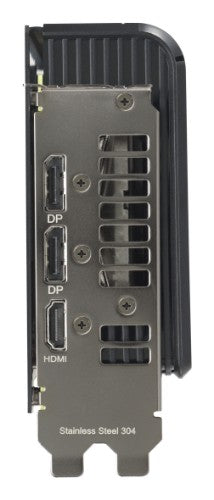

| Ports & interfaces |
|---|
| HDMI version |
2.1b |
| Mini HDMI ports quantity |
0 |
| Mini DisplayPorts quantity |
0 |
| HDMI ports quantity |
1 |
| DisplayPort version |
2.1a |
| DisplayPorts quantity |
2 |
| DVI-I ports quantity |
0 |
| DVI-D ports quantity |
0 |
| Interface type |
PCI Express 5.0 |
| Thunderbolt 3 ports quantity |
0 |
| Video |
|---|
| OpenGL version |
4.6 |
| HDMI version |
2.1b |
| HDCP |
Yes |
| Dual Link DVI |
No |
| Performance |
|---|
| OpenGL version |
4.6 |
| HDCP |
Yes |
| Dual Link DVI |
No |
| TV tuner integrated |
No |
| HDCP version |
2.3 |
| Overclocked (OC) edition |
Yes |
| Design |
|---|
| Number of fans |
3 fan(s) |
| Cooling type |
Active |
| Form factor |
Full-Height/Full-Length (FH/FL) |
| Product colour |
Black |
| Number of slots |
2.5 |
| Cooling technology |
ASUS Axial-tech |
| Power |
|---|
| Supplementary power connectors |
1x 8-pin |
| Minimum system power supply |
550 W |
| Weight & dimensions |
|---|
| Number of slots |
2.5 |
| Weight |
30.7 oz (871 g) |
| Height |
4.96" (126 mm) |
| Depth |
1.97" (50 mm) |
| Length |
12" (304 mm) |
| Technical details |
|---|
| Cooling type |
Active |
| Form factor |
Full-Height/Full-Length (FH/FL) |
| Product colour |
Black |
| TV tuner integrated |
No |
| System requirements |
|---|
| Minimum system power supply |
550 W |
| Packaging data |
|---|
| Package type |
Box |
| Package width |
15.9" (405 mm) |
| Package height |
3.48" (88.5 mm) |
| Package depth |
9.17" (233 mm) |
| Package weight |
3.28 lbs (1.49 kg) |
| Manual |
Yes |
| Packaging content |
|---|
| Manual |
Yes |
