NVIDIA GeForce RTX 5070, 16GB GDDR7, 256 bit, PCI Express x16 5.0, 1 x HDMI (2.1b), 3 x DP (2.1b), CUDA, DirectX 12 Ultimate, OpenGL 4.6, 300W
Key Features
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- SFF-Ready Enthusiast GeForce Card
- Core Clocks:
- Extreme Performance: 2497 MHz (MSI Center)
- Boost: 2482 MHz
- TORX Fan 5.0: Fan blades linked by ring arcs work to stabilize and maintain high-pressure airflow
- Nickel-plated Copper Baseplate: Heat from the GPU and memory is swiftly captured by a nickel-plated copper baseplate and transferred
- Core Pipes feature a square design to maximize contact with the GPU baseplate for optimal thermal management

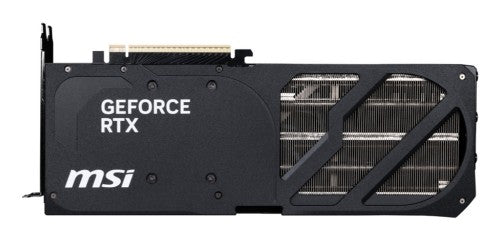

- Reinforcing Backplate: The reinforcing backplate features an airflow vent that allows exhaust air to directly pass through
- MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time
- Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world
Description
TAKE THE ESSENTIALSMSI SHADOW brings a performance-focused design that delivers the gaming experience players want, making it the ideal choice when upgrading or building a gaming rig.

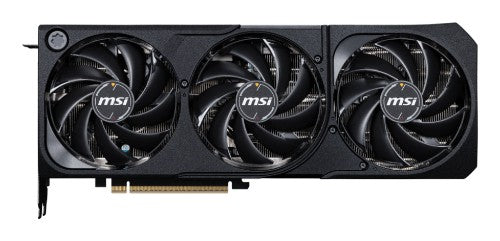

Triple-Fan Thermal DesignThree fans on a large heatsink deliver both superior and quieter cooling.
HARDENING EVERY DETAIL*All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate.
MSI CENTERBRINGING IT ALL TOGETHERMSI's exclusive MSI Center software empowers you to maximize your MSI products. Monitor, tweak, and optimize in real-time with just a few clicks. One of its standout features, AI Tuning, intelligently adjusts your system to meet AI-oriented requirements.
AFTERBURNERPRECISION CONTROLS,UNLIMITED POWERMSI Afterburner is the world's leading graphics card overclocking software, offering complete control and real-time system monitoring. It’s free and compatible with most graphics cards.
MSI APP PLAYERSEAMLESS GAMING EXPERIENCEDeveloped under an exclusive partnership with BlueStacks, the MSI APP Player provides a seamless gaming experience between mobile gaming and the PC.
Build Small. Play Big.You can pack high performance into a smaller footprint with this SFF-Ready Enthusiast GeForce card. Look for cases that are compatible with SFF-Ready Enthusiast GeForce Cards to get a sure fit and streamline your PC build.
Specifications
| Processor |
|---|
| Graphics processor family |
NVIDIA |
| Processor boost clock speed |
2482 MHz |
| Maximum displays per videocard |
4 |
| CUDA cores |
8960 |
| CUDA |
Yes |
| Maximum resolution |
7680 x 4320 pixels |
| Graphics processor |
GeForce RTX 5070 Ti |
| Memory |
|---|
| Discrete graphics card memory |
16 GB |
| Data transfer rate |
28 Gbit/s |
| Memory bandwidth (max) |
28 GB/s |
| Memory bus |
256 bit |
| Graphics card memory type |
GDDR7 |
| Ports & interfaces |
|---|
| HDMI version |
2.1b |
| Mini HDMI ports quantity |
0 |
| Mini DisplayPorts quantity |
0 |
| HDMI ports quantity |
1 |
| DisplayPort version |
2.1b |
| DisplayPorts quantity |
3 |
| DVI-I ports quantity |
0 |
| DVI-D ports quantity |
0 |
| Interface type |
PCI Express x16 5.0 |
| Thunderbolt 3 ports quantity |
0 |
| Video |
|---|
| DirectX version |
12 Ultimate |
| OpenGL version |
4.6 |
| HDMI version |
2.1b |
| HDCP |
Yes |
| Dual Link DVI |
No |
| CUDA cores |
8960 |
| Performance |
|---|
| NVIDIA G-SYNC |
Yes |
| DirectX version |
12 Ultimate |
| OpenGL version |
4.6 |
| HDCP |
Yes |
| Dual Link DVI |
No |
| TV tuner integrated |
No |
| Overclocked (OC) edition |
Yes |
| Design |
|---|
| Number of fans |
3 fan(s) |
| Cooling type |
Active |
| Form factor |
Full-Height/Full-Length (FH/FL) |
| Product colour |
Black |
| Number of slots |
2 |
| Cooling technology |
MSI TORX FAN 5.0 |
| SFF ready |
Yes |
| Power |
|---|

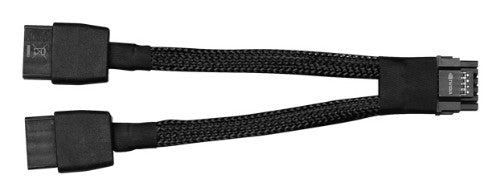

| Supplementary power connectors |
1x 16-pin |
| Power consumption (typical) |
300 W |
| Minimum system power supply |
750 W |
| Weight & dimensions |
|---|
| Number of slots |
2 |
| Weight |
35.1 oz (994 g) |
| Height |
4.76" (121 mm) |
| Depth |
1.93" (49 mm) |
| Length |
11.9" (303 mm) |
| Technical details |
|---|
| Cooling type |
Active |
| Form factor |
Full-Height/Full-Length (FH/FL) |
| Product colour |
Black |
| TV tuner integrated |
No |
| System requirements |
|---|
| Minimum system power supply |
750 W |
| Packaging data |
|---|
| Package type |
Box |
| Package weight |
3.24 lbs (1.47 kg) |
| Logistics data |
|---|
| Products per shipping (inner) case |
1 pc(s) |
