Tripp Lite DDR1732DAL monitor mount / stand 32" Desk Silver

Dual-Display Gas-Arm Mount for 13” to 34” Monitors - Clamp or Grommet, USB, Audio Ports

Key Features

• Sturdy aluminum frame clamps securely to your desk for mounting twin displays
• Also includes grommet hardware as another oprion to mount to your desk
• -90° to +90° tilt, -90° to +90° swivel and 90° rotation help you find the perfect angle
• Base includes a USB 3.0 port and dual 3.5 mm audio ports for connecting peripherals
• Durable aluminum flex arms blend into any decor and support up to 19.8 lb. each
• VESA compliance ensures compatibility with 75 x 75 and 100 x 100 mounting patterns

Description

Rugged Aluminum Desk Clamp Lifts Your Monitors Above Your Work Area’s Surface
This VESA-compliant desktop clamp omounts two flat- or curved-screen displays above your desk, table or workstation, allowing you to free up valuable surface space. Recommended for home or office use, the DDR1732DAL will fit most flat- and curved-panel monitors from 13 to 34 inches. The durable aluminum frame tolerates frequent adjustments, and the two swiveling aluminum arms support up to 19.8 pounds (8.9 kg) apiece. Instead of clamping the unit to your desktop, you may install it using the included grommet. All hardware is included.

Swivel, Tilt and Rotate the Dual Screens to Find the Most Comfortable Viewing Angles
The premium gas arm adjust independently to optimize viewing angles, minimize glare and improve ergonomics. To minimize screen glare, reduce eye fatigue and increase viewing comfort, the mount features -90° to +90° tilt, -90° to +90° swivel and 90° rotation for positioning your screens. Easy screen adjustment lets you quickly find just the right angles without interrupting your workday.

Connect Your Favorite Devices to Help You Get Through the Workday

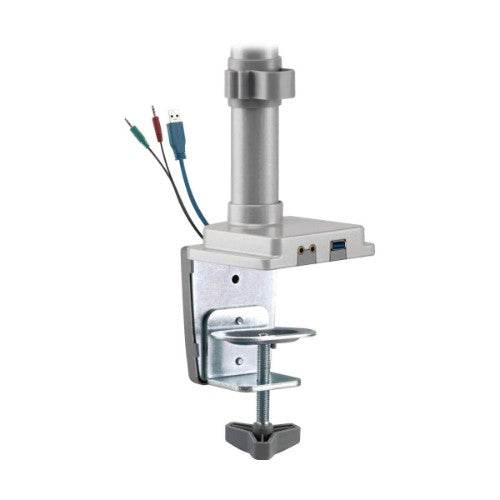

The base of the DDR1732DAL features a USB 3.0 port for connecting a smartphone or other USB device. Two 3.5 mm audio jacks allow connection of a microphone and speakers.

VESA-Compliant Mounting Ensures Display Compatibility
VESA (Video Electronics Standards Association) promotes uniformity in the video electronics industry by developing standards for TVs and monitors. For hassle-free display compatibility, this monitor stand supports the following VESA mounting hole patterns: 75 x 75 and 100 x 100.

Specifications

Mounting
Maximum weight capacity (per display)	19.8 lbs (9 kg)
Minimum screen size	17"
Panel mounting interface	75 x 75,100 x 100 mm
Number of displays supported	2
Mounting type	Desk
Minimum VESA mount	2.95 x 2.95" (75 x 75 mm)
Maximum VESA mount	3.94 x 3.94" (100 x 100 mm)
Mounting	Clamp/Bolt-through
Maximum weight capacity	39.7 lbs (18 kg)
Maximum screen size	32"
Suitable for TV	Yes
Ergonomics
Cable management	Yes
Swivel angle range	-90 - 90°
Tilt angle range	-90 - 90°
Angle of rotation	180°
Tilt adjustment	Yes
Design
Product colour	Silver
Housing material	Steel
Technical details
Mounting type	Desk
Product colour	Silver
Cable management	Yes
Weight & dimensions
Width	22.1" (561.3 mm)
Depth	4.9" (124.5 mm)
Height	12.8" (325.1 mm)
Weight	12.8 lbs (5.81 kg)
Package width	11.8" (299.7 mm)
Package depth	6.5" (165.1 mm)
Package height	17.6" (447 mm)
Package weight	16 lbs (7.26 kg)
Packaging data
Package width	11.8" (299.7 mm)
Package depth	6.5" (165.1 mm)
Package height	17.6" (447 mm)
Package weight	16 lbs (7.26 kg)
Manual	Yes
Packaging content
Manual	Yes
Mounting kit	Yes
Logistics data
Master (outer) case width	18.7" (475 mm)
Master (outer) case length	12.8" (325.1 mm)
Master (outer) case height	18.3" (464.8 mm)
Master (outer) case gross weight	48.5 lbs (22 kg)
Products per master (outer) case	3 pc(s)
Master (outer) case GTIN (EAN/UPC)	10037332262506
Country of origin	China
Harmonized System (HS) code	85299097
Other features
Mounting type	Desk
Mounting	Clamp/Bolt-through
Country of origin	China
