NVIDIA GeForce RTX 5080, 16GB GDDR7, 256 bit, PCI Express x16 5.0, 1 x HDMI (2.1b), 3 x DP (2.1a), CUDA, DirectX 12 Ultimate, OpenGL 4.6, 360W
Key Features
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- SFF-Ready Enthusiast GeForce Card
- Core Clock:
- Extreme Performance: 2655 MHz (MSI Center)
- Boost: 2640 MHz

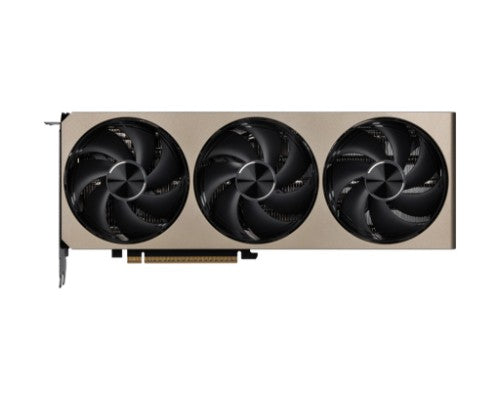

- STORMFORCE FAN: Seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise
- Nickel-plated Copper Baseplate: Heat from the GPU and memory is swiftly captured by a nickel-plated copper baseplate and transferred
- Core Pipes feature a square design to maximize contact with the GPU baseplate for optimal thermal management
- WAVE-CURVED 3.0: Additional efficiency is gained by adjusting the size of the wave edges under the fan motor and other spots where there is less airflow
- AIR ANTEGRADE FIN: Fins with a V-shaped cutout are located at the airflow passthrough to improve flow efficiency. Optimizing the inclination angle and increasing the wave notch shapes the air resistance towards the center, pushing out warm air faster like a nozzle

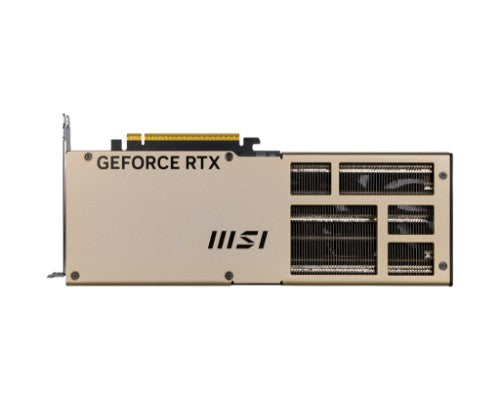

- Metal Backplate: A reinforcing metal backplate with airflow vents and thermal pads enhances cooling
- MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time
- Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world
Description
BIG VISION, SMALL FORMINSPIRE seamlessly fuses a sleek, compact design with cutting-edge performance, offering advanced capabilities while ensuring seamless compatibility with creative and professional builds.
Specifications
| Processor |
|---|
| Graphics processor family |
NVIDIA |
| Processor boost clock speed |
2640 MHz |
| Maximum displays per videocard |
4 |
| CUDA cores |
10752 |
| CUDA |
Yes |
| Maximum resolution |
7680 x 4320 pixels |
| Graphics processor |
GeForce RTX 5080 |
| Memory |
|---|
| Discrete graphics card memory |
16 GB |
| Memory bandwidth (max) |
30 GB/s |
| Memory bus |
256 bit |
| Graphics card memory type |
GDDR7 |

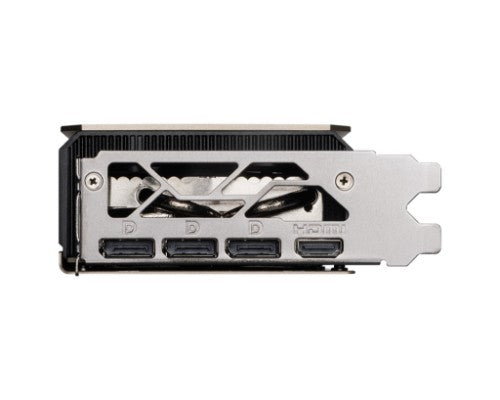

| Ports & interfaces |
|---|
| HDMI version |
2.1b |
| Mini HDMI ports quantity |
0 |
| Mini DisplayPorts quantity |
0 |
| HDMI ports quantity |
1 |
| DisplayPort version |
2.1a |
| DisplayPorts quantity |
3 |
| DVI-I ports quantity |
0 |
| DVI-D ports quantity |
0 |
| Interface type |
PCI Express x16 5.0 |
| Thunderbolt 3 ports quantity |
0 |
| Video |
|---|
| DirectX version |
12 Ultimate |
| OpenGL version |
4.6 |
| HDMI version |
2.1b |
| Dual Link DVI |
No |
| CUDA cores |
10752 |
| Performance |
|---|
| NVIDIA G-SYNC |
Yes |
| DirectX version |
12 Ultimate |
| OpenGL version |
4.6 |
| Dual Link DVI |
No |
| TV tuner integrated |
No |
| Overclocked (OC) edition |
Yes |
| Design |
|---|
| Number of fans |
3 fan(s) |
| Fan diameter |
4.72" (12 cm) |
| Cooling type |
Active |
| Form factor |
Full-Height/Full-Length (FH/FL) |
| Product colour |
Bronze |
| Power |
|---|

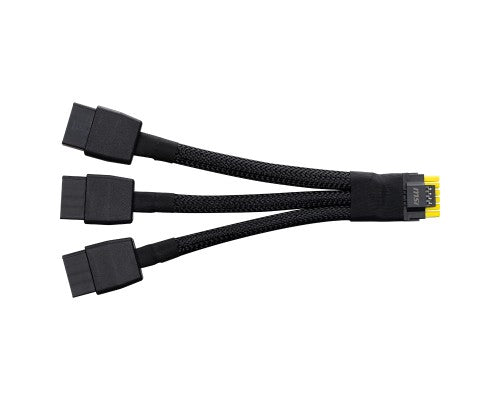

| Supplementary power connectors |
1x 16-pin |
| Power consumption (typical) |
360 W |
| Minimum system power supply |
850 W |
| Technical details |
|---|
| Cooling type |
Active |
| Form factor |
Full-Height/Full-Length (FH/FL) |
| Product colour |
Bronze |
| TV tuner integrated |
No |
| System requirements |
|---|
| Minimum system power supply |
850 W |
| Weight & dimensions |
|---|
| Weight |
33.5 oz (950 g) |
| Height |
4.41" (112 mm) |
| Depth |
1.97" (50 mm) |
| Length |
11.3" (288 mm) |
| Packaging data |
|---|
| Package type |
Box |
| Package weight |
3.17 lbs (1.44 kg) |
| Cables included |
Power |
| Packaging content |
|---|
| Cables included |
Power |
