E-ATX/ATX/mATX/ITX/EE-ATX/SSI-EEB/SSI-CEB, Industrial steel/Tempered Glass, 1x USB Type-C 20 Gbps/2x USB Type-A 5 Gbps/1x Audio Combo Jack/Power button, RGB
Description

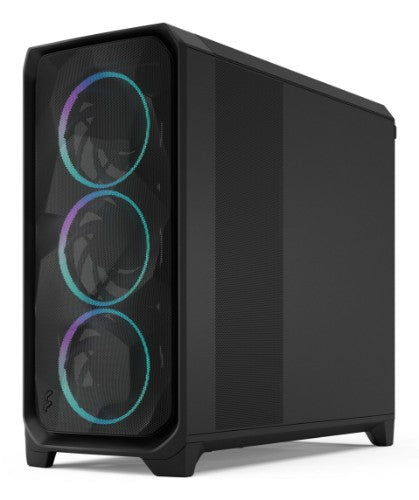

Experience advanced cooling and expressive, aerodynamic design in a spacious format. An evolution of our mesh performance series, Meshify 3 XL offers performance-boosting engineering upgrades, three powerful Momentum fans, and next-level atmospheric lighting in Ambience Pro RGB versions.
Advanced airflowAccess performance engineering in a spacious format, with ample ventilation and an air guide which helps keep components running cool.

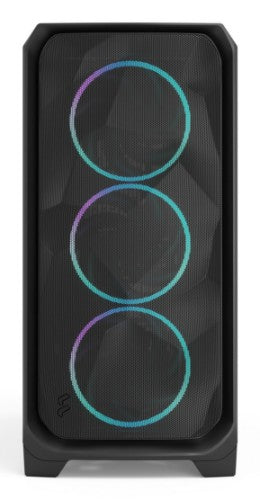

Evolved designElevate your space with an aerodynamic design aesthetic featuring a sleek, rockface-inspired mesh front panel.
Designed for gamingCreate a powerful gaming system with space for graphics cards up to 512 mm in length and E-ATX (330 mm) motherboard compatibility.
Easily accessibleEnjoy a smooth build experience with easily removable panels, including a sliding top panel featuring a fabric tab.
Powerful fans includedIncludes three high-performance Momentum 14 fans, featuring LCP blades and true FDB bearings for improved cooling and quieter operation.
Ideal for custom loopsCreate a build with advanced cooling, with space for up to a 420 mm top radiator and up to 360 mm front and side radiators.

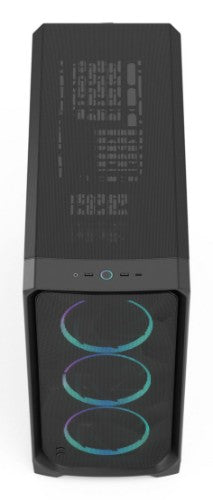

Accessible I/OConnect your devices easily with a top I/O featuring a 20 Gbps USB Type-C port, two USB-A ports and a combined audio jack.
Clean finishAchieve a neat and tidy look with a clean interior layout featuring a cable cover and new cable aligners for easy routing.
Specifications
| Technical details |
|---|
| Number of 5.25" bays |
0 |
| Number of 3.5" bays |
2 |
| Number of 2.5" bays |
4 |
| Number of internal 3.5" bays |
2 |
| Supported motherboard form factors |
ATX, EATX, ITX, micro ATX, SSI CEB, SSI EEB |
| Supported HDD sizes |
2.5,3.5" |
| Suitable for |
Gaming |
| Side window |
Yes |
| Product colour |
Black |
| Number of expansion slots |
7 |
| Maximum CPU cooler height |
7.17" (18.2 cm) |
| Maximum graphics card length |
20.2" (51.2 cm) |
| Maximum PSU length |
9.06" (23 cm) |
| Type |
PC |
| Warranty period |
2 year(s) |
| Material |
|---|
| Material |
Steel, Tempered glass |
| Indication |
|---|
| Illumination colour |
Multi |
| Illumination |
Yes |
| Ergonomics |
|---|
| Cable management |
Yes |
| On/off button |
Yes |
| Design |
|---|
| Anti-dust filter |
Yes |
| Number of external 5.25" bays |
0 |
| Material |
Steel, Tempered glass |
| Number of 5.25" bays |
0 |
| Number of 3.5" bays |
2 |
| Number of 2.5" bays |
4 |
| Number of internal 3.5" bays |
2 |
| Supported motherboard form factors |
ATX, EATX, ITX, micro ATX, SSI CEB, SSI EEB |
| Suitable for |
Gaming |
| Side window |
Yes |
| Illumination colour |
Multi |
| Illumination |
Yes |
| Cable management |
Yes |
| Product colour |
Black |
| Number of expansion slots |
7 |
| Maximum CPU cooler height |
7.17" (18.2 cm) |
| Maximum graphics card length |
20.2" (51.2 cm) |
| Maximum PSU length |
9.06" (23 cm) |
| Type |
PC |
| On/off button |
Yes |
| Tempered glass panel(s) |
Yes |
| Power supply |
|---|
| Supported power supply form factors |
ATX |
| Power supply included |
No |
| Power supply location |
Bottom |
| Ports & interfaces |
|---|
| USB 3.2 Gen 2x2 Type-C ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 2.0 ports quantity |
0 |
| Combo headphone/mic port |
Yes |
| Cooling |
|---|
| Front radiator installed |
No |
| Front radiator sizes supported |
280,360 mm |
| Rear radiator installed |
No |
| Rear radiator sizes supported |
120,140 mm |
| Top radiator installed |
No |
| Top radiator sizes supported |
360,420 mm |
| Front fans installed |
3x 140 mm |
| Number of front fans supported (max) |
3 |
| Front fans diameters supported |
120,140,180 mm |
| Number of side fans supported (max) |
3 |
| Side fans diameters supported |
140 mm |
| Number of rear fans supported (max) |
1 |
| Rear fans diameters supported |
120,140 mm |
| Number of top fans supported (max) |
3 |
| Top fans diameters supported |
120,140 mm |
| Side radiator sizes supported |
360 mm |
| Storage |
|---|
| Supported HDD sizes |
2.5,3.5" |
| SSD form factor |
2.5" |
| Packaging content |
|---|
| Manual |
Yes |
| Weight & dimensions |
|---|
| Width |
9.65" (245 mm) |
| Depth |
22.6" (575 mm) |
| Height |
20.3" (515 mm) |
| Weight |
24 lbs (10.9 kg) |
| Packaging data |
|---|
| Package width |
13.8" (350 mm) |
| Package height |
23.5" (596 mm) |
| Package depth |
27.1" (688 mm) |
| Package weight |
28.7 lbs (13 kg) |
| Manual |
Yes |
| Other features |
|---|
| Manual |
Yes |
