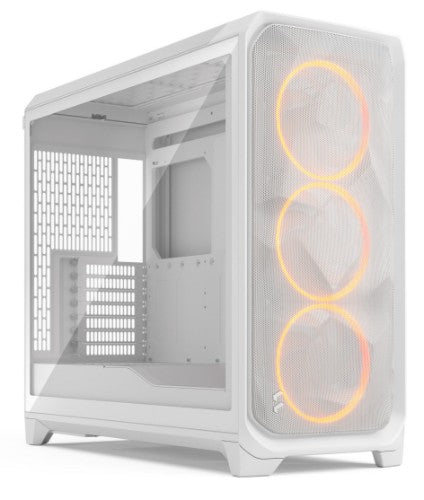

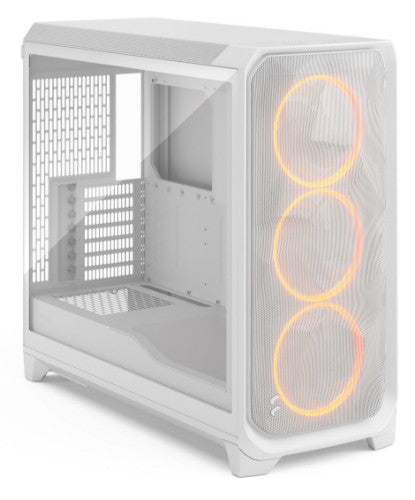

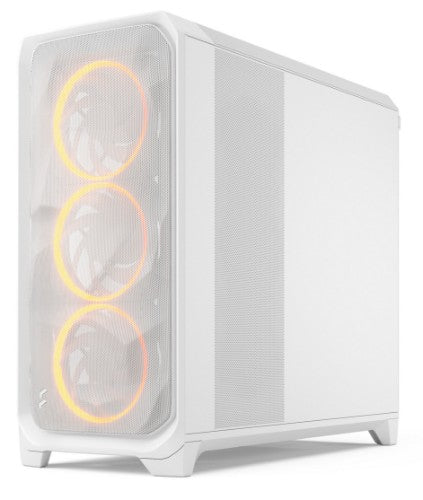

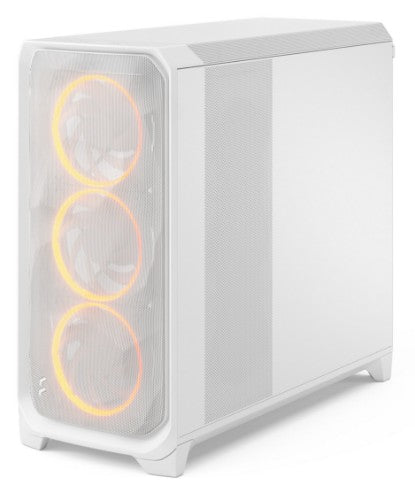

Fractal Design Meshify 3 XL White

E-ATX/ATX/mATX/ITX/EE-ATX/SSI-EEB/SSI-CEB, Industrial steel/Tempered Glass, 1x USB Type-C 20 Gbps/2x USB Type-A 5 Gbps/1x Audio Combo Jack/Power button, RGB

Description

Experience advanced cooling and expressive, aerodynamic design in a spacious format. An evolution of our mesh performance series, Meshify 3 XL offers performance-boosting engineering upgrades, three powerful Momentum fans, and next-level atmospheric lighting in Ambience Pro RGB versions.

Advanced airflow
Access performance engineering in a spacious format, with ample ventilation and an air guide which helps keep components running cool.

Evolved design

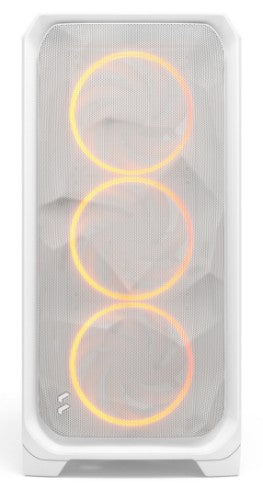

Elevate your space with an aerodynamic design aesthetic featuring a sleek, rockface-inspired mesh front panel.

Designed for gaming
Create a powerful gaming system with space for graphics cards up to 512 mm in length and E-ATX (330 mm) motherboard compatibility.

Easily accessible
Enjoy a smooth build experience with easily removable panels, including a sliding top panel featuring a fabric tab.

Powerful fans included
Includes three high-performance Momentum 14 fans, featuring LCP blades and true FDB bearings for improved cooling and quieter operation.

Ideal for custom loops
Create a build with advanced cooling, with space for up to a 420 mm top radiator and up to 360 mm front and side radiators.

Accessible I/O

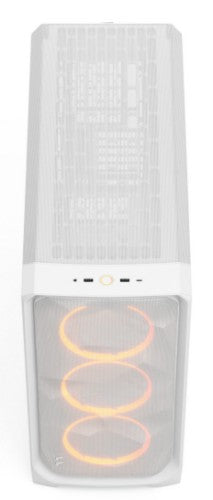

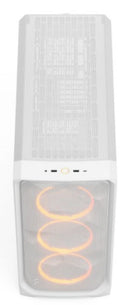

Connect your devices easily with a top I/O featuring a 20 Gbps USB Type-C port, two USB-A ports and a combined audio jack.

Clean finish

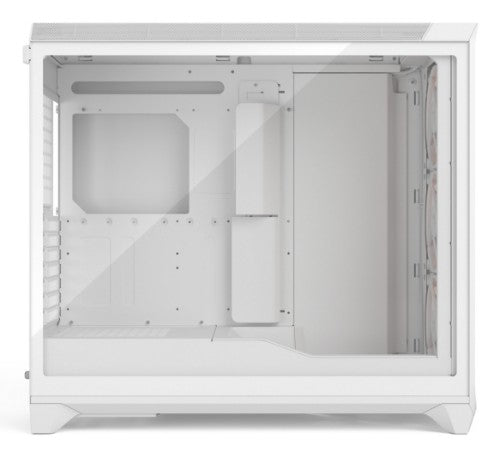

Achieve a neat and tidy look with a clean interior layout featuring a cable cover and new cable aligners for easy routing.

Specifications

Technical details
Number of 5.25" bays	0
Number of 3.5" bays	2
Number of 2.5" bays	4
Supported motherboard form factors	ATX, EATX, ITX, micro ATX, SSI CEB, SSI EEB
Supported HDD sizes	2.5,3.5"
Suitable for	Gaming
Side window	Yes
Product colour	White
Number of expansion slots	7
Maximum CPU cooler height	7.17" (18.2 cm)
Maximum graphics card length	20.2" (51.2 cm)
Maximum PSU length	9.06" (23 cm)
Type	PC
Warranty period	2 year(s)
Material
Material	Steel, Tempered glass
Indication
Illumination colour	Multi
Illumination	Yes
Ergonomics
Cable management	Yes
On/off button	Yes
Design
Anti-dust filter	Yes
Material	Steel, Tempered glass
Number of 5.25" bays	0
Number of 3.5" bays	2
Number of 2.5" bays	4
Supported motherboard form factors	ATX, EATX, ITX, micro ATX, SSI CEB, SSI EEB
Suitable for	Gaming
Side window	Yes
Illumination colour	Multi
Illumination	Yes
Cable management	Yes
Product colour	White
Number of expansion slots	7
Maximum CPU cooler height	7.17" (18.2 cm)
Maximum graphics card length	20.2" (51.2 cm)
Maximum PSU length	9.06" (23 cm)
Type	PC
On/off button	Yes
Tempered glass panel(s)	Yes
Power supply
Supported power supply form factors	ATX
Power supply included	No
Ports & interfaces
USB 3.2 Gen 2x2 Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 2.0 ports quantity	0
Combo headphone/mic port	Yes
Cooling
Front radiator sizes supported	280,360 mm
Rear radiator sizes supported	120,140 mm
Top radiator sizes supported	360,420 mm
Front fans installed	3x 140 mm
Number of front fans supported (max)	3
Front fans diameters supported	120,140,180 mm
Number of side fans supported (max)	3
Side fans diameters supported	140 mm
Number of rear fans supported (max)	1
Rear fans diameters supported	120,140 mm
Number of top fans supported (max)	3
Top fans diameters supported	120,140 mm
Side radiator sizes supported	360 mm
Storage
Supported HDD sizes	2.5,3.5"
SSD form factor	2.5"
Packaging content
Manual	Yes
Weight & dimensions
Width	9.65" (245 mm)
Depth	22.6" (575 mm)
Height	20.3" (515 mm)
Weight	24 lbs (10.9 kg)
Packaging data
Package width	13.8" (350 mm)
Package height	23.5" (596 mm)
Package depth	27.1" (688 mm)
Package weight	28.7 lbs (13 kg)
Manual	Yes
Other features
Manual	Yes
