Thermaltake AX500 Full Tower White

E-ATX/EEB, ATX PSII, 5 x 3.5”HDDs, 6 x 2.5”SSDs, 1 x USB Type-C, 2 x USB 3.0, 1 x HD-Audio, 550 x 248 x 548 mm

Key Features

• Compatible with Hidden-Connector Motherboards
• Excellent Radiator Support
• Four 140mm CT140 Fans Pre-installed
• Superior Cooling Support
• GPU Holder
• Storage Support
• Tidy Cable Management
• Superior Hardware Support
• Perfect Dust Protection

Description

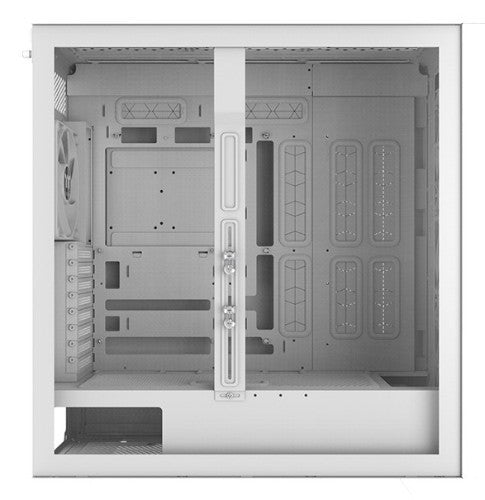

Compatible with Hidden-Connector Motherboards
The AX500 Snow Full Tower Chassis supports up to one E-ATX/EEB motherboard, and the motherboard tray has cutouts for the latest hidden-connector ATX and micro-ATX motherboards.

Excellent Radiator Support
Users can install dual 420mm/360mm radiators on the top and front of the chassis for superior cooling.

Four 140mm CT140 Fans Pre-installed
Four 140mm CT140 fans come pre-installed in the chassis, providing effective cooling support to ensure optimal system performance.

Superior Cooling Support
Up to fourteen 120mm or nine 140mm fans can be installed. With the fan cover on, it supports one E-ATX/EEB motherboard; with the cover off, it fits three 120mm fans.

GPU Holder
The AX500 series chassis features a built-in graphics card holder for added support, preventing sagging with multiple GPUs.

Storage Support
Two drive cages under the PSU cover hold up to four hard drives, while an additional drive plate behind the motherboard supports one 3.5” or two 2.5” hard drives.

Tidy Cable Management
The AX500 series chassis offers ample cable management clearance with multiple anchor points behind the motherboard, and includes Velcro straps and cable ties for organization.

Superior Hardware Support
The AX500 Snow Full Tower Chassis supports a CPU cooler up to 185mm, a GPU up to 460mm, and a power supply up to 200mm. It comes with four CT140 fans and supports up to fourteen 120mm or nine 140mm fans, along with dual 420mm/360mm radiators on the top and front for superior cooling and premium expansion options.

Perfect Dust Protection
The AX500 Snow Full Tower Chassis features dust filters on the front, top, bottom, and motherboard sides to protect the system.

Handy I/O Ports
The top I/O ports include:
- 1 x USB 3.2 Gen 2 Type-C
- 2 x USB 3.0 Type-A
- HD Audio
- Reset Button
- HDD LED
- Power Button with LED

Specifications

Design
Material thickness	0.157" (4 mm)
Material	SPCC, Steel, Tempered glass
Number of 3.5" bays	5
Number of 2.5" bays	1
Supported motherboard form factors	ATX, EATX, micro ATX, Mini-ITX, SSI CEB, SSI EEB
Product colour	White
Number of expansion slots	8
Maximum CPU cooler height	7.28" (18.5 cm)
Maximum graphics card length	18.1" (46 cm)
Maximum PSU length	7.87" (20 cm)
Type	PC
Form factor	Full Tower
Technical details
Number of 3.5" bays	5
Number of 2.5" bays	1
Supported motherboard form factors	ATX, EATX, micro ATX, Mini-ITX, SSI CEB, SSI EEB
Supported HDD sizes	2.5,3.5"
Product colour	White
Number of expansion slots	8
Maximum CPU cooler height	7.28" (18.5 cm)
Maximum graphics card length	18.1" (46 cm)
Maximum PSU length	7.87" (20 cm)
Type	PC
Form factor	Full Tower
Material
Material	SPCC, Steel, Tempered glass
Material thickness	0.157" (4 mm)
Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Audio output	Yes
Cooling
Front radiator sizes supported	120,140,240,280,360,420 mm
Rear radiator sizes supported	120,140 mm
Top radiator sizes supported	120,140,240,280,360,420 mm
Front fans installed	4 x 140 mm
Number of front fans supported (max)	4
Front fans diameters supported	120,140 mm
Number of side fans supported (max)	3
Side fans diameters supported	120,140 mm
Number of rear fans supported (max)	1
Rear fans diameters supported	120,140 mm
Number of top fans supported (max)	3
Top fans diameters supported	120,140 mm
Fan speed	0 - 1500 RPM
Storage
Supported HDD sizes	2.5,3.5"
Weight & dimensions
Width	21.7" (550 mm)
Depth	9.76" (248 mm)
Height	21.6" (548 mm)
Material thickness	0.157" (4 mm)
