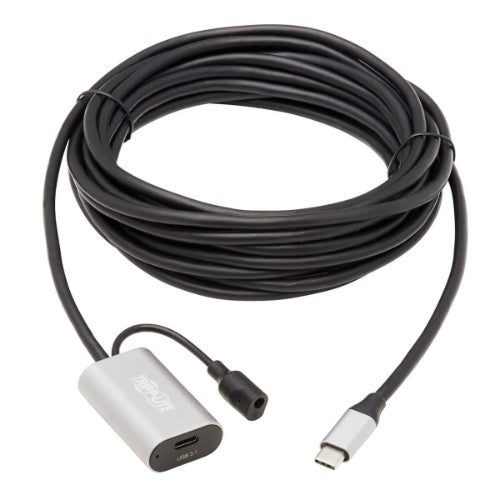

USB 3.2 Gen 1 Active Extension Cable - USB-C to USB-C (M/F), 5 Gbps, Data Only, 5 m (16.4 ft.)
Key Features
- Adds 16.4-ft. (5 m) to your existing USB-C connection to provide flexibility in placing devices
- Increase the extension to 32.8-ft. (10 m) by daisy-chaining 2 cables together
- Provides up to 770mA of power to connected device without need for external power
- Reversible USB-C plug connects in either direction for immediate no-fuss use
- Supports USB 3.1 Gen 1 data transfer rates up to 5 Gbps—10x faster than USB 2.0
Description
16-Foot Extension Cable Connects Computers, Printers, Modems and Other USB-C EquipmentThis USB-C to USB-C Active Extension Cable (M/F) attaches to your current USB 3.2 Gen1 cable to extend it by 5M (16.4-ft.). It connects your computer, tablet, notebook, MacBook Pro, Chromebook, smartphone or other compatible USB-C device to a USB-C keyboard, portable hard drive, patch panel or other peripheral. The 16-foot length allows you great flexibility in placing equipment. You can extend the USB connection even further—up to 65 feet (20 meters)—by daisy-chaining up to four U330-05M-C2C units together.
Built-In Signal Booster for Peak PerformanceJust connect the active cable’s male plug to your computer and the female connector to a USB device cable to extend your total connection beyond USB’s natural 5M (16.4-ft.) limit. The bus-powered signal booster ensures USB 3.2 Gen 1 data transfer speeds up to 5 Gbps with no signal loss. The USB-C active extension cable is backward compatible with previous USB generations, so you can use it with legacy equipment.
770mA of Proper Power Keeps Devices FunctioningThe U330-05M-C2C works with standard USB 3.2 Gen1 (5Gbps) cables and provides up to 770mA of power to a connected device. For power applications stronger than 770mA, you must connect a compatible DC 5V external power supply or cable with a barrel connector of 3.5 x 1.35 x 7.5mm; positive pin, negative sleeve (sold separately).
Reversible USB-C Connector Attaches in Either DirectionUnlike traditional USB cables that connect in only one direction, the reversible USB-C male connector plugs into a USB-C port in either direction for a fumble-free connection every time.
Specifications
| Features |
| Country of origin |
China |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| USB version |
USB 3.2 Gen 1 (3.1 Gen 1) |
| Connector 1 |
USB C |
| Connector 2 |
USB C |
| Cable length |
196.9" (5 m) |
| Connector contacts plating |
Nickel |
| Maximum data transfer rate |
5 Mbit/s |
| Product colour |
Black, Gray |
| Certification |
CE, FCC, REACH |
| Connector 1 gender |
Male |
| Connector 2 gender |
Female |
| Cable jacket material |
Polyvinyl chloride (PVC) |
| Cable diameter |
0.138" (3.5 mm) |
| Weight |
8.11 oz (230 g) |
| Quantity per pack |
1 pc(s) |
| Weight & dimensions |
| Cable diameter |
0.138" (3.5 mm) |
| Cable length |
196.9" (5 m) |
| Weight |
8.11 oz (230 g) |
| Package width |
7" (177.8 mm) |
| Package depth |
0.5" (12.7 mm) |
| Package height |
10" (254 mm) |
| Package weight |
8.11 oz (230 g) |
| Package type |
Polybag |
| Packaging data |
| Package width |
7" (177.8 mm) |
| Package depth |
0.5" (12.7 mm) |
| Package height |
10" (254 mm) |
| Package weight |
8.11 oz (230 g) |
| Package type |
Polybag |
| Quantity per pack |
1 pc(s) |
| Packaging content |
| Quantity per pack |
1 pc(s) |
| Ports & interfaces |
| USB version |
USB 3.2 Gen 1 (3.1 Gen 1) |
| Connector 1 |
USB C |
| Connector 2 |
USB C |
| Connector contacts plating |
Nickel |
| Data transmission |
| Maximum data transfer rate |
5 Mbit/s |
| Technical details |
| Product colour |
Black, Gray |
| Country of origin |
China |
| Harmonized System (HS) code |
84733080 |
| Compliance certificates |
RoHS |
| Certificates |
| Certification |
CE, FCC, REACH |
| Other features |
| Package type |
Polybag |
| Product colour |
Black, Gray |
| Master (outer) case GTIN (EAN/UPC) |
10037332243895 |
| Compliance certificates |
RoHS |
| Logistics data |
| Country of origin |
China |
| Master (outer) case gross weight |
5.86 lbs (2.66 kg) |
| Products per master (outer) case |
10 pc(s) |
| Master (outer) case width |
15" (380 mm) |
| Master (outer) case length |
5.51" (140 mm) |
| Master (outer) case height |
5.51" (140 mm) |
| Master (outer) case GTIN (EAN/UPC) |
10037332243895 |
| Harmonized System (HS) code |
84733080 |
