100G Duplex Multimode 50/125 OM5 LSZH Fiber Optic Cable (LC/LC), Lime Green, 10 m
Key Features
- Rated OM5 to offer a wideband 50/125 multimode fiber solution
- For 40/100 Gb speeds up to 300 meters (at 850 nm)
- Laser-optimized for use with cost-effective VCSEL light sources

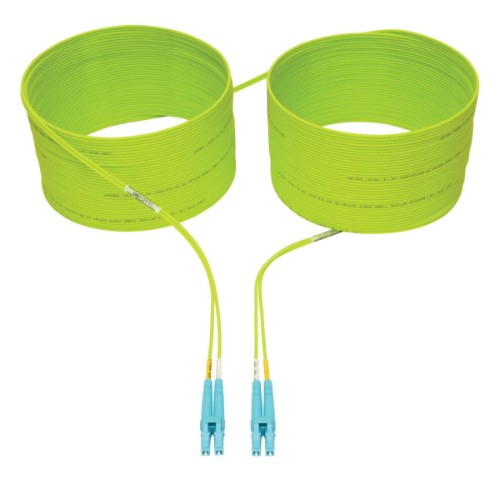

- Lime green jacket for easy OM5 identification; 10 m (33 ft.) cable
- Backward compatible with OM3 and OM4 applications
Description
Support Higher Bandwidths in Data Networks with OM5 Multimode 50/125 Fiber Patch CableAs the amount of traffic in data networks grows, so does the need for next generation devices and fiber cables to support higher bandwidths. OM5 Duplex Multimode 50/125 Fiber Patch Cable is a wideband multimode fiber (WBMMF) solution that supports at least four wavelengths in the 850-950 nm range. This LC to LC multimode fiber optic patch cable is well-suited for 40/100 Gb Ethernet applications up to 300 meters (at 850 nm).
Use with VCSEL Light Sources for a Cost-Effective, High-Bandwidth SolutionThe N820-10M-OM5 is a laser-optimized multimode fiber (LOMMF) cable designed for use with vertical-cavity surface-emitting lasers (VCSELs) to offer a cost-effective, high-bandwidth solution over extended distances in the 850-950 nm wavelength range. It is commonly used in LANs, SANs and high-speed parallel interconnects for head-ends, central offices and data centers.

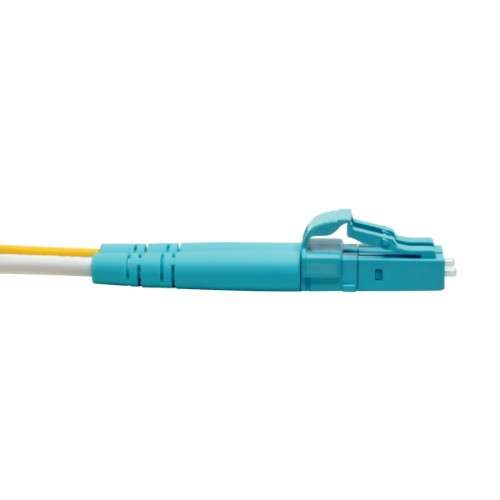

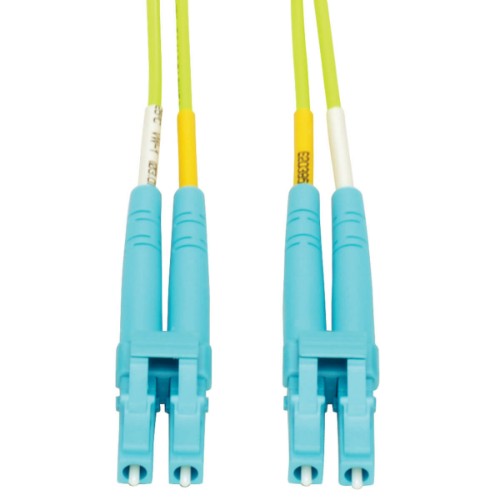

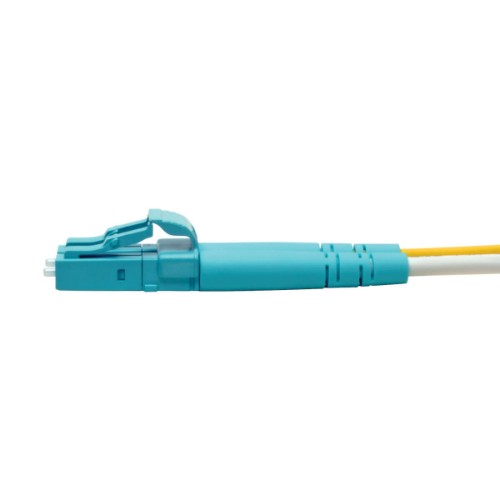

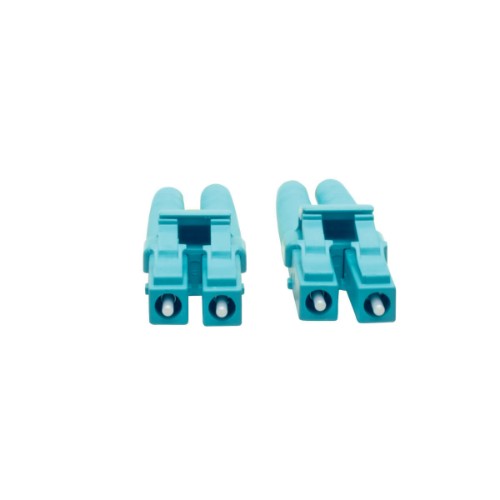

Experience Reliable Performance with Premium ConstructionPremium materials ensure this multimode fiber cable reliably carries data and voice signals. The cable has duplex male LC connectors on each end and features a low-smoke zero-halogen (LSZH) jacket that limits the amount of toxic smoke emitted in case of combustion, making it suitable for poorly ventilated areas. The lime green color of the jacket identifies the cable as OM5 rated. It meets current IEEE 802.3ae and TIA LOMMF standards.
Employ OM5 Cable for Backward Compatibility and Future ProofingRated OM5, the N820-10M-OM5 cable is backward compatible with existing OM3- and OM4-rated 50/125 fiber solutions. This LC to LC multimode fiber optic cable can also be used with shortwave wavelength division multiplexing (SWDM) technology to provide transmission over longer distances in the 850-950 nm wavelength range than OM3- and OM4-rated cables. Plus, the OM5 cables will be compatible with SWDM solutions in future networks with even higher bandwidths.
Lifetime WarrantyThe N820-10M-OM5 is backed by a lifetime limited warranty, ensuring reliability and performance.
Specifications
| Features |
|---|
| Fibre optic type |
OM5 |
| Jacket material |
Low smoke zero halogen (LSZH) |
| Fiber mode structure |
Multi-mode |
| Connector 1 |
LC |
| Connector 2 |
LC |
| Cable length |
393.7" (10 m) |
| Core diameter |
50 µm |
| Cladding diameter |
125 µm |
| Data transfer rate |
100 Gbit/s |
| Wavelengths supported |
950 nm |
| Product colour |
Green |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Country of origin |
China |
| Harmonized System (HS) code |
8544.70.0000 |
| Certificates |
|---|
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Weight |
3.17 oz (90 g) |
| Cable length |
393.7" (10 m) |
| Package width |
6.6" (167.6 mm) |
| Package depth |
3.3" (83.8 mm) |
| Package height |
0.5" (12.7 mm) |
| Package weight |
3.17 oz (90 g) |
| Packaging data |
|---|
| Package width |
6.6" (167.6 mm) |
| Package depth |
3.3" (83.8 mm) |
| Package height |
0.5" (12.7 mm) |
| Package weight |
3.17 oz (90 g) |
| Quantity per pack |
1 pc(s) |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Technical details |
|---|
| Jacket material |
Low smoke zero halogen (LSZH) |
| Fiber mode structure |
Multi-mode |
| Connector 1 |
LC |
| Connector 2 |
LC |
| Cable length |
393.7" (10 m) |
| Core diameter |
50 µm |
| Cladding diameter |
125 µm |
| Master (outer) case GTIN (EAN/UPC) |
10037332224252 |
| Compliance certificates |
RoHS |
| Data transmission |
|---|
| Data transfer rate |
100 Gbit/s |
| Logistics data |
|---|
| Quantity per pack |
1 pc(s) |
| Master (outer) case width |
6" (152.4 mm) |
| Master (outer) case length |
7.4" (188 mm) |
| Master (outer) case height |
6" (152.4 mm) |
| Master (outer) case gross weight |
30.3 oz (860 g) |
| Products per master (outer) case |
10 pc(s) |
| Country of origin |
China |
| Harmonized System (HS) code |
8544.70.0000 |
| Master (outer) case GTIN (EAN/UPC) |
10037332224252 |
