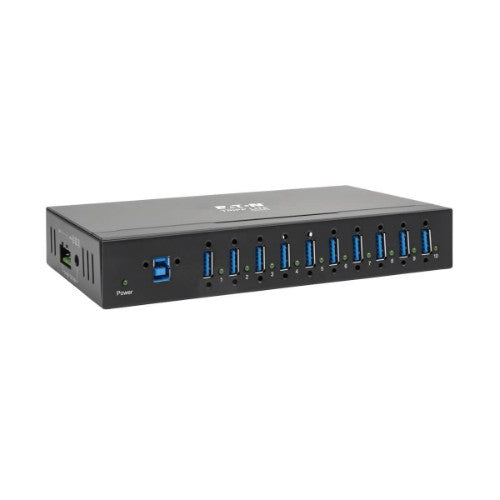

Tripp Lite U360-010-IND interface hub USB 3.2 Gen 1 (3.1 Gen 1) Type-B 5000 Mbit/s Black

10-Port Industrial-Grade USB 3.x (5Gbps) Hub - 20 kV ESD Immunity, Metal Housing, Mountable

Key Features

• Adds barcode scanner, serial device, sensor—up to 10 devices—to your host computer
• Supports USB 3.0 SuperSpeed rates up to 5 Gbps to ensure fast data transfers
• Rugged metal housing designed to withstand harsh warehouse and factory environments
• ESD protection to ±20 kV cuts potential static damage to your connected peripherals
• Plug-and-play operation with no software required for easy, immediate installation

Description

Industrial-Grade USB 3.0 Hub Adds up to 10 USB Devices to Your Computer
This 10-port USB 3.0 hub with a heavy-duty all-metal housing connects as many as 10 USB devices, such as external hard drives, industrial printers, barcode scanners, serial devices and sensors, to your host PC, server or thin client. The durable metal housing withstands harsh physical conditions in industrial and commercial applications, such as factories, construction sites, supply rooms and warehouses.

Supports SuperSpeed USB 3.0 to Ensure Fast Data Transfers
The hub supports USB 3.0 SuperSpeed data transfer rates up to 5 Gbps, which is 10 times faster than USB 2.0. It is especially recommended for high-bandwidth USB 3.0 devices, such as security cameras and high-resolution webcams. Each downstream port provides up to 900 mA for charging mobile devices. The hub is backward compatible with previous USB standards, so you can also continue using older peripherals while getting maximum performance from current devices.

Protects Your Devices against Electrostatic Discharge (ESD) and Overcurrent
Machines on the shop floor can generate electrostatic discharges, wiping out data and damaging sensitive electronics. This 10-port hub includes ESD protection to ±20 kV, reducing potential static damage to your connected peripherals. This feature works in tandem with ±2.5kV-per-port overcurrent protection to safeguard your connected devices against damage and data loss from power surges.

Plug-and-Play Hub Offers Flexible Power and Mounting Options

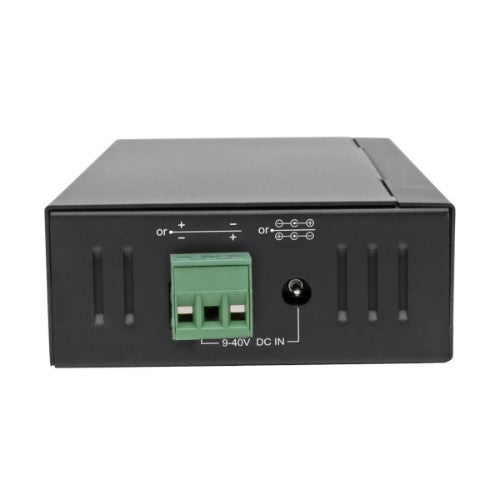

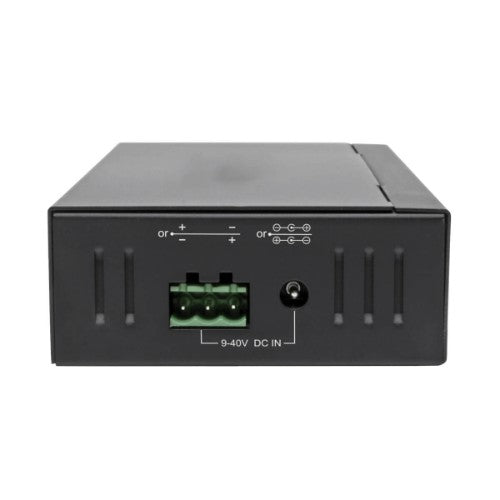

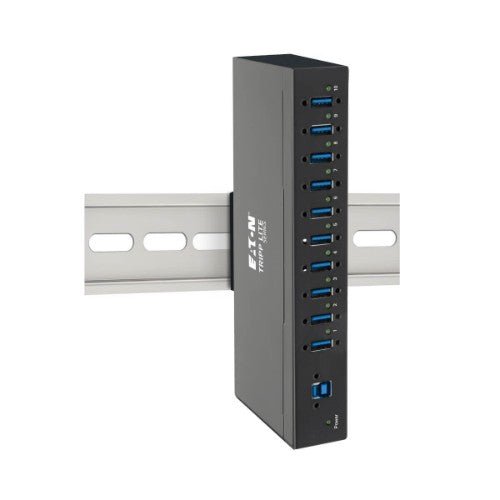

The U360-010-IND requires no software or drivers to download and install. It draws power from the connected computer through the included USB cable. You can also plug the included 3-wire terminal block into the hub to draw power from a power terminal, or connect a compatible 9–40V DC LPS power supply (not included) to a standard AC outlet. The hub mounts easily to a wall or DIN rail using the included hardware.

Specifications

Ports & interfaces
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-B
Terminal block port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	10
Hub interfaces	USB 3.2 Gen 1 (3.1 Gen 1) Type-A
Ports quantity	10
Features
Country of origin	Malaysia
Plug and Play	Yes
LED indicators	Yes
Product colour	Black
Certification	CE, FCC, RoHS, REACH
Data transfer rate	5000 Mbit/s
Overcurrent protection	Yes
Housing material	SGCC
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-B
Data transmission
Data transfer rate	5000 Mbit/s
Power
Power consumption (max)	51.3 W
Input current	0.6 A
USB charging port	Yes
Output voltage	9 - 40 V
Output current	3 A
Input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Technical details
Plug and Play	Yes
Product colour	Black
Country of origin	Malaysia
Operating temperature (T-T)	32 - 104 °F
Overcurrent protection	Yes
Performance
Certification	CE, FCC, RoHS, REACH
Plug and Play	Yes
Data transfer rate	5000 Mbit/s
Overcurrent protection	Yes
Harmonized System (HS) code	84719000
Weight & dimensions
Weight	15.2 oz (430 g)
Width	7.91" (201 mm)
Depth	3.19" (81 mm)
Height	1.3" (33 mm)
Package width	4.5" (114.3 mm)
Package depth	9" (228.6 mm)
Package height	2.6" (66 mm)
Package weight	22.6 oz (640 g)
Packaging data
Package type	Box
Package width	4.5" (114.3 mm)
Package depth	9" (228.6 mm)
Package height	2.6" (66 mm)
Package weight	22.6 oz (640 g)
Packaging content
Wall mounting kit	Yes
Manual	Yes
Terminal block included	Yes
Cables included	USB
DIN rail kit included	Yes
Package type	Box
Design
Country of origin	Malaysia
LED indicators	Yes
Product colour	Black
Certification	CE, FCC, RoHS, REACH
Operational conditions
Operating temperature (T-T)	32 - 104 °F
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	5 - 90%
Certificates
Certification	CE, FCC, RoHS, REACH
Indication
LED indicators	Yes
Logistics data
Master (outer) case width	9.7" (246.4 mm)
Master (outer) case length	13.8" (350.5 mm)
Master (outer) case height	10.1" (256.5 mm)
Master (outer) case gross weight	15.3 lbs (6.94 kg)
Products per master (outer) case	10 pc(s)
Master (outer) case GTIN (EAN/UPC)	10037332231243
Harmonized System (HS) code	84719000
