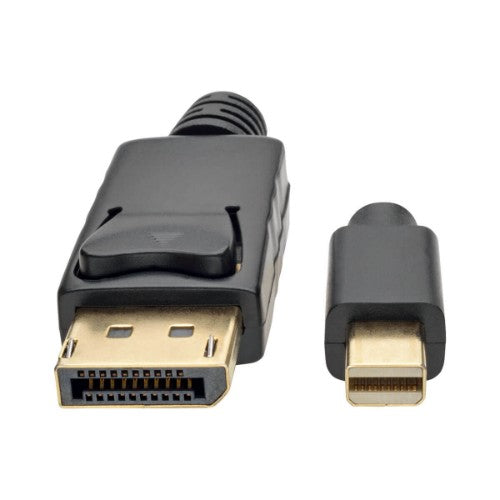

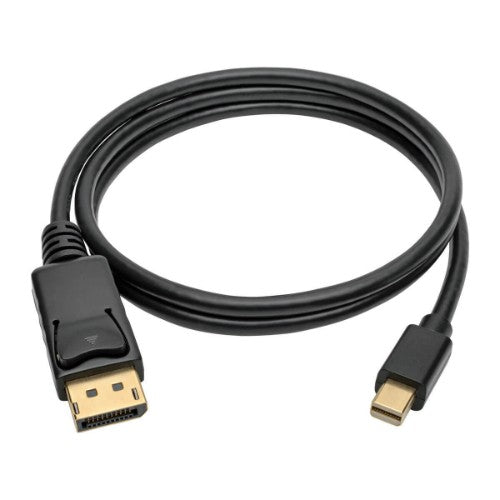

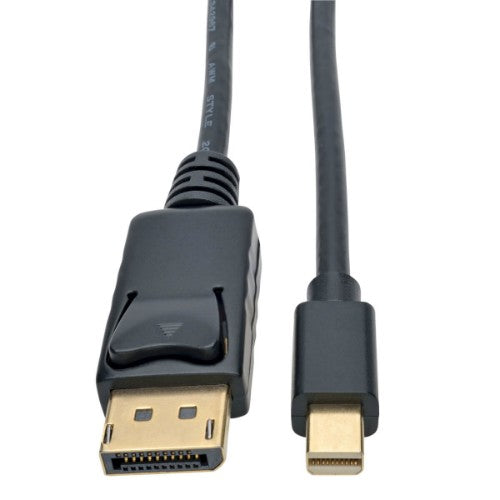

Mini DisplayPort to DisplayPort Adapter Cable, 4K 60Hz (M/M), DP Latching Connector, Black, 3 ft. (0.9 m)
Key Features
- Supports UHD video resolutions up to 4096 x 2160 (4K x 2K) @ 60 Hz
- Locking DisplayPort connector prevents accidental disconnection
- Gold-plated connectors and contacts for maximum conductivity
- Meets DisplayPort 1.2 standards
- Supports High Bit Rate 2 (HBR2) bandwidth up to 21.6 Gbps
Description
Sends Ultra High Definition Mini DisplayPort Audio/Video to DisplayPort Monitor or DisplayPort Audio/Video to Mini DisplayPort MonitorConnects mDP or Thunderbolt computer or laptop to DisplayPort monitor, TV or projector or connects the DisplayPort output on your computer or laptop to the Mini DisplayPort (mDP) or Thunderbolt input on your monitor, television or projector.
Recommended for displaying video on large monitor or digital sign
No separate power adapter required
Vibrant Video QualitySupports UHD video resolutions up to 4096 x 2160 (4K x 2K) @ 60 Hz
Meets DisplayPort 1.2 standards
Supports High Bit Rate 2 (HBR2) bandwidth up to 21.6 Gbps
Backward compatible with previous DisplayPort versions
Superior Materials for Superior PerformanceLocking DisplayPort connector prevents accidental disconnection
Gold-plated connectors and contacts for maximum conductivity and minimum data loss
Integral strain relief reduces stress and adds flexibility
Specifications
| Features |
|---|
| Product colour |
Black |
| Cable length |
35.4" (0.9 m) |
| Connector 1 |
DisplayPort |
| Connector 2 |
Mini DisplayPort |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Connector contacts plating |
Gold |
| DisplayPort version |
1.2 |
| Data transfer rate |
21.6 Gbit/s |
| Maximum resolution |
4096 x 2160 pixels |
| Plug and Play |
Yes |
| Country of origin |
Vietnam |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-10 - 80 °C |
| Operating relative humidity (H-H) |
10 - 85% |
| Storage relative humidity (H-H) |
5 - 90% |
| Certificates |
|---|
| Compliance certificates |
RoHS |
| Packaging data |
|---|
| Package width |
4" (101.6 mm) |
| Package depth |
0.5" (12.7 mm) |
| Package height |
6" (152.4 mm) |
| Package weight |
3.17 oz (90 g) |
| Quantity per pack |
1 pc(s) |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Weight & dimensions |
|---|
| Package width |
4" (101.6 mm) |
| Package depth |
0.5" (12.7 mm) |
| Package height |
6" (152.4 mm) |
| Package weight |
3.17 oz (90 g) |
| Technical details |
|---|
| Master (outer) case GTIN (EAN/UPC) |
10037332203493 |
| Harmonized System (HS) code |
84733080 |
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Master (outer) case gross weight |
13.4 oz (380 g) |
| Products per master (outer) case |
10 pc(s) |
| Master (outer) case width |
13.7" (348 mm) |
| Master (outer) case length |
1" (25.4 mm) |
| Master (outer) case height |
15.7" (398.8 mm) |
| Country of origin |
Vietnam |
| Master (outer) case GTIN (EAN/UPC) |
10037332203493 |
| Harmonized System (HS) code |
84733080 |
