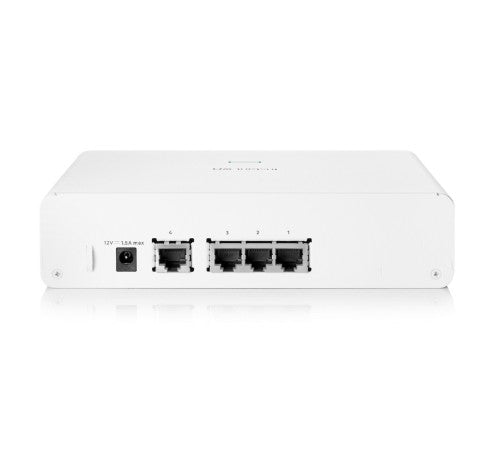

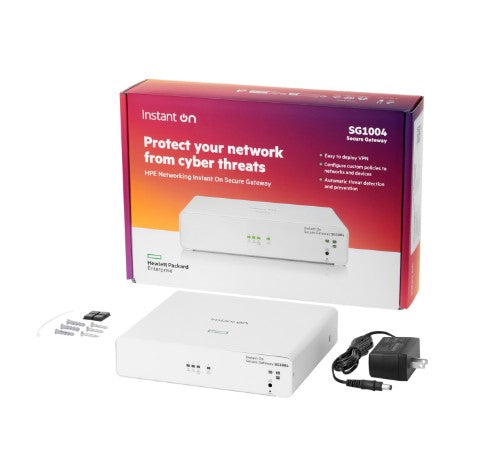

HPE Networking Instant On Secure SG1004, White, Desktop/Wall mounting, LAN, WAN, 2000 MHz, 2048 MB, 4096 MB
Description
HPE Networking Instant On Secure SG1004. Product color: White, Mounting type: Desktop/Wall mounting, LED indicators: LAN, WAN. Processor frequency: 2000 MHz, Internal memory: 2048 MB, Flash memory: 4096 MB. Ethernet LAN data rates: 10,100,1000 Mbit/s, Firewall throughput: 980 Mbit/s. WAN connection: Ethernet (RJ-45). Power consumption (max): 12 W, Power consumption (idle): 2.3 W, Input voltage: 100 - 240 V
Specifications
| Design |
|---|
| LED indicators |
LAN, WAN |
| Mounting type |
Desktop/Wall mounting |
| Product colour |
White |
| Performance |
|---|
| Built-in processor |
Yes |
| Processor frequency |
2000 MHz |
| Internal memory |
2048 MB |
| Flash memory |
4096 MB |
| Mounting type |
Desktop/Wall mounting |
| Product colour |
White |
| Network |
|---|
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Firewall throughput |
980 Mbit/s |
| Security |
|---|
| VLAN support |
Yes |
| Firewall security |
Yes |
| Number of VLANs |
22 |
| Ports & interfaces |
|---|
| WAN connection |
Ethernet (RJ-45) |
| Ethernet LAN (RJ-45) ports |
4 |
| Power |
|---|
| Input voltage |
100 - 240 V |
| Input frequency |
50/60 Hz |
| Power consumption (max) |
12 W |
| Power consumption (idle) |
2.3 W |
| Weight & dimensions |
|---|
| Weight |
2.27 lbs (1.03 kg) |
| Width |
6.46" (164.1 mm) |
| Height |
1.73" (43.9 mm) |
| Depth |
7.48" (190 mm) |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
15 - 95% |
| Technical details |
|---|
| Built-in processor |
Yes |
| Processor frequency |
2000 MHz |
| Indication |
|---|
| LED indicators |
LAN, WAN |
| Memory |
|---|
| Internal memory |
2048 MB |
| Flash memory |
4096 MB |
| Features |
|---|
| Built-in processor |
Yes |
| Processor frequency |
2000 MHz |
