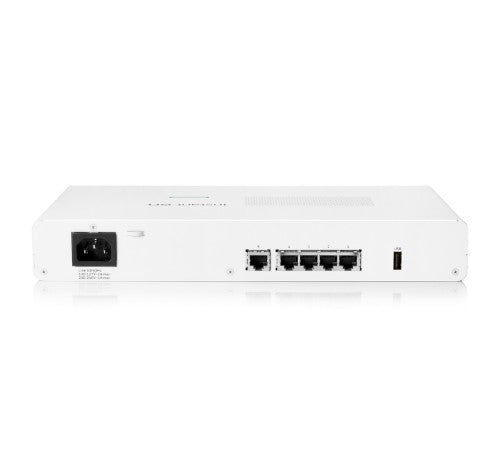

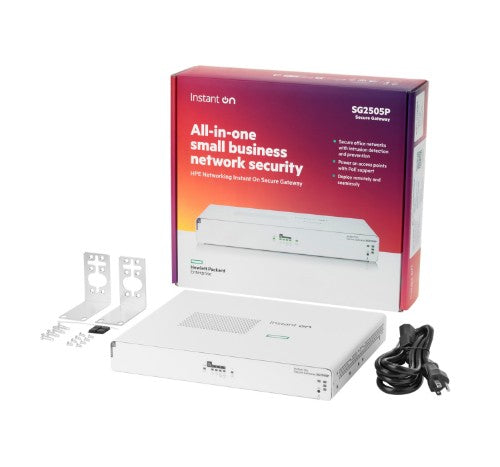

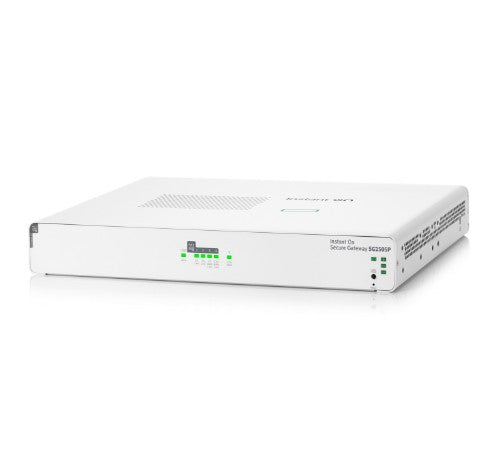

HPE Networking Instant On Secure SG2505P gateway/controller 10, 100, 1000, 2500 Mbit/s

HPE Networking Instant On Secure SG2505P, White, 1U, Rack/Desktop/Wall, LAN, WAN, 2000 MHz, 4096 MB

Description

HPE Networking Instant On Secure SG2505P. Product color: White, Rack capacity: 1U, Mounting type: Rack/Desktop/Wall. Processor frequency: 2000 MHz, Internal memory: 4096 MB, Flash memory: 4096 MB. Ethernet LAN data rates: 10,100,1000,2500 Mbit/s, Firewall throughput: 2400 Mbit/s. WAN connection: Ethernet (RJ-45). Power consumption (max): 79.5 W, Power consumption (idle): 5.6 W, Input voltage: 100 - 240 V

Specifications

Design
LED indicators	LAN, WAN
Mounting type	Rack/Desktop/Wall
Rack capacity	1U
Product colour	White
Performance
Built-in processor	Yes
Processor frequency	2000 MHz
Internal memory	4096 MB
Flash memory	4096 MB
Mounting type	Rack/Desktop/Wall
Rack capacity	1U
Product colour	White
Network
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Firewall throughput	2400 Mbit/s
Security
VLAN support	Yes
Firewall security	Yes
Number of VLANs	22
Ports & interfaces
WAN connection	Ethernet (RJ-45)
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	5
Power
Power over Ethernet (PoE)	Yes
Input voltage	100 - 240 V
Input frequency	50/60 Hz
Power consumption (max)	79.5 W
Power consumption (idle)	5.6 W
Power over Ethernet (PoE) type supported	PoE+
Weight & dimensions
Weight	5.29 lbs (2.4 kg)
Width	12.2" (309.6 mm)
Height	1.73" (43.9 mm)
Depth	9.22" (234.2 mm)
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	15 - 95%
Technical details
Built-in processor	Yes
Processor frequency	2000 MHz
Indication
LED indicators	LAN, WAN
Memory
Internal memory	4096 MB
Flash memory	4096 MB
Features
Built-in processor	Yes
Processor frequency	2000 MHz
