55", IPS, 3840 x 2160, 60 Hz, 92% of DCI, 10bit, 1200:1, 700 cd/m², 16:9, 100-240 V AC; 50/60 Hz
Key Features
- Secure remote management – control your devices remotely and securely using NEC NaviSet Administrator 2; proactively manage maintenance requirements saving time and resources
- Unhindered readability – no reflections from windows or other light sources means no disruption to the visibility of signage content or meeting room presentation
- Safe for public environments – a metal back cover and intelligent heat management ensure safe use in public spaces where fire-retardancy is mandatory
- Enhanced imaging performance – advanced settings of all relevant visual parameters allow full control of brightness, colour, gamma and uniformity via the SpectraView Engine for precise, natural images
- Mission-critical 24/7 ready operation – the meticulous selection of industrial-grade components and careful design focused on demanding usage scenarios accompany an impressive and continuous viewer experience
Description
When imaging precision cannot be compromisedWhen imaging precision and 24/7 operational reliability cannot be compromised, the 6th generation of MultiSync® P series presents best-in-class performance with an advanced feature set for mission-critical applications
Unparalleled clarity of detail and colour accuracy is achieved with 8K signal processing, wide colour gamut and the integrated SpectraView® engine controlling all visual parameters. Even in bright ambient light conditions, high brightness levels of 700 cd/m² combined with a high haze filter guarantees exceptional readability with no annoying reflections. Despite its slim, elegant profile, the quality build is robust for use in public spaces, with an all-metal chassis for fire-retardancy. Featuring slot-in technology, choose scalable computing power with Raspberry Pi Compute Module or the more powerful Intel® Smart Display Modules (Intel®SDM) for tailor-made signage solutions.
For best visualisation in control rooms and production lines, for passenger information and wayfinding signage; the Sharp P Series is trusted for safety and long-life, fit-for-purpose performance.
Specifications
| Display |
|---|
| LED backlight |
Yes |
| Display number of colours |
1.073 billion colors |
| Panel type |
IPS |
| LED backlighting type |
Direct-LED |
| Active display area (W x H) |
47.6 x 26.8" (1209.6 x 680.4 mm) |
| Display technology |
LCD |
| Display diagonal |
55" |
| Display resolution |
3840 x 2160 pixels |
| Display brightness |
700 cd/m² |
| HD type |
4K Ultra HD |
| Response time |
8 ms |
| Contrast ratio (typical) |
8000:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Pixel pitch |
0.0124 x 0.0124" (0.315 x 0.315 mm) |
| Display diagonal (metric) |
54.6" (138.8 cm) |
| Vertical scan range |
23 - 76 Hz |
| Native aspect ratio |
16:9 |
| Horizontal scan range |
15 - 135 kHz |
| Native refresh rate |
60 Hz |
| Haze rate |
25% |

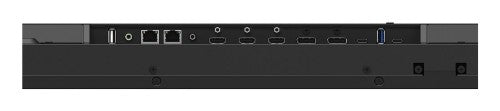

| Ports & interfaces |
|---|
| USB connector type |
USB Type-A, USB Type-C |
| DisplayPorts out |
1 |
| USB port |
Yes |
| DisplayPorts in |
1 |
| Wi-Fi |
No |
| DisplayPorts quantity |
2 |
| Ethernet LAN |
Yes |
| HDMI ports quantity |
3 |
| Ethernet LAN data rates |
100 Mbit/s |
| DVI port |
No |
| Ethernet LAN (RJ-45) ports |
1 |
| RS-232 interface |
Yes |
| HDMI input ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| USB Power Delivery (USB PD) |
Yes |
| USB Power Delivery up to |
65 W |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Audio |
|---|
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Product design |
Kiosk design |
| Placement supported |
Indoor |
| Orientation |

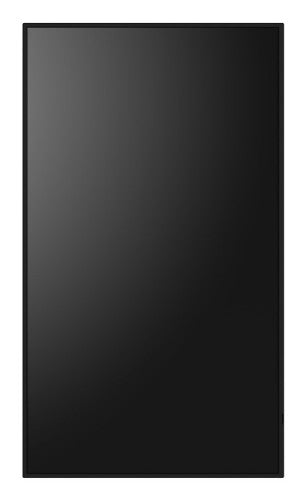

Horizontal/Vertical |
| Bezel width (top) |
0.433" (1.1 cm) |
| Bezel width (side) |
0.433" (1.1 cm) |
| Bezel width (bottom) |
0.547" (1.39 cm) |
| Product colour |
Black |
| Panel mounting interface |
300 x 300 mm |
| VESA mounting |
Yes |
| Performance |
|---|
| Purpose |
Retail |
| HDCP |
Yes |
| HDCP version |
2.2 |
| Web browser |
Yes |
| Wi-Fi |
No |
| Power |
|---|
| Power consumption (typical) |
115 W |
| Power consumption (standby) |
0.5 W |
| Computer system |
|---|
| Computer system |
Yes |
| Processor manufacturer |
Intel |
| Built-in processor |
Yes |
| Weight & dimensions |
|---|
| Display width |
48.6" (1235.6 mm) |
| Display depth |
2.34" (59.5 mm) |
| Display height |
27.9" (709.3 mm) |
| Display weight |
45.2 lbs (20.5 kg) |
| Packaging data |
|---|
| Package width |
54.7" (1390 mm) |
| Package depth |
6.3" (160 mm) |
| Package height |
33.5" (850 mm) |
| Package weight |
59.5 lbs (27 kg) |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Storage relative humidity (H-H) |
10 - 80% |
| Technical details |
|---|
| VESA mounting |
Yes |
| USB connector type |
USB Type-A, USB Type-C |
| Panel type |
IPS |
| DisplayPorts out |
1 |
| DisplayPorts in |
1 |
| LED backlighting type |
Direct-LED |
| Sustainability certificates |
ENERGY STAR |
| Safety warning |
CE; EMC Class B; Energy Star 8; FCC Class B; REACH; RoHS; UKCA; UL/C-UL or CSA |
| Other features |
|---|
| USB connector type |
USB Type-A, USB Type-C |
| Panel type |
IPS |
| DisplayPorts out |
1 |
| DisplayPorts in |
1 |
| Wi-Fi |
No |
| Display technology |
LCD |
| Bezel width (top) |
0.433" (1.1 cm) |
| Bezel width (side) |
0.433" (1.1 cm) |
| Bezel width (bottom) |
0.547" (1.39 cm) |
