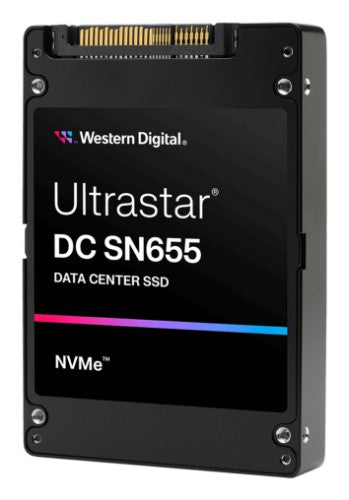

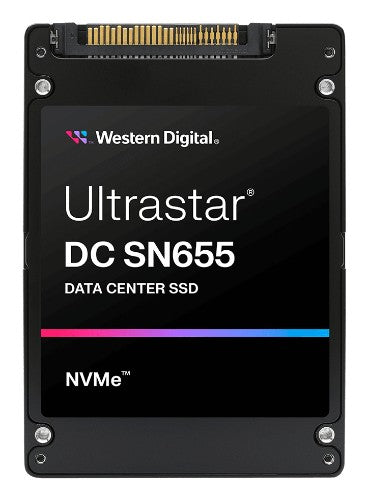

SanDisk DC SN655 3.84 TB U.3 PCI Express 4.0 NVMe TLC 3D NAND

7.68TB, U.3 15 mm, Security ISE, NVMe SSD

Key Features

• Power loss protection, end-to-end data path protection, variable sector sizes, and more
• Western Digital NVMe 1.4 Compliant Controller and PCle® 4.0
• Western Digital BiCS5 3D TLC NAND

Description

Data strategy, not just data storage
Ultrastar NVMe enterprise SSDs continue to be the ideal solution for cloud and server providers who need performant, high-capacity, cost-optimized, read-intensive performance for their data-intensive applications.

Unlocking the Full Potential of Enterprise SSDs
With dual-port redundancy and failover capability, end-to-end data protection and additional enterprise features, Ultrastar DC SN655 NVMe SSDs help ensure your data is secure and available when needed. With high-capacity, low-latency performance reaching up to 1.1M IOPs, storage providers are efficiently able to increase capacity for modern applications processing large unstructured datasets and are reducing time-to-insights of big data and enabling efficient machine learning.

Features
Ultrastar DC SN655 NVMe SSDs includes the next generation Western Digital NVMe 1.4b controller with PCIe Generation 4.0 interface and Western Digital BiCS5 TLC 3D NAND to enable higher capacities and performance at scale for increasingly larger application workloads. Designed and built for the standard 2.5” SSD storage infrastructure, the SN655 includes support for U.2 and U.3 backplanes and features power loss protection and 2.5M MTBF (projected) and 1.0 DW/D with a 5 year limited warranty.

Emerging Workloads
Ultrastar DC SN65x NVMe SSDs are optimized for cloud and scaleout workloads, providing high QoS consistency for the emerging workloads for big data, artificial intelligence, and machine learning that are increasing in size and complexity making them the ideal solution for scaling capacity and maximizing GB/watt.

Specifications

Hard drive
SSD capacity	3.84 TB
Memory type	TLC 3D NAND
Performance
Server operating systems supported	Yes
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Interface	PCI Express 4.0
Component for	Server/workstation
NVMe	Yes
NVMe version	1.4
SSD capacity	3.84 TB
Read speed	6800 MB/s
Write speed	2600 MB/s
Memory type	TLC 3D NAND
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^15 bits read
Random write (4KB)	80000 IOPS
Random read (4KB)	980000 IOPS
Mean time between failures (MTBF)	2500000 h
Hardware encryption	Yes
Data transmission
Read speed	6800 MB/s
Write speed	2600 MB/s
Random write (4KB)	80000 IOPS
Random read (4KB)	980000 IOPS
Endurance
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^15 bits read
Mean time between failures (MTBF)	2500000 h
Features
Interface	PCI Express 4.0
Component for	Server/workstation
Server operating systems supported	Yes
NVMe	Yes
NVMe version	1.4
SSD capacity	3.84 TB
Windows operating systems supported	Yes
Read speed	6800 MB/s
Write speed	2600 MB/s
Linux operating systems supported	Yes
Memory type	TLC 3D NAND
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^15 bits read
Random write (4KB)	80000 IOPS
Random read (4KB)	980000 IOPS
Mean time between failures (MTBF)	2500000 h
Hardware encryption	Yes
SSD form factor	U.3
Design
Component for	Server/workstation
SSD form factor	U.3
Weight & dimensions
Width	2.75" (69.8 mm)
Weight	5.2 oz (147.3 g)
Height	0.587" (14.9 mm)
Depth	3.95" (100.3 mm)
System requirements
Server operating systems supported	Yes
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Technical details
Interface	PCI Express 4.0
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Hardware encryption	Yes
SSD form factor	U.3
Warranty period	5 year(s)
Software
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Other features
Warranty period	5 year(s)
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^15 bits read
