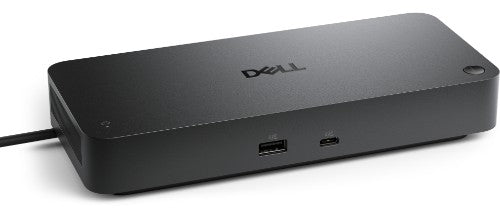

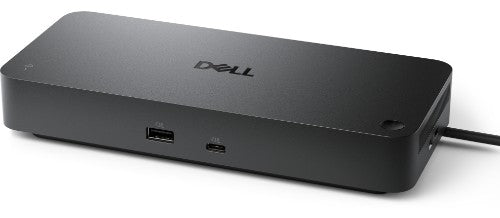

Pro Smart Dock - SD25
Reasons To Buy
A smarter workspace
Gain the versatility to create your ideal workspace and boost your AI PC productivity with support for up to 4 displays, up to 130W power delivery, and multiple ports to connect all your peripherals.
Most manageable
Elevate the IT management experience with no software or PC connection required, allowing you to remotely manage all your Dell Pro Smart Docks.
Most manageable
Remotely manage your smart docks without end-user presence from the Dell Device Management Console - the industry's first holistic peripheral management solution that configures, deploys, and updates smart docks over Wi-Fi.
Work securely
Keep users working confidently with enterprise-grade WPA-3 192-bit encryption for secure Wi-Fi communication. Safeguard your sensitive data with tamper-resistant, hardware-based encryption built into your Dell Pro Smart Dock.
Effortless maintenance
Reduce IT efforts by scheduling updates during off-hours, while ensuring fleetwide firmware compliance and eliminating end user interruptions.
Connect your way
Configure your workspace to your liking with an ambidextrous USB-C cable that can be routed left or right.
Designed for sustainability
The Dell Pro Smart Dock is built with at least 65% post-consumer recycled materials and packaged with 100% recycled or renewable packaging.
Description
Get the power and agility to work your way with the latest smart dock featuring up to 130W USB-C power delivery and remote management capabilities.
Specifications
| Ports & interfaces |
|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
2 |
| Host interface |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI ports quantity |
1 |
| HDMI version |
2.1 |
| DisplayPorts quantity |
2 |
| Microphone in |
No |
| DC-in jack |
Yes |
| Connectivity technology |
Wired |
| USB Power Delivery (USB PD) |
Yes |
| PowerShare |
Yes |
| Number of USB ports with PowerShare support |
4 |
| USB Power Delivery up to |
130 W |
| DisplayPort version |
1.4 |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Network |
|---|
| Wake-on-LAN ready |
Yes |
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
2500 Mbit/s |
| Ethernet LAN (RJ-45) ports |
1 |
| Performance |
|---|
| Maximum digital resolution |
6144 x 3456 pixels |
| Number of displays supported |
4 |
| Product colour |
Black |
| Card reader integrated |
No |
| Cable lock slot |
Yes |
| LED indicators |
Yes |
| Cable lock slot type |
Kensington |
| HD type |
6K Ultra HD |
| Maximum refresh rate |
60 Hz |
| Technical details |
|---|
| Product colour |
Black |
| Cable lock slot |
Yes |
| Total carbon footprint (kg of CO2e) |
91.8 |
| Storage |
|---|
| Card reader integrated |
No |
| Power |
|---|
| Power source type |
DC |
| Power connector |
USB Type-C |
| Power supply |
180 W |
| Software |
|---|
| Windows operating systems supported |
Windows 10, Windows 11 |
| Mac operating systems supported |
Yes |
| Linux operating systems supported |
Yes |
| Other operating systems supported |
ChromeOS |
| Indication |
|---|
| LED indicators |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 35 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
10 - 80% |
| Storage relative humidity (H-H) |
5 - 90% |
| Weight & dimensions |
|---|
| Weight |
19.8 oz (562 g) |
| Width |
3.54" (90 mm) |
| Depth |
1.39" (35.2 mm) |
| Height |
8.07" (205 mm) |
| Design |
|---|
| Windows operating systems supported |
Windows 10, Windows 11 |
| Mac operating systems supported |
Yes |
| Product colour |
Black |
| Cable lock slot |
Yes |
| LED indicators |
Yes |
| Cable lock slot type |
Kensington |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Carbon footprint |
|---|
| Total carbon footprint (kg of CO2e) |
91.8 |
| PAIA version |
GaBi version 1, 2025 |
| Carbon emissions, energy usage (kg of CO2e) |
60.4962 |
| Carbon emissions, manufacturing (kg of CO2e) |
28.2744 |
| Carbon emissions, logistics (kg of CO2e) |
2.0196 |
| Carbon emissions, end-of-life (kg of CO2e) |
1.1016 |
