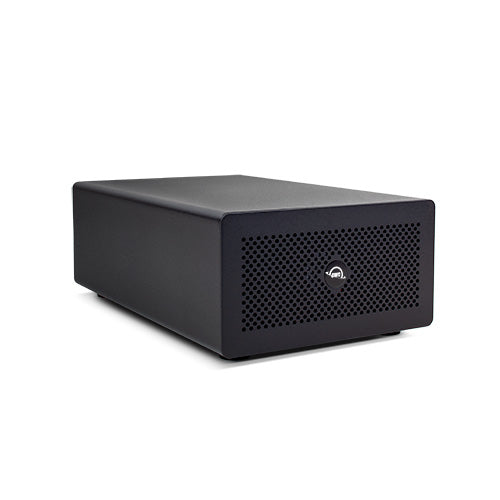

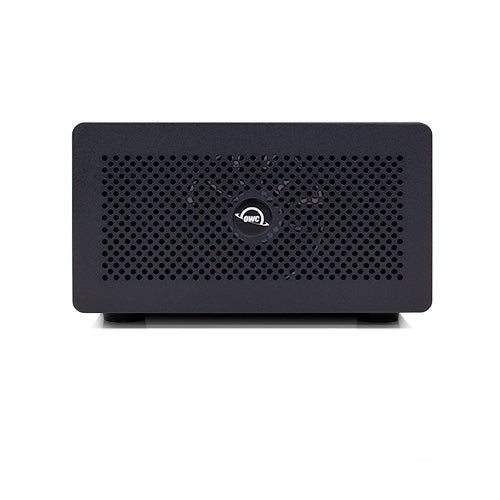

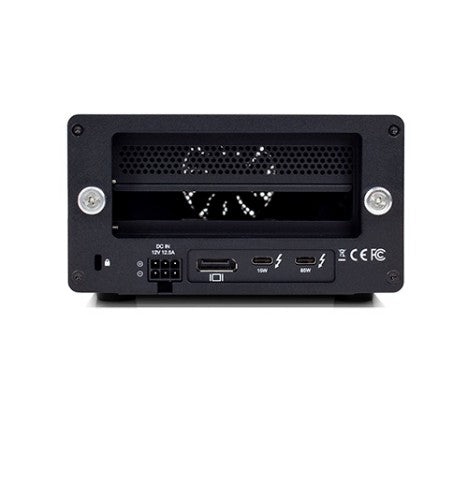

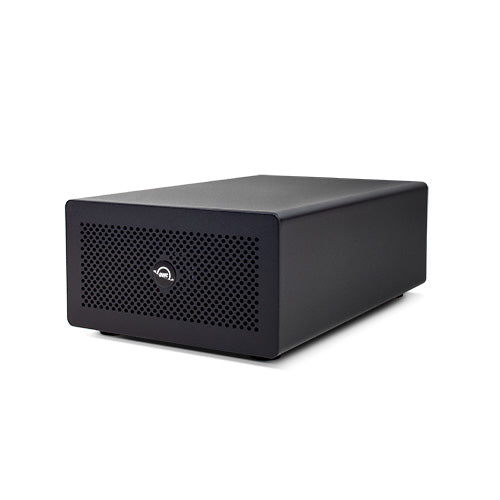

OWC Mercury Helios 3S interface cards/adapter PCIe

PCIe x16 slot, Black, Aluminum, Thunderbolt 3, DisplayPort , 1.6kg

Key Features

• Lightning-fast 40Gbps transfer speeds: (2) Thunderbolt 3 ports
• Play your card: physical slot and enclosure support cards up to half-length, full-height, double-width
• See more: DisplayPort 1.4 for connecting up to an 8K display
• Easy card installs: No tools required
• Charge while working: 85W of notebook charging

Description

A New World of Expansion Flexibility
Using a video, audio, storage, network, or even gaming PCIe card with a Mac Pro or PC desktop is a simple matter of inserting your card into an open slot. But what do you do if you have a laptop or even a space-confined desktop like an iMac or Mac mini that doesn't contain a PCIe slot?
The OWC Mercury Helios 3S is an easy to use yet powerful expansion solution that adds an external PCIe slot to your Thunderbolt 3 equipped computer. Now you can maximize your existing PCIe card investment — or expand it! — while enjoying the flexibility of adding professional-class video production, transcoding, audio processing, data storage, and high-speed network connectivity to your machine.

Retask Without Limits
Instead of buying one or more function-dedicated Thunderbolt interface devices, you can use Mercury Helios 3S like a dock for multiple PCIe cards. Capture incredibly high-quality audio with a PCIe audio card and then retask Helios 3S with a PCIe SSD card to edit and archive tracks. You can swap cards in minutes, adding a new level of flexibility to your workflow.

Capture, Stream, and Share in Seconds
With dual 40Gbps Thunderbolt 3 (Thunderbolt 2/Thunderbolt backward compatible), the Mercury Helios 3S offers the bandwidth needed to support data-intensive 4K capture cards to speed up diverse video workflows such as vlogging. Boost your DAW with external DSP acceleration and run larger mixes with multiple plug-ins. Livestream the action in your gaming sessions or share files over a 10GbE or Fibre Channel network without any speed throttling.

Pro-Level Performance Cards for Every Need
Mercury Helios 3S supports a wide variety of half-length, full-height, single or double-width pro-level PCIe cards from leading brands like AJA, Apogee, ATTO, Avid Pro Tools, Blackmagic Design, CalDigit, HighPoint, Intel, Solid State Logic, Universal Audio, and OWC:
Video capture
Digital audio
Solid State Drive (SSD)
40GbE/10GbE network adapters
SAS controllers
Firewire, USB, or eSATA host adapters

Add New Capabilities to Your Workflow
Thunderbolt 3 offers more than just speed. Mercury Helios 3S leverages the full power of Thunderbolt 3 to deliver added potential to your Mac or PC. Daisy-chain up to five additional Thunderbolt peripherals for incredible capabilities to work or play. Charge your notebook with 85W while you work. Even add up to an 8K display via the DisplayPort interface to expand your viewing space.

Plug and Play
No special software or drivers needed...just plug the Mercury Helios 3S into an open Thunderbolt 3 port on your computer with the included cable to immediately expand your system capabilities.
No tools required either...just remove two thumb screws and insert a card to start enjoying productivity gains wherever your work takes you.

Specifications

Ports & interfaces
Internal	No
Output interface	PCIe
Host interface	Thunderbolt 3
Expansion card form factor	Full-height / Half-length
Expansion card standard	PCI 3.0
Thunderbolt 3 ports quantity	2
Technical details
Plug and Play	Yes
Purpose	PC
Compliance certificates	RoHS
Performance
Plug and Play	Yes
Purpose	PC
Product colour	Black
Colour
Product colour	Black
Design
Purpose	PC
Internal	No
Product colour	Black
Cooling type	Active
Number of fans	1 fan(s)
Features
Plug and Play	Yes
Power
Power consumption (typical)	150 W
Output voltage	12 V
Output current	12.5 A
Power supply input voltage	100 - 240 V
Power supply input frequency	50-60 Hz
System requirements
Windows operating systems supported	Windows 10
Mac operating systems supported	Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina
Weight & dimensions
Width	5.63" (143 mm)
Depth	9.17" (233 mm)
Height	3.23" (82 mm)
Weight	3.53 lbs (1.6 kg)
