Peerless STS650 signage display mount 85" Black

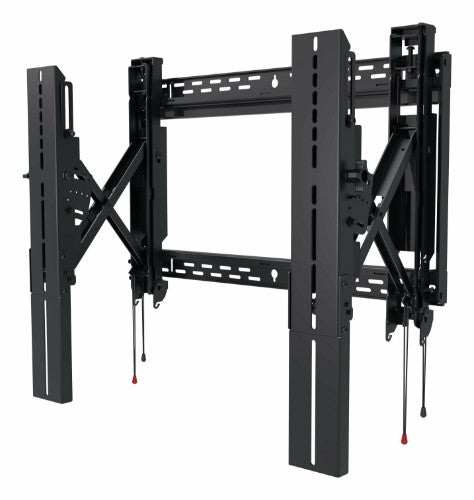

SmartMount® Universal Scissor Wall Mount for 39" to 85"+ Displays

Key Features

• Display is easily installed by a single person with the Hook-and-Hang™ feature

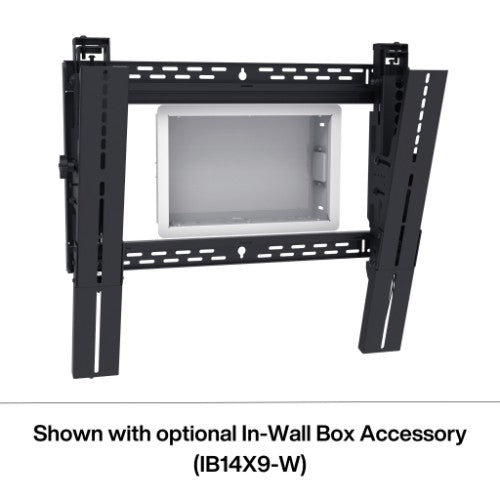

• Open access provides the maximum open area on the wall to allow flexible placement for outlets and/or in-wall boxes (IB14X9-W)
• Post-installation leveling and side-to-side adjustability features allow fine tuning of the mounted display for the perfect display positioning
• IncreLok™ tilt technology allows the user to lock the tilt angle for the perfect view and prevent tampering or undesired adjustment
• Automatic spring locks with quick release cords simplify the installation and removal of the display
• Display can be pulled 12" (305mm) from the wall to access components and the back of the display with the extendable adaptors
• 3.82"-12.00" (97-305mm) display extension allows for post-installation servicing and component storage behind display
• Universal mount fits displays with mounting patterns 200 x 100 to 600 x 400mm (600 x 600mm with included bolt-on extenders)

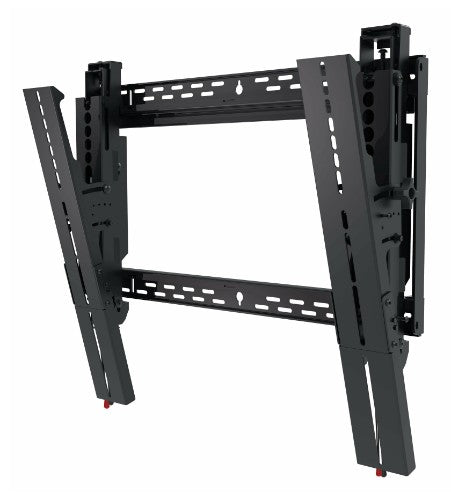

• Adjustable up to 15° of forward tilt and -2° of backward tilt for the optimal viewing angle
• Menu board style wall plate with open frame design (compatible with IB14X9-W In-Wall Box)
• Center keyhole for easy leveling and installation

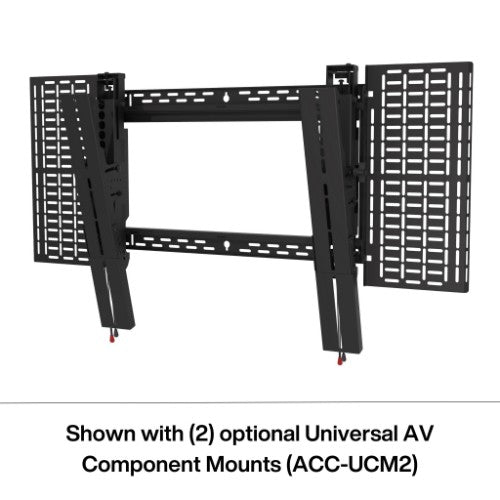

• Optional Accessory: Universal AV Component Mount (ACC-UCM2) allows components to be installed, configured and cabled off-site, and quickly attaches to the mount which reduces on-site installation time

Description

Peerless-AV’s SmartMount® Universal Scissor Wall Mount is the optimal mounting solution for UC/VC applications and recessed walls as the STS650 allows for convenient access to components stored behind the display. The STS650’s extendable adaptors allow the display to be pulled 12" (305 mm) from the wall to easily access the back of the display, and can be locked into place when the installation or maintenance is completed. Installation of the display is a breeze with the Hook-and-Hang™ feature, and the mount’s open access design provides the maximum open area on the wall to allow flexible placement for outlets and/or in-wall boxes. Post-installation leveling and side-to-side adjustability features allow for fine tuning of the mounted display for the perfect position in any corporate conference room, digital signage application or hospitality setting.

This display size range is simply a guideline for product selection. Displays larger than the screen size range may still be compatible as long as they fall within the VESA® pattern and max weight of the Peerless-AV® product.

Specifications

Mounting
Minimum screen size	39"
Maximum weight capacity	200 lbs (90.7 kg)
Panel mounting interface	200 x 100,600 x 400 mm
Number of displays supported	1
Mounting type	Wall
Minimum VESA mount	7.87 x 3.94" (200 x 100 mm)
Maximum VESA mount	23.6 x 15.7" (600 x 400 mm)
Maximum screen size	85"
Ergonomics
Tilt angle range	-2 - 15°
Tilt adjustment	Yes
Design
Product colour	Black
Weight & dimensions
Width	28.8" (732 mm)
Depth	3.82" (97 mm)
Height	26.9" (683 mm)
Weight	35.5 lbs (16.1 kg)
Package width	18.3" (464 mm)
Package depth	32.6" (829 mm)
Package height	4.49" (114 mm)
Package weight	39.9 lbs (18.1 kg)
Packaging data
Package width	18.3" (464 mm)
Package depth	32.6" (829 mm)
Package height	4.49" (114 mm)
Package weight	39.9 lbs (18.1 kg)
Packaging content
Mounting kit	Yes
Manual	Yes
Technical details
Number of displays supported	1
Mounting type	Wall
Compliance certificates	RoHS, Trade Agreements Act (TAA), cULus
Other features
Depth adjustment range	3.82 - 12" (97 - 305 mm)
