24" Touch Screen Monitor, IPS Edge-Lit LED LCD, 1920 x 1080, full HD, HDMI 19-pin, DisplayPort 20-pin, 3.5mm headphone out, USB (A to B), USB 3.0 A type x 2, AC power-in
Key Features
- 24" Full HD (1920x1080) resolution
- 10-point touch with Planar ERO-LCD protective glass
- Built-in USB hub, HD webcam and microphone
- Unique, easy-to-use Helium Desk Stand
Description

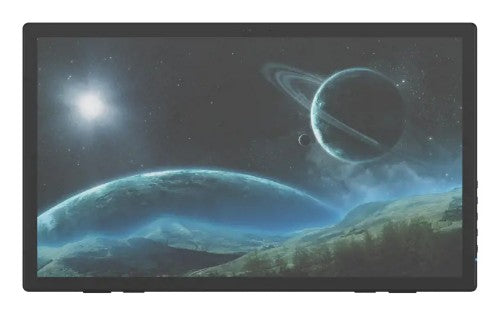

The Planar® Helium™ PCT2495 is a 24" Full HD resolution (1920x1080) 10-point touch screen LCD monitor with Planar® ERO-LCD™ protective glass, integrated webcam, speakers, USB hub and adjustable desk stand.
Specifications
| Display |
|---|
| HDCP |
Yes |
| Display brightness (typical) |
400 cd/m² |
| Screen shape |
Flat |
| Display number of colours |
16.7 million colors |
| Native aspect ratio |
16:9 |
| Maximum refresh rate |
75 Hz |
| HD type |
Full HD |
| Display technology |
LCD |
| Contrast ratio (typical) |
1000:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Pixel pitch |
0.0108 x 0.0108" (0.275 x 0.275 mm) |
| Supported video modes |
720p |
| Backlight type |
Edge LED |
| Display resolution |
1920 x 1080 pixels |
| Response time |
14 ms |
| Display diagonal |
24" |
| Touchscreen |
Yes |
| Panel type |
IPS |
| Touch technology |
Multi-touch |
| Touchscreen technology |
Capacitive |
| LED backlight |
Yes |
| Audio |
|---|
| Built-in speaker(s) |
Yes |
| Performance |
|---|
| Built-in speaker(s) |
Yes |
| Built-in camera |
No |
| AMD FreeSync |
No |
| NVIDIA G-SYNC |
No |
| Multimedia |
|---|
| Built-in speaker(s) |
Yes |
| Built-in camera |
No |
| Design |
|---|
| Product colour |
Black |
| Camera |
|---|
| Built-in camera |
No |
| Ports & interfaces |
|---|
| Built-in USB hub |
Yes |
| Headphone out |
Yes |
| DisplayPorts quantity |
1 |
| HDCP |
Yes |
| HDMI |
Yes |
| Technical details |
|---|
| Height (without stand) |
13.3" (337.3 mm) |
| Depth (without stand) |
1.72" (43.6 mm) |
| Width (without stand) |
21.9" (556.1 mm) |
| Cable lock slot |
Yes |
| HDMI |
Yes |
| Product colour |
Black |
| Warranty period |
3 year(s) |
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS, UL, cUL |
| Power supply type |
Internal |
| Touchscreen |
Yes |
| Ergonomics |
|---|
| VESA mounting |
Yes |
| Cable lock slot |
Yes |
| Tilt angle range |
15 - 65° |
| Height adjustment |
No |
| Cable lock slot type |
Kensington |
| Tilt adjustment |
Yes |
| Power |
|---|
| Power supply type |
Internal |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Power consumption (standby) |
1 W |
| Energy efficiency scale |
A to G |
| Energy efficiency class (SDR) |
D |
| Energy consumption (SDR) per 1000 hours |
15 kWh |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
|---|
| Height (without stand) |
13.3" (337.3 mm) |
| Depth (without stand) |
1.72" (43.6 mm) |
| Width (without stand) |
21.9" (556.1 mm) |
| Weight (without stand) |
9.7 lbs (4.4 kg) |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Cables included |
AC, DisplayPort, HDMI, USB |
| Packaging data |
|---|
| Quick start guide |
Yes |
| Cables included |
AC, DisplayPort, HDMI, USB |
| Other features |
|---|
| Warranty period |
3 year(s) |
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS, UL, cUL |
| Height (without stand) |
13.3" (337.3 mm) |
| Depth (without stand) |
1.72" (43.6 mm) |
| Width (without stand) |
21.9" (556.1 mm) |
| Quick start guide |
Yes |
| HDMI |
Yes |
| Energy efficiency scale |
A to G |
| Power supply type |
Internal |
| Touchscreen |
Yes |
