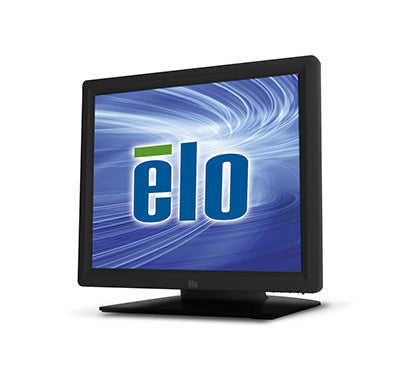

Elo Touch Solutions 1717L 17" LCD 200 cd/m² Black Touchscreen

1717L - 17.0" 1280 x 1024 TFT, 800:1, AccuTouch, Serial/USB, Bezel, Antiglare

Description

The 1717L touchmonitor is built to withstand the rigors of continuous public use with a rugged "built for touch" design. Its stylish, thin and modern look is coupled with a retail-focused feature set and is an attractive solution for commercial touchmonitor needs. It is well suited for high use public venues where point-of-sale, point-of-information, point-of-service, shelf-level and countertop interactive digital signage and loyalty systems systems are found.

The 1717L is offered with AccuTouch five-wire resistive technology, IntelliTouch surface acoustic wave, or iTouch pure glass surface acoustic wave technology. AccuTouch is widely used in retail and hospitality environments based on its proven ability to survive splashing liquids, food and grease. IntelliTouch and iTouch pure glass surface acoustic wave technology delivers the ultimate in optical quality for dry retail and hospitality applications.

The optional 3-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation, is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments.

The 1717L touchmonitor is environmentally friendly, lightweight and uses less power with state-of-the-art LED backlights in the display panel.

Specifications

Display
Display number of colours	16.78 million colors
Touchscreen	Yes
Display technology	LCD
Display diagonal	17"
Display resolution	1280 x 1024 pixels
Display brightness	200 cd/m²
Response time	5 ms
Contrast ratio (typical)	800:1
Native aspect ratio	5:4
Ports & interfaces
DisplayPorts quantity	0
HDMI ports quantity	0
Design
Product colour	Black
Panel mounting interface	75 x 75 mm
Screen shape	Flat
Wall mountable	Yes
Performance
Mean time between failures (MTBF)	50000 h
Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Weight & dimensions
Weight (with stand)	11.9 lbs (5.4 kg)
Packaging data
Package width	20.1" (511 mm)
Package depth	9.17" (233 mm)
Package height	20.1" (510 mm)
Package weight	18.3 lbs (8.3 kg)
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80%
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	10 - 90%
Logistics data
Harmonized System (HS) code	85285210
Features
Harmonized System (HS) code	85285210
Wall mountable	Yes
Technical details
Power supply type	AC
Depth (without stand)	14.2" (361 mm)
Height (without stand)	8.46" (215 mm)
Weight (with stand)	11.9 lbs (5.4 kg)
Other features
Power supply type	AC
Depth (without stand)	14.2" (361 mm)
Height (without stand)	8.46" (215 mm)
Mean time between failures (MTBF)	50000 h
Display technology	LCD
Aspect ratio	5:4
Weight (with stand)	11.9 lbs (5.4 kg)
