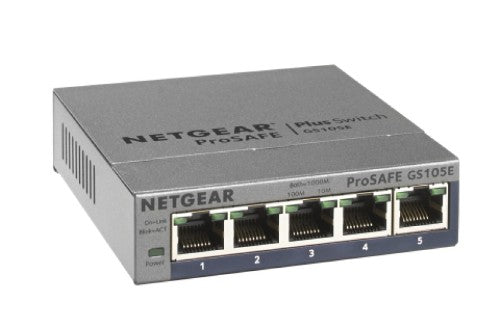

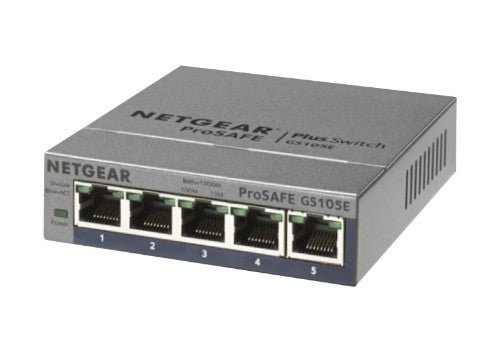

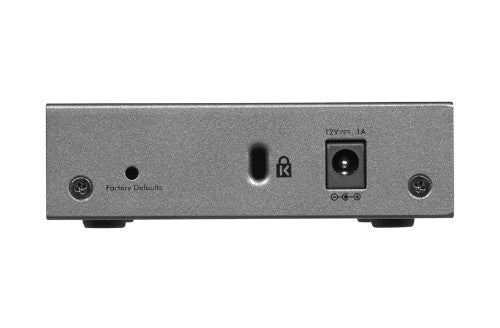

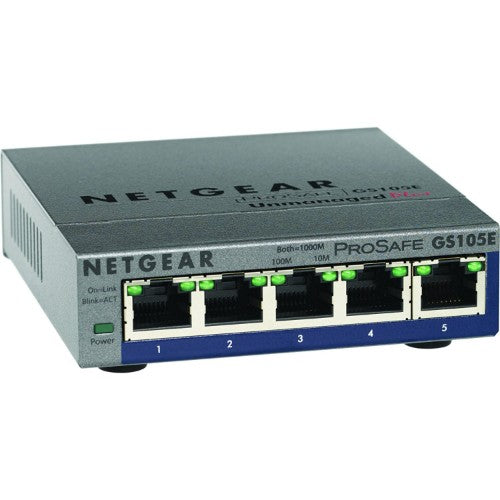

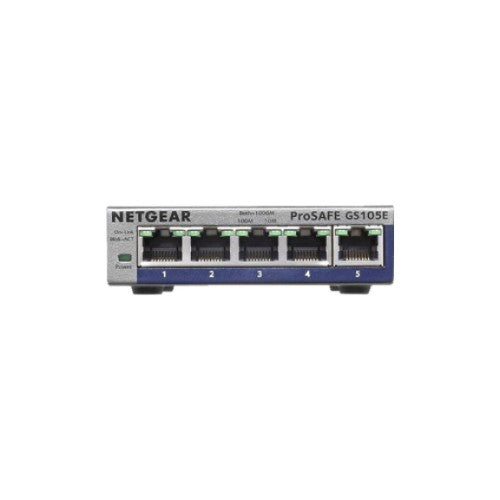

GS105E-200NAS, 5 x RJ-45, 270 g, 10/100/1000 Mbps
Description
Gigabit Plus Switch Series (GS105Ev2)
5-Port Gigabit Plus SwitchNETGEAR Plus Switches are an exceptional value for businesses looking to add intelligence to their network beyond what unmanaged switches can provide.
More Capabilities beyond Plug-and-play ConnectivityToday’s growing businesses demand and rely more on their network to carry out mission-critical business activities. Companies are putting more network traffic and applications on their Ethernet infrastructure. For example, the increasing deployments of VoIP phones and IP cameras require more than simple plug-and-play connectivity. It needs the network intelligence to separate the voice and video traffic from data, and prioritize them accordingly. Additionally, Internet-based applications such as Hotmail and Google Calendaring have made keeping the network up a business-critical need. However, companies do not necessarily have more money or advanced
training to deal with complex managed switches. The NETGEAR ProSAFE Plus Switches meet this growing need by providing fundamental network features that will help optimize the performance of business networks. ProSAFE Plus Switches also offer traffic monitoring for users to observe traffic behavior. If there are connectivity issues, these switches can identify and even locate
connection problems via cable diagnostic test. To optimize traffic through the switches, ProSAFE Plus Switches offer both port and tag-based prioritization to keep latency-sensitive traffic moving ahead of less critical packets. Also, ProSAFE Plus Switches offer port and 802.1Q-based VLAN as a means of improving security and network performance. ProSAFE Plus Switches are an upgrade from the plug-and-play Unmanaged Switch, delivering great value for empowering your network, delivering great value to the end user.
Specifications
| Management features |
|---|
| Switch type |
Managed |
| Quality of Service (QoS) support |
Yes |
| Multicast support |
Yes |
| Switch layer |
L2/L3 |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
5 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-T, 1000BASE-T |
| Network |
|---|
| Copper ethernet cabling technology |
10BASE-T, 100BASE-T, 1000BASE-T |
| Networking standards |
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Full duplex |
Yes |
| VLAN support |
Yes |
| Port mirroring |
Yes |
| Number of VLANs |
64 |
| Link aggregation |
Yes |
| Flow control support |
Yes |
| Broadcast storm control |
Yes |
| Auto MDI/MDI-X |
Yes |
| 10G support |
No |
| Auto-negotiation |
Yes |
| Virtual LAN features |
Port-based VLAN |
| IGMP snooping |
Yes |
| Data transmission |
|---|
| Jumbo frames |
9000 |
| Latency (1 Gbps) |
2.45 µs |
| Packet buffer memory |
0.4 MB |
| MAC address table |
8000 entries |
| Switching capacity |
10 Gbit/s |
| Store-and-forward |
Yes |
| Jumbo frames support |
Yes |
| Forwarding rate |
7.4 Mpps |
| Number of multicast groups filtered |
128 |
| Number of VLANs |
64 |
| Security |
|---|
| IGMP snooping |
Yes |
| DHCP features |
DHCP client |
| Multicast features |
|---|
| Number of multicast groups filtered |
128 |
| Multicast support |
Yes |
| Design |
|---|
| Product colour |
Gray |
| LED indicators |
Yes |
| Housing material |
Metal |
| Rack mounting |
No |
| Certification |
CE,CSA (CSA 22.2 #950), UL (UL 1950)/cUL IEC 950/EN 60950, FCC Part 15, VCCI, EN55022 (CISPR 22), C-Tick, EN50082-1, EN55024, CCC |
| Performance |
|---|
| Mean time between failures (MTBF) |
2531294 h |
| Packet buffer memory |
0.4 MB |
| Auto-negotiation |
Yes |
| Power |
|---|
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Power consumption (typical) |
5.6 W |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-20 - 70 °C |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating temperature (T-T) |
0 - 50 °C |
| Operating relative humidity (H-H) |
0 - 90% |
| Operating altitude |
0 - 118110.2" (0 - 3000 m) |
| Virtual LAN features |
|---|
| VLAN support |
Yes |
| Number of VLANs |
64 |
| Virtual LAN features |
Port-based VLAN |
| Weight & dimensions |
|---|
| Width |
3.7" (94 mm) |
| Depth |
3.98" (101 mm) |
| Height |
1.02" (26 mm) |
| Weight |
9.52 oz (270 g) |
| Packaging content |
|---|
| Quick start guide |
Yes |
| User guide |
Yes |
| Manual |
Yes |
| Cables included |
AC |
| Packaging data |
|---|
| Package width |
6.1" (155 mm) |
| Package depth |
9.41" (239 mm) |
| Package height |
2.48" (63 mm) |
| Package weight |
20.1 oz (570 g) |
| Quick start guide |
Yes |
| User guide |
Yes |
| Manual |
Yes |
| Cables included |
AC |
| Technical details |
|---|
| Product colour |
Gray |
| Mean time between failures (MTBF) |
2531294 h |
| Housing material |
Metal |
| Rack mounting |
No |
| Shipping (inner) case width |
19.6" (49.7 cm) |
| Shipping (inner) case net weight |
21.9 lbs (9.92 kg) |
| Shipping (inner) case length |
13.5" (34.4 cm) |
| Shipping (inner) case height |
11" (28 cm) |
| Products per shipping (inner) case |
15 pc(s) |
| Layers per pallet (sea) |
7 pc(s) |
| Layers per pallet (air) |
4 pc(s) |
| Master (outer) cases per pallet layer |
6 pc(s) |
| Memory |
|---|
| Packet buffer memory |
0.4 MB |
| Certificates |
|---|
| Certification |
CE,CSA (CSA 22.2 #950), UL (UL 1950)/cUL IEC 950/EN 60950, FCC Part 15, VCCI, EN55022 (CISPR 22), C-Tick, EN50082-1, EN55024, CCC |
| Indication |
|---|
| LED indicators |
Yes |
