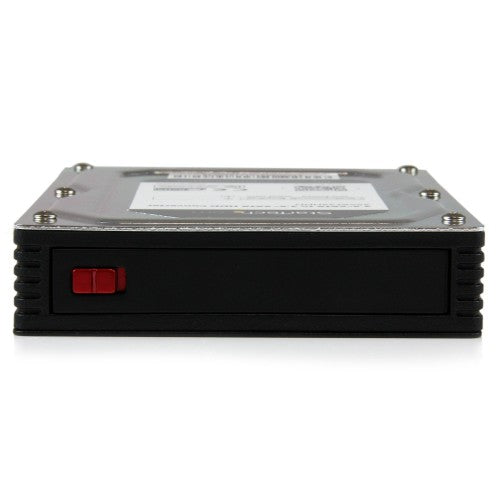

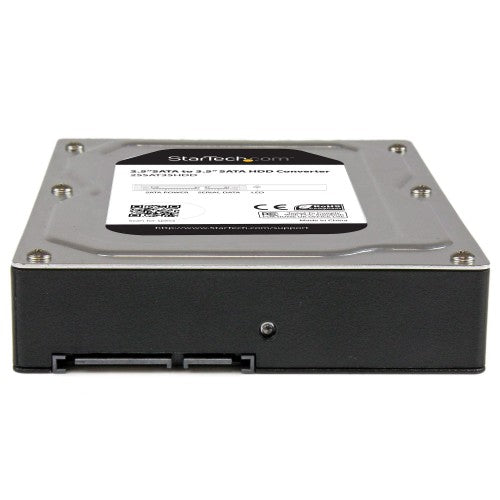

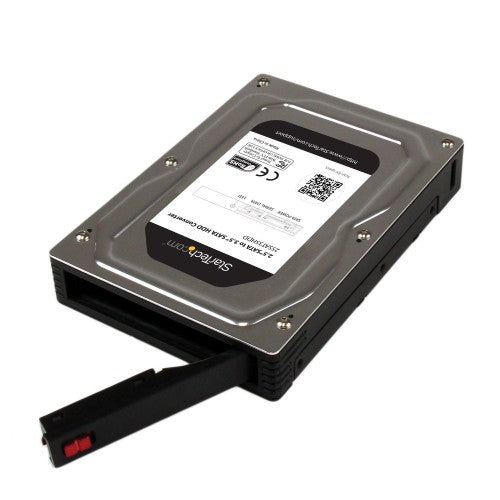

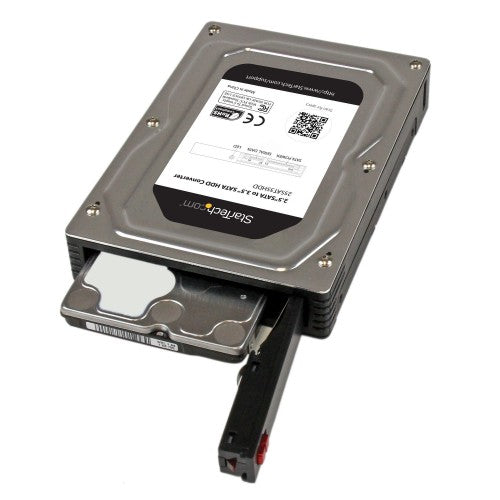

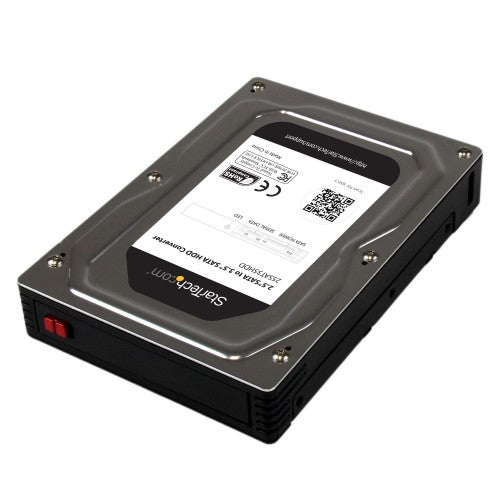

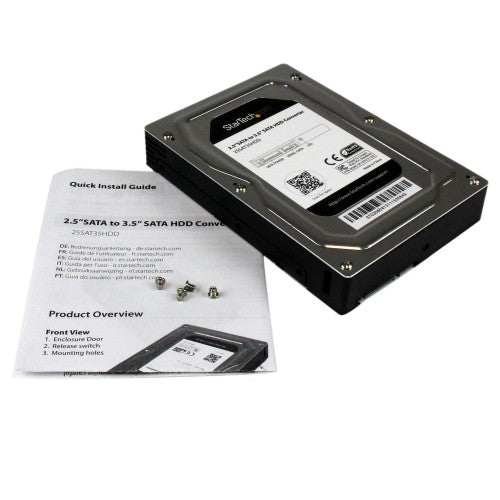

StarTech.com 2.5” to 3.5” SATA Aluminum Hard Drive Adapter Enclosure SSD / HDD Height up to 12.5mm - 2.5in to 3.5in SATA SSD/HDD Converter
Description
Turn a 2.5” SATA HDD/SSD into a 3.5” SATA Drive
The 25SAT35HDD 2.5" to 3.5" hard drive adapter enclosure turns a 2.5" SATA hard drive (HDD) or solid state drive (SSD) into a 3.5" drive.
The adapter enclosure lets you substitute a 3.5" hard drive for a 2.5" SSD/HDD in any application that would typically require a 3.5" drive, such as desktop chassis, backplane, or docking station. The enclosure has the same dimensions as a standard 3.5" hard drive, including mounting points, and SATA connector locations.
With support for drives up to 12.5mm in height, and high-capacity SATA I/II/III drives (tested up to 1TB) this HDD adapter ensures compatibility with virtually any 2.5" SATA hard drive or solid state drive.
The 25SAT35HDD is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Specifications
| Features |
|---|
| Certification |
FCC, REACH |
| HDD size |
2.5" |
| Supported storage drive heights |
12.5 mm |
| Type |
Storage drive tray |
| Size (imperial) |
3.5" |
| Number of HDDs supported |
1 |
| Data transfer rate |
6 Gbit/s |
| Product colour |
Black, Silver |
| Material |
Aluminum, Plastic |
| Technical details |
|---|
| Certification |
FCC, REACH |
| HDD size |
2.5" |
| Operating relative humidity (H-H) |
5 - 85% |
| Supported storage drive heights |
12.5 mm |
| Type |
Storage drive tray |
| Size (imperial) |
3.5" |
| Operating temperature (T-T) |
5 - 55 °C |
| Number of HDDs supported |
1 |
| Data transfer rate |
6 Gbit/s |
| Product colour |
Black, Silver |
| Material |
Aluminum, Plastic |
| Products per master (outer) case |
32 pc(s) |
| Master (outer) case width |
12.3" (313 mm) |
| Master (outer) case length |
13.5" (342 mm) |
| Master (outer) case height |
10.1" (256 mm) |
| Package width |
4.53" (115 mm) |
| Package height |
1.5" (38 mm) |
| Package depth |
6.42" (163 mm) |
| Harmonized System (HS) code |
84733080 |
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Width |
4.02" (102 mm) |
| Weight |
9.17 oz (260 g) |
| Height |
1.42" (36 mm) |
| Depth |
5.75" (146 mm) |
| Packaging data |
|---|
| Package weight |
9.17 oz (260 g) |
| Package width |
4.53" (115 mm) |
| Package height |
1.5" (38 mm) |
| Package depth |
6.42" (163 mm) |
| Packaging content |
|---|
| Screws included |
Yes |
| Manual |
Yes |
| Cables included |
SATA |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
5 - 85% |
| Storage temperature (T-T) |
5 - 55 °C |
| Operating temperature (T-T) |
5 - 55 °C |
| Logistics data |
|---|
| Products per master (outer) case |
32 pc(s) |
| Master (outer) case width |
12.3" (313 mm) |
| Master (outer) case length |
13.5" (342 mm) |
| Master (outer) case height |
10.1" (256 mm) |
| Harmonized System (HS) code |
84733080 |
