900W, NEMA 5-15R, 4ms, 1840 Joules, RJ-45, 21953g, Black
Description

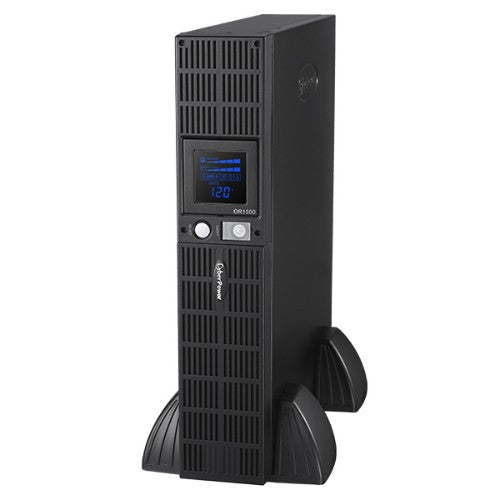

The CyberPower Smart App Intelligent LCD OR1500LCDRT2U uninterruptible power supply (UPS) is designed to protect office servers, corporate and departmental networks, and network-based appliances such as internetworking hardware, telecom equipment and high-end workstations. Its automatic voltage regulation (AVR) technology delivers a consistent and clean AC power, protecting connected equipment and preventing costly business interruptions.

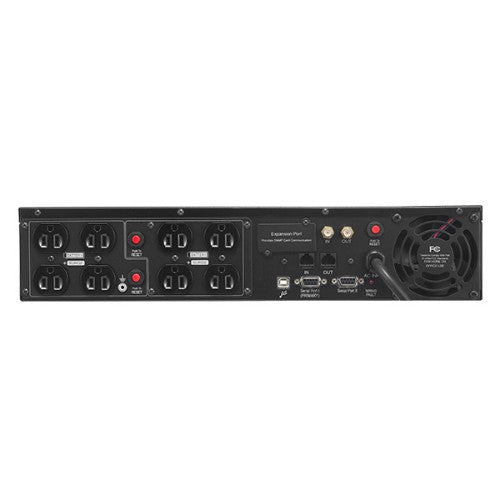

The OR1500LCDRT2U has a capacity of 1500VA/900Watts, eight (8) battery and surge protected NEMA 5-15R receptacles. This UPS has four (4) maintenance-free, user-replaceable 12V/7Ah batteries. The UPS offers options for connectivity via one (1) HID USB, two (2) DB9 serial and a SNMP card slot (optional RMCARD202 & RMCARD203). Protection for phone/network (RJ11/RJ45) and cable/coax (RG6) is included. EMI/RFI filters increase the immunity of the load to noise disturbances. Its design allows it to be either freestanding or rack-mounted (2U). The rotatable front LCD panel displays all major UPS vitals for ease of use.
The OR1500LCDRT2U UPS system is ENERGY STAR® qualified with patented GreenPower UPS™ Bypass circuitry to save on energy costs by reducing energy consumption and heat buildup.
This UPS unit incorporates microprocessor-based digital control and includes PowerPanel® Business Edition providing the user unsurpassed flexibility and control. A Three-Year Warranty ensures that this UPS has passed our highest quality standards in design, assembly, material or workmanship and further protection is offered by a $300,000 Connected Equipment Guarantee.
Specifications
| Power |
|---|
| Output power |
900 W |
| Input operation voltage (min) |
90 V |
| Input operation voltage (max) |
140 V |
| Output operation voltage (max) |
120 V |
| Surge energy rating |
1840 J |
| Output power capacity |
1.5 kVA |
| Input frequency |
47/63 Hz |
| Ports & interfaces |
|---|
| Cable length |
7.87" (0.2 m) |
| AC outlets quantity |
8 AC outlet(s) |
| AC outlet types |
NEMA 5–15R |
| Power plug |
NEMA 5-15P |
| Serial ports quantity |
2 |
| Modem (RJ-11) ports |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| Performance |
|---|
| UPS topology |
Line-Interactive |
| Automatic Voltage Regulation (AVR) |
Yes |
| Response time |
4 ms |
| LED indicators |
Yes |
| Surge protection |
Yes |
| Surge protection features |
Network, Telephone |
| Features |
|---|
| UPS topology |
Line-Interactive |
| Automatic Voltage Regulation (AVR) |
Yes |
| Response time |
4 ms |
| Output power |
900 W |
| Input operation voltage (min) |
90 V |
| Input operation voltage (max) |
140 V |
| Output operation voltage (max) |
120 V |
| Surge energy rating |
1840 J |
| Surge protection |
Yes |
| Surge protection features |
Network, Telephone |
| Output power capacity |
1.5 kVA |
| Input frequency |
47/63 Hz |
| Battery |
|---|
| Number of batteries supported |
4 |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Battery recharge time |
8 h |
| Typical backup time at half load |
18 min |
| Typical backup time at full load |
6 min |
| Design |
|---|
| Rack capacity |
2U |
| Form factor |
Rackmount/Tower |
| LED indicators |
Yes |
| Product colour |
Black |
| Cooling type |
Passive |
| Cable length |
7.87" (0.2 m) |
| Display type |
LCD |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 35 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Cooling |
|---|
| Cooling type |
Passive |
| Weight & dimensions |
|---|
| Weight |
48.5 lbs (22 kg) |
| Width |
17.2" (438.1 mm) |
| Height |
3.5" (88.9 mm) |
| Depth |
15.7" (400 mm) |
