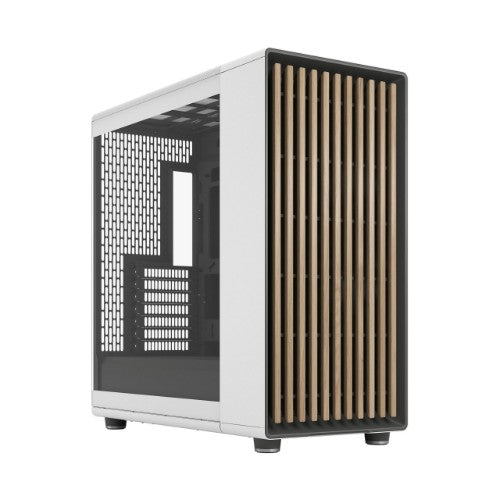

Fractal Design North XL Desktop White

ATX and mATX with rear-facing connectors/ Mini-ITX, 503 x 240 x 509 mm, 9.7kg, RC Chalk White TG Clear

Key Features

• Enhance the look of your gaming station with FSC-certified wood and alloy details
• Choose a GPU up to 413 mm, or up to 380 mm with a 420 mm front radiator
• Get a head start on your build with the three included 140 mm Aspect PWM fans

Description

North XL combines a transformative take on the gaming PC case with a generous form factor. It fuses design materials with airflow engineering, to make performance gaming a stylish addition to the living space. Inside, it boasts a spacious, flexible, and intuitive interior layout so you can make the most of your building and gaming experience. The North XL RC version offers compatibility with reverse connector motherboards for an even cleaner finish.

Natural design
- Enjoy a sophisticated looking case which integrates effortlessly into your living space
- Enhance your gaming station with an FSC-certified oak or walnut front, a faux leather tab and sleek steel or brass details

Gaming ready
- Choose a GPU up to 413 mm, or up to 380 mm with a 420 mm front radiator
- Make the most of your build with a generous layout compatible with full E-ATX motherboards (TG and Mesh versions), or ATX hidden connector motherboards (RC version)

Extended cooling
- Supports front radiators up to 420 mm and top radiators up to 360 mm
- Get a head start on your build with the three included 140 mm Aspect PWM fans

Type-C interface
Three front USB ports including one USB 3.2 Gen 2×2 Type-C with speeds up to 20Gbps

Ventilated performance
- Natural ventilation through an open front and a stylishly integrated mesh top panel
- The mesh version of the case features a full mesh side panel in addition to the top

Naturally unique

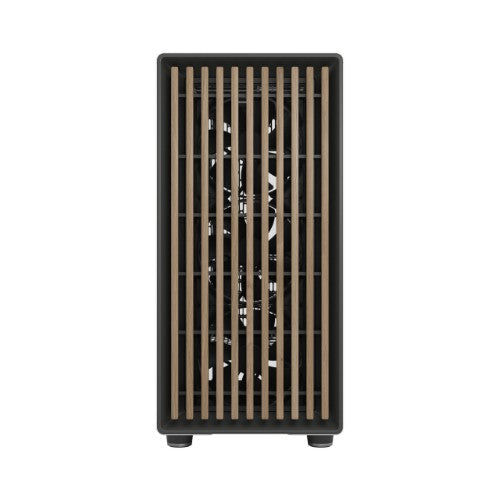

Enjoy a unique finish, with front panel bars cut from FSC-certified oak or walnut

Easy access
Remove the side panels, unclip the front and pop off the top panel using an integrated tab

Build versatility

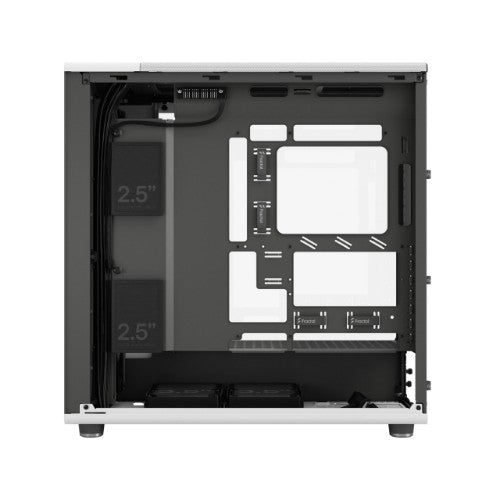

- Make the most of your building experience with an intuitive interior layout
- Designed for E-ATX / ATX / mATX / mITX motherboards (Mesh & TG versions only)
- Create a clean build with a case designed for reverse connector motherboards and with ample cable routing space. (RC version only)

Specifications

Technical details
Number of 5.25" bays	0
Number of 3.5" bays	2
Number of 2.5" bays	2
Number of internal 3.5" bays	2
Supported motherboard form factors	ATX, micro ATX, Mini-ITX
Side window	Yes
Number of HDDs supported	2
Product colour	White
Number of expansion slots	7
Maximum CPU cooler height	6.65" (16.9 cm)
Maximum graphics card length	16.3" (41.3 cm)
Maximum PSU length	11.4" (29 cm)
Type	PC
Form factor	Desktop
Indication
Illumination	No
Design
Anti-dust filter	Yes
Number of external 5.25" bays	0
Number of 5.25" bays	0
Number of 3.5" bays	2
Number of 2.5" bays	2
Number of internal 3.5" bays	2
Supported motherboard form factors	ATX, micro ATX, Mini-ITX
Side window	Yes
Illumination	No
Product colour	White
Number of expansion slots	7
Maximum CPU cooler height	6.65" (16.9 cm)
Maximum graphics card length	16.3" (41.3 cm)
Maximum PSU length	11.4" (29 cm)
Type	PC
Form factor	Desktop
Power supply
Supported power supply form factors	ATX
Power supply included	Yes
Power supply location	Bottom
Ports & interfaces
USB 3.2 Gen 2x2 Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
Combo headphone/mic port	Yes
Cooling
Front radiator installed	No
Front radiator sizes supported	360,420 mm
Rear radiator installed	No
Rear radiator sizes supported	120,140 mm
Top radiator installed	No
Top radiator sizes supported	280,360 mm
Number of front fans supported (max)	3
Front fans diameters supported	120,140 mm
Number of rear fans supported (max)	1
Rear fans diameters supported	120,140 mm
Number of top fans supported (max)	3
Top fans diameters supported	120,140,180 mm
Storage
Number of HDDs supported	2
Weight & dimensions
Width	9.45" (240 mm)
Depth	19.8" (503 mm)
Height	20" (509 mm)
Weight	21.4 lbs (9.7 kg)
