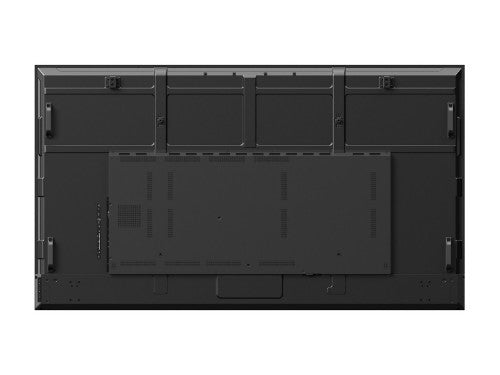

86" / 217.4cm, IPS, Direct LED, 4K 3840 x 2160, 3 x HDMI, 3 x USB 2.0, 1 x USB-C, 4G RAM, 32GB ROM, Android 13
Key Features
- Seamless connectivity – native USB-C supports Bring Your Own Device workflows, safeguarding inclusion and boosting productivity, with a single cable connection between notebook and display
- Best readability – aiding high productivity in well-lit meeting spaces, a high haze filter eliminates glare and reflections from windows and other light sources
- Quick input detection – removing potential frustration and smoothing the way to productive meeting outcomes, the display responds immediately when a device is connected
- Third-party compatibility – a flexible signage platform that supports integration with a wide range of workplace and content management systems
- New feature-ready – regular OTA Android OS updates ensure availability of the latest features and system security
Description

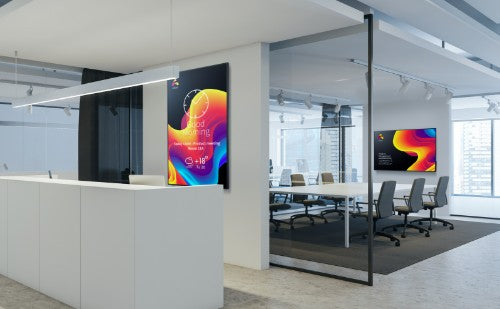

Class-leading performance and valueFor best-in-class visual performance and value, the second generation ME series commands feature-rich professional capabilities for meeting rooms and signage applications. The multi-functional Sharp MultiSync® displays with high haze panel, native USB-C connectivity, and quick input detection appeals to Enterprise users for Bring Your Own Device simplicity, supporting hybrid workflows and spontaneous meetings.

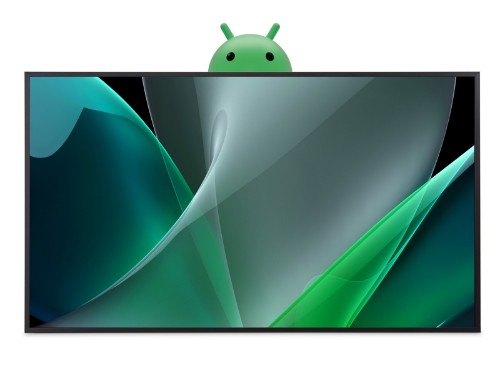

An integrated System on Chip (SoC) with Android 13 CTS-compliant Operating System brings the most up to date features and security, powering signage applications and commanding high compatibility with CMS partners, making the multi-purpose Sharp MultiSync® ME series suitable for cost sensitive retail signage applications. Experience seamless access to Android apps and install apps directly on the display using the integrated browser, without the hassle and expense of an additional external media player.
Trusted long-life reliability is assured through Japanese engineering standards and high-quality components. The Sharp MultiSync® ME series is a class-leading solution for today’s workplace challenges, bringing value and professional performance, without compromise.
Specifications
| Display |
|---|
| LED backlight |
Yes |
| Display number of colours |
1.073 billion colors |
| Panel type |
IPS |
| LED backlighting type |
Direct-LED |
| Touchscreen |
No |
| Display technology |
LED |
| Display diagonal |
86" |
| Display resolution |
3840 x 2160 pixels |
| Display brightness |
450 cd/m² |
| HD type |
4K Ultra HD |
| Response time |
8 ms |
| Contrast ratio (typical) |
1200:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Display diagonal (metric) |
85.6" (217.4 cm) |
| Vertical scan range |
23 - 76 Hz |
| Native aspect ratio |
16:9 |
| Horizontal scan range |
15 - 135 kHz |
| High Dynamic Range (HDR) technology |
High Dynamic Range (HDR) 400 |
| High Dynamic Range (HDR) supported |
Yes |
| Haze rate |
25% |
| Ports & interfaces |
|---|
| USB port |
Yes |
| Wi-Fi |
No |
| PC Audio out |
Yes |
| Ethernet LAN |
Yes |
| HDMI ports quantity |
3 |
| DVI port |
No |
| RS-232 interface |
Yes |
| USB version |
2.0 |
| USB ports quantity |
3 |
| HDMI input ports quantity |
3 |
| Audio |
|---|
| RMS rated power |
20 W |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Product design |
Digital signage flat panel |
| Placement supported |
Indoor |
| Orientation |
Horizontal/Vertical |
| Product colour |
Black |
| Panel mounting interface |
600 x 800 mm |
| VESA mounting |
Yes |
| Mounting type |
Desk/Wall |
| Screen shape |
Flat |
| Bezel colour |
Pantone (Process Black M) |
| Performance |
|---|
| Purpose |
Universal |
| Wi-Fi |
No |
| Power |
|---|
| Power consumption (typical) |
162 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Energy efficiency scale |
A to G |
| Computer system |
|---|
| Computer system |
Yes |
| Operating system installed |
Android |
| Internal memory |
4 GB |
| Internal storage capacity |
32 GB |
| Operating system version |
13 |
| Weight & dimensions |
|---|
| Display width |
76" (1931 mm) |
| Display depth |
2.68" (68 mm) |
| Display height |
43.4" (1102 mm) |
| Display weight |
92.6 lbs (42 kg) |
| Packaging data |
|---|
| Package width |
83.1" (2110 mm) |
| Package depth |
8.86" (225 mm) |
| Package height |
49.1" (1247 mm) |
| Package weight |
138.9 lbs (63 kg) |
| Remote control included |
Yes |
| Cables included |
AC |
| Packaging content |
|---|
| Remote control included |
Yes |
| Cables included |
AC |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Storage relative humidity (H-H) |
10 - 90% |
| Technical details |
|---|
| VESA mounting |
Yes |
| Panel type |
IPS |
| LED backlighting type |
Direct-LED |
| Thin Client |
|---|
| Operating system installed |
Android |
| Internal memory |
4 GB |
| Internal storage capacity |
32 GB |
| Other features |
|---|
| Panel type |
IPS |
| Wi-Fi |
No |
| PC Audio out |
Yes |
| Display technology |
LED |
| Energy efficiency scale |
A to G |
