| Processor |
|---|
| Processor generation |
Intel Core Ultra (Series 2) |
| Processor cache type |
Smart Cache |
| Processor cache |
24 MB |
| Processor model |
235T |
| Number of processors installed |
1 |
| Processor manufacturer |
Intel |
| Processor boost frequency |
5 GHz |
| Processor threads |
14 |
| Processor cores |
14 |
| Processor family |
Intel Core Ultra 5 |
| Performance cores |
6 |
| Efficient cores |
8 |
| Performance-core base frequency |
2.2 GHz |
| Efficient-core base frequency |
1.6 GHz |
| Processor base power |
35 W |
| Maximum turbo power |
114 W |
| Efficient-core Max Turbo Frequency |
4.4 GHz |
| Performance-core Max Turbo Frequency |
5 GHz |
| Neural processor unit (NPU) |
|---|
| Neural processor unit (NPU) |
Intel AI Boost |
| Sparsity support |
Yes |
| Windows Studio effects support |
Yes |
| AI software frameworks supported by NPU |
DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
| Total processor performance up to |
27 TOPs |
| NPU performance up to |
13 TOPs |
| GPU performance up to |
6 TOPs |
| Memory |
|---|
| Non-ECC |
Yes |
| Internal memory |
16 GB |
| Maximum internal memory |
64 GB |
| Memory slots |
2x SO-DIMM |
| Internal memory type |
DDR5-SDRAM |
| Storage |
|---|
| Storage media |
SSD |
| Number of storage drives installed |
1 |
| Optical drive type |
No |
| SSD interface |
PCI Express 4.0 |
| SSD capacity |
512 GB |
| Number of SSDs installed |
1 |
| Total storage capacity |
512 GB |
| SSD memory type |
TLC |
| SSD form factor |
M.2 |
| Total SSDs capacity |
512 GB |
| NVMe |
Yes |
| Graphics |
|---|
| Discrete graphics card |
No |
| On-board graphics card family |
Intel Graphics |
| On-board graphics card |
Yes |
| Discrete graphics card model |
Not available |
| On-board graphics card model |
Intel Graphics |
| On-board GPU manufacturer |
Intel |
| Optical drive |
|---|
| Optical drive type |
No |
| Network |
|---|
| Ethernet LAN |
Yes |
| Wi-Fi |
Yes |
| Bluetooth |
Yes |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax) |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Cabling technology |
10/100/1000Base-T(X) |
| WLAN controller model |
Intel Wi-Fi 6E AX211 |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Antenna type |
2x2 |
| WLAN controller manufacturer |
Intel |
| LAN controller |
Intel WGI219LM |

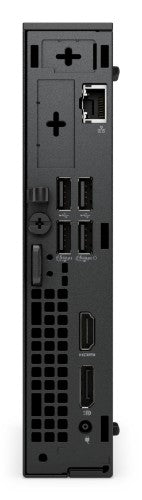

| Ports & interfaces |
|---|
| Combo headphone/mic port |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| Thunderbolt 3 ports quantity |
0 |
| HDMI version |
2.1 |
| USB 2.0 ports quantity |
2 |
| HDMI ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| DisplayPorts quantity |
1 |
| DC-in jack |
Yes |
| DisplayPort version |
1.4a |
| Number of rear USB ports |
4 |
| Number of front USB ports |
2 |
| Number of front audio ports |
1 |
| Technical details |
|---|
| Cable lock slot type |
Kensington |
| Product type |
Mini PC |
| Trusted Platform Module (TPM) |
Yes |
| Product colour |
Black |
| Chassis type |
Micro PC |
| Audio system |
High Definition Audio |
| Placement supported |
Horizontal/Vertical |
| Cable lock slot |
Yes |
| Motherboard chipset |
Intel Q870 |
| Sustainability certificates |
ENERGY STAR, EPEAT Climate +, EPEAT Gold |
| Design |
|---|
| Cable lock slot type |
Kensington |
| Product colour |
Black |
| Chassis type |
Micro PC |
| Placement supported |
Horizontal/Vertical |
| Cable lock slot |
Yes |
| Performance |
|---|
| Audio chip |
Realtek ALC3204 |
| Market positioning |
Business |
| Product type |
Mini PC |
| Trusted Platform Module (TPM) |
Yes |
| Audio system |
High Definition Audio |
| Motherboard chipset |
Intel Q870 |
| Trusted Platform Module (TPM) version |
2.0 |
| Software |
|---|
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 11 Pro |
| Power |
|---|
| Power supply input frequency |
50 / 60 Hz |
| Power supply input voltage |
100 - 240 V |
| Power supply |
180 W |
| Operational conditions |
|---|
| Operating altitude |
-598.4 - 120000" (-15.2 - 3048 m) |
| Storage temperature (T-T) |
-40 - 65 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
10 - 35 °C |
| Non-operating altitude |
-598.4 - 420000" (-15.2 - 10668 m) |
| Operating vibration |
0.26 G |
| Non-operating vibration |
1.37 G |
| Operating shock |
40 G |
| Non-operating shock |
105 G |
| Sustainability |
|---|
| Sustainability certificates |
ENERGY STAR, EPEAT Climate +, EPEAT Gold |
| Weight & dimensions |
|---|
| Width |
1.42" (36 mm) |
| Depth |
7.01" (178 mm) |
| Height |
7.17" (182 mm) |
| Weight |
2.56 lbs (1.16 kg) |
| Packaging content |
|---|
| Mouse included |
Yes |
| Display included |
No |
| Keyboard included |
Yes |
| Mouse connectivity |
Wired |
| Keyboard connectivity |
Wired |
| Display |
|---|
| Display included |
No |
| Other features |
|---|
| Trusted Platform Module (TPM) |
Yes |
| On-board graphics card |
Yes |
| Processor manufacturer |
Intel |
