Kensington K34040WW laptop dock/port replicator Wired USB 3.2 Gen 2 (3.1 Gen 2) Type-C Black

UH1510P EQ USB-C 5Gbps Triple Video Driverless Mobile Dock – 85W Pass-Through Power – DP/HDMI

Key Features

• Mobile support for up to Triple 1080p @ 60Hz, Dual 4K @ 60Hz for Windows devices, and Single 4K @ 60Hz for both Windows and MacBook devices.
• Supports Thunderbolt™ 4, USB4®, and USB-C® Alt Mode devices running Windows 10 or later, macOS 11 or later, iPadOS 13 or later, and Samsung DeX®.
• No need to download, install, or update software — an ideal USB-C® plug-and-play solution.
• Uses the laptop’s USB-C® power adapter, or the laptop’s battery when traveling – eliminating the need for an additional power brick.
• 11-in-1 design with 5 USB ports allows users to work more efficiently and connect a variety of accessories.
• Compact enough to easily fit into a travel backpack or laptop carrying case, making it ideal for the hybrid worker.
• The plastic in this product contains up to 60% post-consumer recycled (PCR) content* and it is delivered in Forest Stewardship Council (FSC®) certified packaging. *Does not include cable.
• Free DockWorks™ software ensures the best connection, performance, and security from your dock. *Available for Windows only.

Description

Professionals want triple monitor support for maximum productivity wherever they are working. Most mobile docking stations are limited to single or dual monitor configurations, which leaves desktop docks as the only connectivity option, but those come with the added inconvenience of being heavy and bulky, especially when accounting for the power brick. Offering more display options to enhance productivity at the desk and reducing the need for dongles and adapters while traveling, the UH1510P EQ USB-C® 5Gbps Triple Video Driverless Mobile Dock supports up to three external displays and allows you to travel with less weight and clutter. Offering a smart and sustainability-focused 11-in-1 design, it uses your laptop’s USB-C® power adapter or battery for charging to eliminate an additional power brick and provides plenty of data ports so you can streamline the movement of files without the need for additional adapters or dongles.

Triple Video for Windows
Extend the visual productivity of your mobile workstation to support up to Triple 1080p @ 60Hz, Dual 4K @ 60Hz for Windows devices, and Single 4K @ 60Hz for both Windows and MacBook devices.

Universal Compatibility
Supports USB-C® based devices (Thunderbolt™ 4, USB4®, and USB-C® Alt Mode) running Windows 10 or later, macOS 11 or later, iPadOS 13 or later, and Samsung DeX®.

USB-C® Driverless Solution
No need to download, install, or update software — an ideal USB-C® plug-and-play solution.

Up to 85W Power Pass-Through

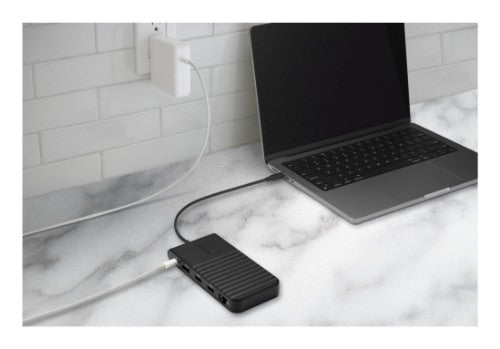

Plug your laptop’s USB-C® power adapter (85W or greater) into the dock for pass-through power to the laptop, or power the dock and connected devices using the laptop’s battery when traveling. Optional 100W Power Adapter sold separately (K33821NA) .

11-in-1 Design with 5 USB Ports

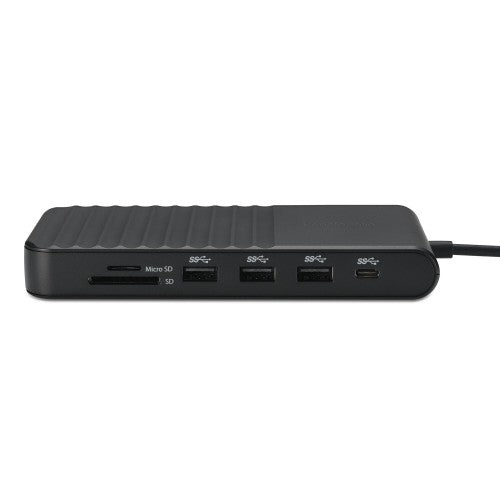

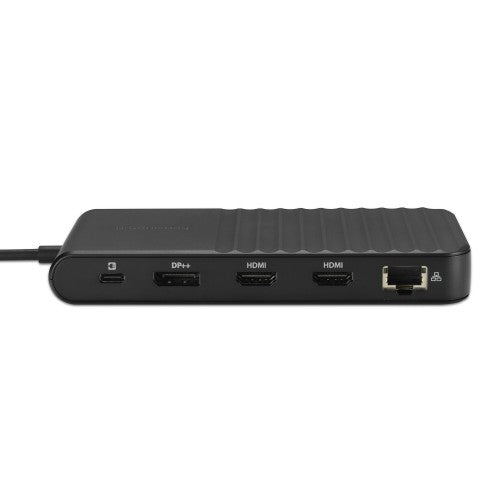

Optimize peripheral connectivity with 3 x USB-A 3.2 Gen1 ports, 2 x USB-C® ports (one for power-pass through and one for device charging), UHS-I SD3.0 Micro and SD card slots, 2 x HDMI® and 1 x DP video connections, and 1 x Gigabit Ethernet port.

Sleek, Compact Design

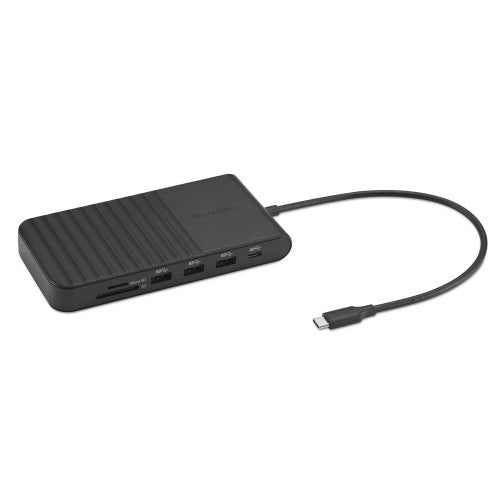

Easily fits into your travel backpack or carrying case for productivity on the go. Includes a 6.7” (17cm) USB-C® cable for connecting to your host device.

Sustainability Attributes
The plastic in this product contains up to 60% post-consumer recycled (PCR) content* and it is delivered in Forest Stewardship Council (FSC®) certified packaging. *Does not include cable.

Specifications

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	2
HDMI version	2.0
DisplayPorts quantity	1
Microphone in	No
Headphone outputs	0
Connectivity technology	Wired
USB Power Delivery (USB PD)	Yes
USB Power Delivery revision	3.0
USB Power Delivery up to	85 W
DisplayPort version	1.4
HDCP version	2.3
HDCP	Yes
USB 2.0 Type-C ports quantity	1
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Performance
Maximum digital resolution	3840 x 2160 pixels
Number of displays supported	3
Country of origin	China
Product colour	Black
Card reader integrated	Yes
Plug and Play	Yes
Compatible memory cards	MicroSD (TransFlash), SD
HD type	4K Ultra HD
Housing material	Polycarbonate (PC)
Technical details
Product colour	Black
Plug and Play	Yes
Compliance certificates	CB, CE, RCM, RoHS, UKCA, VCCI
Products per master (outer) case	10 pc(s)
Storage
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), SD
Power
Power source type	USB
USB cable length	6.69" (0.17 m)
Software
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Mac operating systems supported	Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia
Other operating systems supported	iPadOS
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-25 - 70 °C
Operating relative humidity (H-H)	0 - 85%
Weight & dimensions
Weight	5.43 oz (154 g)
Width	5.91" (150 mm)
Depth	2.8" (71 mm)
Height	0.827" (21 mm)
Package weight	6.35 oz (180 g)
Package width	7.09" (180 mm)
Package depth	5.12" (130 mm)
Package height	1.38" (35 mm)
Design
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Mac operating systems supported	Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia
Country of origin	China
Product colour	Black
Packaging data
Package weight	6.35 oz (180 g)
Package width	7.09" (180 mm)
Package depth	5.12" (130 mm)
Package height	1.38" (35 mm)
Packaging content
Quick start guide	Yes
Warranty card	Yes
Logistics data
Products per master (outer) case	10 pc(s)
